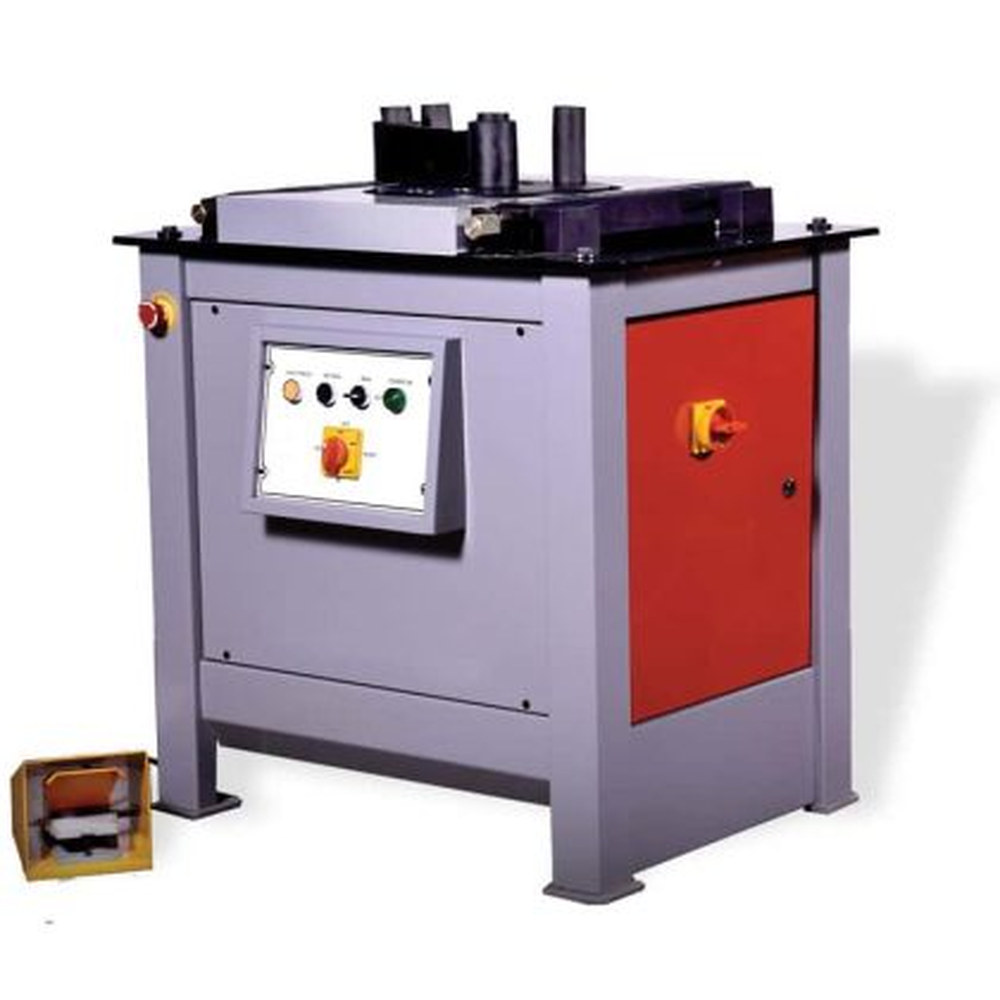

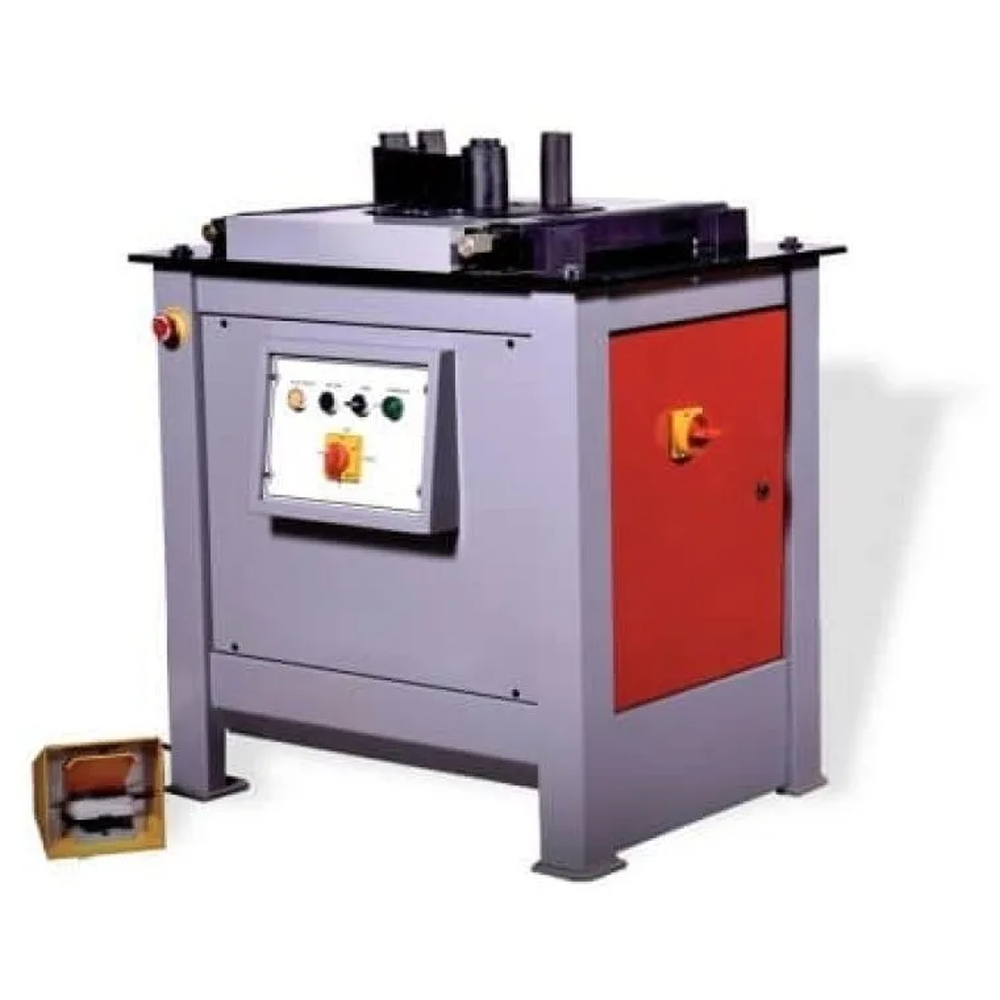

Sigma Series DBM-32P Production Rebar Bender

Mfr.: BN Products
Item #: I077065
Mfr. #: DBM-32P
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $15,531.75
i h h

Description

The Sigma Series Professional DBM-32P is a heavy-duty production rebar bender designed for high-capacity, in-shop reinforcement bar shaping. Capable of handling up to #10 (32mm) grade 60 rebar, this tool features an advanced programmable motor and high-quality planetary gears for precise, repetitive bending tasks. Its robust steel frame and powder-coated finish ensure maximum durability and longevity in demanding industrial environments.
  • High-capacity bending for up to #10 (32mm) Grade 60 rebar
  • Bi-directional programmable bending for versatile production workflows

Features

  • Equipped with a powerful 5 hp (3.7 kW) 3-phase AC planetary gear motor for reliable heavy-duty performance.
  • Mechanical gears are manufactured from heat-treated alloy steel to withstand continuous production demands.
  • The heavy-duty steel housing is finished with an epoxy powder coating for superior resistance to wear and corrosion.
  • Versatile bending capacity allows for a single #10 bar, two #6 bars, or three #4 bars at once.

Includes

  • Sigma Series DBM-32P Production Rebar Bender
  • Standard Bending Plate
  • Electrical Wiring Instructions
Products specifications
Model Number DBM-32P
Maximum Capacity #10 (32mm) Grade 60 Rebar
Motor Power 5 hp (3.7 kW)
Electrical Requirement 240/415V 3-Phase AC, 60 Hz
Amperage 30 Amps
Bending Direction Bi-directional (Programmable)
Gear Type Planetary Gear Motor
Weight 992 lbs (450 kg)
Dimensions 29.5 inch x 36.2 inch x 33.5 inch
Frame Material Powder-Coated Steel
Product Series Sigma Series Professional
*
*
*
