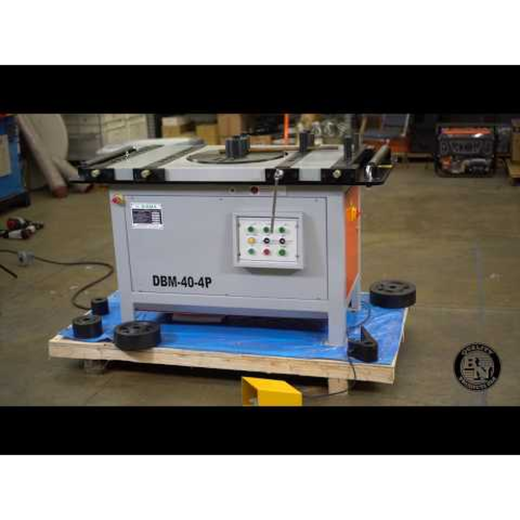

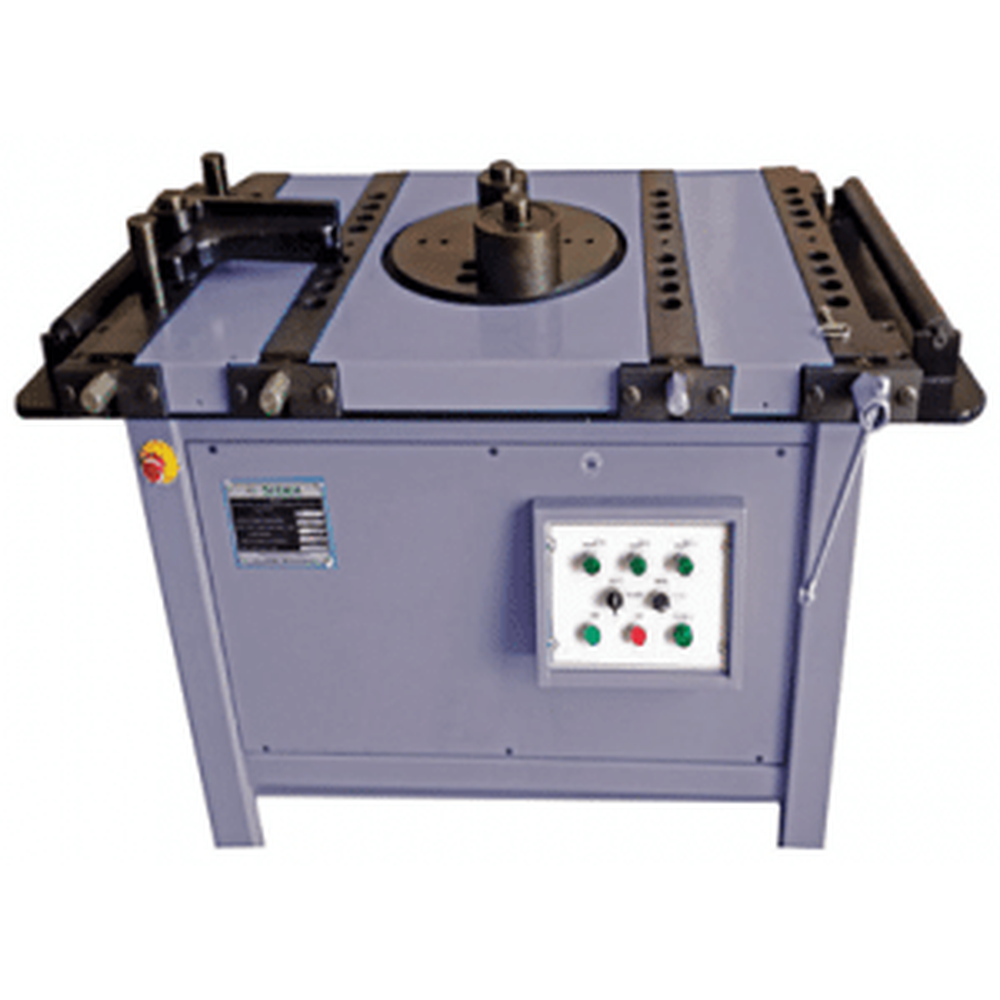

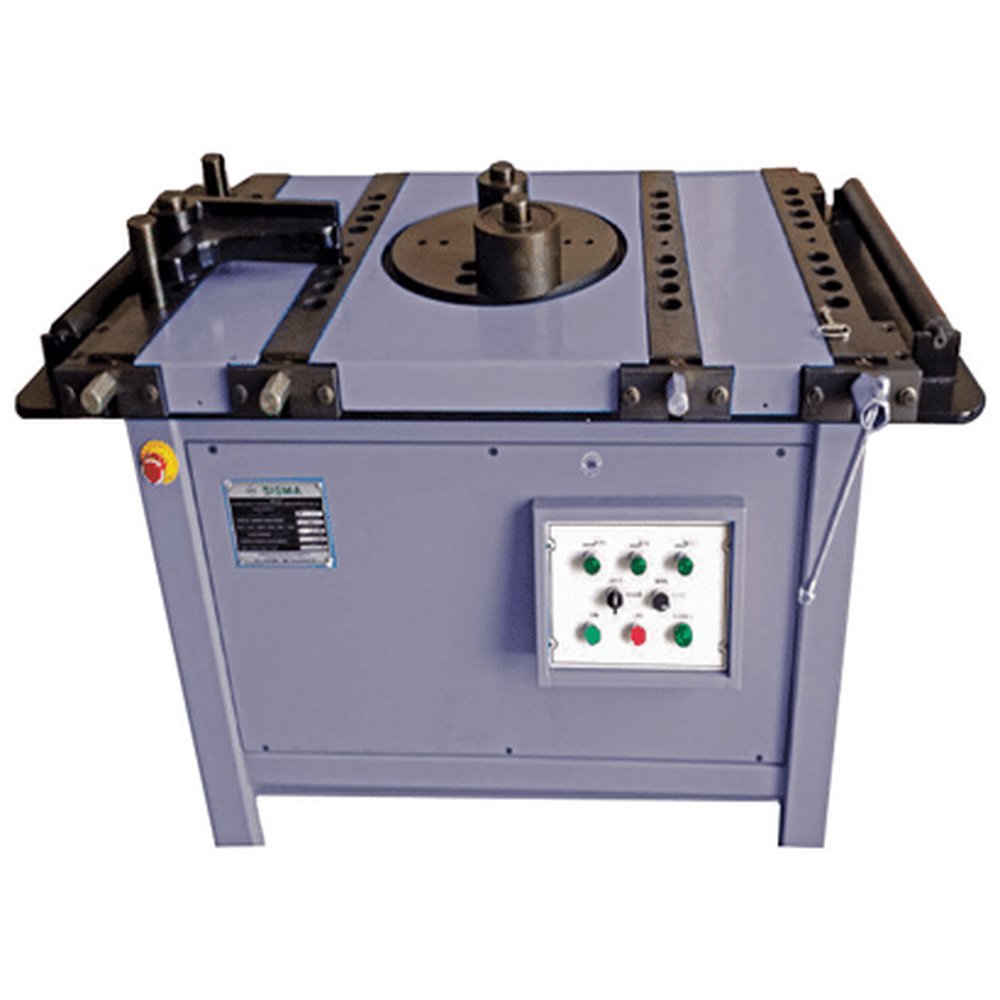

Sigma Series Professional DBM-40P Production Rebar Bender

Mfr.: BN Products
Item #: I077066
Mfr. #: DBM-40P
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $19,350.82
i h h

Description

The Sigma Series Professional DBM-40P is a heavy-duty production rebar bender designed to accurately shape reinforcement bars up to #11 (40mm) Grade 60 rebar. This in-shop workhorse features high-quality heat-treated alloy steel gears and a programmable motor that allows for precision bending in both directions. Built for long-term durability, the unit is encased in a powder-coated steel frame and housing, making it ideal for high-volume fabrication environments.
  • Heavy-Duty Capacity: Bends up to #11 (40mm) Grade 60 rebar.
  • Dual-Direction Bending: Programmable for both left and right rotations.
  • Durability: Powder-coated exterior and heat-treated mechanical gears.

Features

  • Advanced planetary gear motor designed for heavy-duty production demands.
  • Three-button programmable interface (P1, P2, P3) for preset angle selection.
  • Rotating center table with 72-hole perimeter for 5-degree increment adjustments.
  • Foot pedal control included for convenient hands-free operation.

Includes

  • Foot Pedal for Operation
  • 7-Piece Roller Set (60mm to 256mm)
  • Stirrup Pin and 5 Standard Pins
  • 6 Pin-Switches and Retainer
  • Cabinet Key
Products specifications
Max Capacity #11 (40mm) Grade 60 Rebar
Motor 7.5 hp (5.5 kW)
Power Supply 240/415V 3-Phase AC
Dimensions 29.5 inch x 48.43 inch x 33.46 inch
Weight 1300 lbs (590 kg)
Gear Motor Type Planetary Gear Motor
Rotation Speed 1400 RPM
Finish Powder-Coated Steel
*
*
*
