  • Sika Armatec 110 EpoCem - Breathable, long pot life bonding agent and anti-corrosion coating

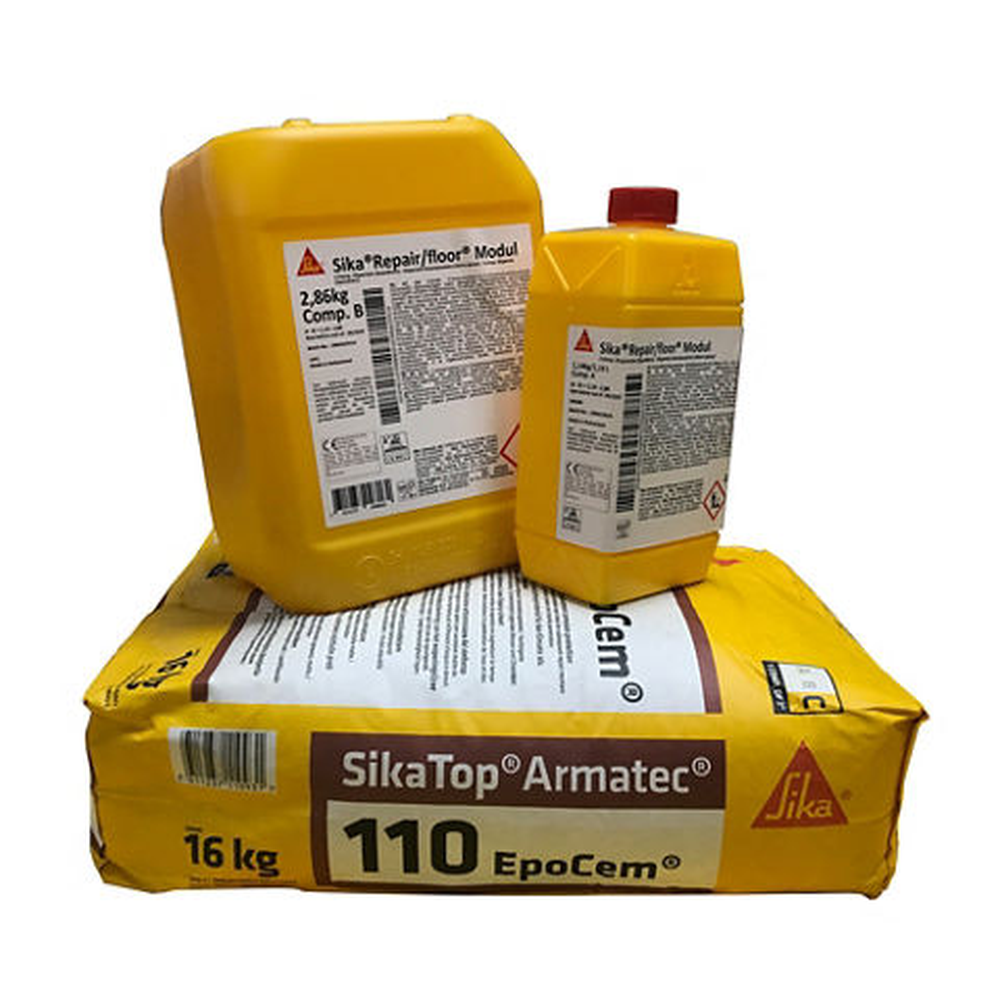

Sika Armatec 110 EpoCem - Breathable, long pot life bonding agent and anti-corrosion coating

Mfr.: Sika
Item #: I097404
Mfr. #: 107228
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $437.18
i h h

Description

Cementitious epoxy resin 3-component, solvent-free coating used as bonding primer and reinforcement corrosion protection. Contains EpoCem technology for improved bonding and extended open times.
  • Contains corrosion inhibitor
  • Excellent adhesion to concrete and steel
  • Long pot life (~90 minutes)
  • Non-flammable, solvent free
  • Can be brushed or spray applied

Features

  • Extended open times for repair mortars
  • Good resistance to water and chloride penetration
  • High shear strength
  • Excellent bonding bridge for cement or epoxy based repair mortars
  • High strength, unaffected by moisture when cured

Includes

  • Component A: White liquid
  • Component B: Colorless liquid
  • Component C: Gray powder

Specifications


Chemical BasePortland cement, epoxy resin, selected aggregatesShelf Life12 months from date of production
Storage ConditionsStore dry at 40-95 degF (4-35 degC)Compressive Strength (3 days)4,500 psi (31.0 MPa)
Compressive Strength (7 days)6,500 psi (44.8 MPa)Compressive Strength (28 days)8,500 psi (58.6 MPa)
Flexural Strength (28 days)1,250 psi (8.6 MPa)Splitting Tensile Strength (28 days)600 psi (4.1 MPa)
Tensile Adhesion Strength (coated)625 psi (4.3 MPa)Slant Shear Strength (wet on wet)2,800 psi (19.3 MPa)
Slant Shear Strength (24 hr open time)2,600 psi (17.9 MPa)Permeability to Water Vapor (control)7.32 x 10^-10 ft/sec
Permeability to Water Vapor (145 psi)8.92 x 10^-15 ft/secDiffusion Resistance to Water VaporH2O ~100
Permeability to CO2CO2 ~14,000Fresh Mortar Density~125 lb/ft3 (~2.0 kg/l)
Layer Thickness (bonding agent)20 milsLayer Thickness (corrosion protection)20 mils
Product Temperature65 deg-75 degF (18 deg-24 degC)Ambient Air Temperature40-95 degF (5-35 degC)
Substrate Temperature40-95 degF (5-35 degC)Pot Life~90 minutes
Coverage (bonding agent)80 ft2/gal (7.4 m2/l)Coverage (corrosion protection)40 ft2/gal (3.7 m2/l)
*
*
*
