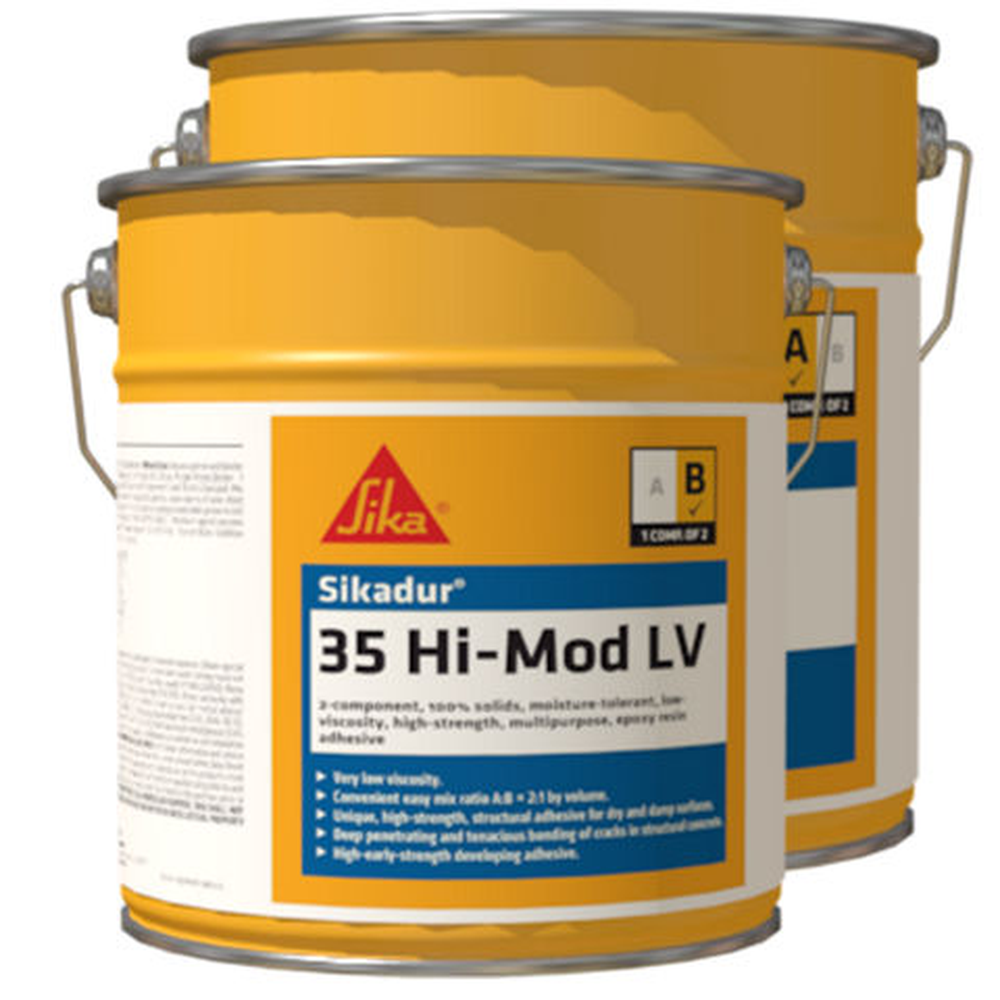

Sikadur 35, Hi-Mod LV LPL - Low viscosity, long pot life epoxy resin

Mfr.: Sika
Item #: I097422
Mfr. #: 106597
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $741.78
i h h

Description

High modulus, low viscosity, high strength epoxy grouting/sealing/binder adhesive. It is a 2-component, 100% solids, moisture-tolerant, low-viscosity, high-strength, multipurpose epoxy resin adhesive.
  • Super low viscosity
  • Convenient easy mix ratio A:B = 2:1 by volume
  • Unique, high-strength, structural adhesive for 'can't dry' surfaces
  • Deep penetrating and tenacious bonding of cracks in structural concrete
  • High-early-strength developing adhesive

Features

  • Excellent chemical resistance in flooring systems
  • Conforms to ASTM C-881, Types I, II, and IV, Grade-1, Class C* and AASHTO M-235 specifications
  • Shelf life: 2 years in original, unopened containers
  • Viscosity: Approx. 375 cps
  • Packaging: 3 gal. (11 L) units; 1 gal. (3.8 L) units; 12 fl. oz. (355 ml) units, 12/case

Specifications


Shelf Life2 yearsStorage ConditionsStore dry at 40-95 degF (4-35 degC)
ViscosityApprox. 375 cpsCompressive Strength Neat 28 days 73F13,000 psi (89.7 MPa)
Compressive Strength Neat 28 days 90F10,500 psi (72.5 MPa)Compressive Strength Neat 28 days 40F12,400 psi (85.6 MPa)
Modulus of Elasticity in Compression Neat 7 days3.2 x 10^5 psi (2,200 MPa)Modulus of Elasticity in Compression Mortar 28 da8.1 x 10^5 psi (5,600 MPa)
Flexural Strength Neat 14 day14,000 psi (96.6 MPa)Flexural Strength Mortar 14 day2,200 psi (15.2 MPa)
Modulus of Elasticity in Flexure Neat 14 days3.7 x 10^5 psi (2,600 MPa)Modulus of Elasticity in Flexure Mortar 14 days9.5 x 10^5 psi (6,500 MPa)
Tensile Strength Neat 7 days8,900 psi (61.4 MPa)Tensile Strength Mortar 7 days840 psi (5.8 MPa)
Tensile Adhesion Strength 2 days moist cure4,000 psi (27.6 MPa)Tensile Adhesion Strength 14 days moist cure2,900 psi (20.0 MPa)
Tensile Adhesion Strength 2 days dry cure2,800 psi (19.3 MPa)Shear Strength Neat 14 days5,100 psi (35.2 MPa)
Shear Strength Mortar 14 days2,300 psi (15.9 MPa)Heat deflection temperature Neat 7 day124 degF (51 degC)
Heat deflection temperature Mortar 7 day129 degF (54 degC)Water Absorption 7 days0.27%
Mixing RatioComponent A: Component B = 2:1 by volumePot LifeApprox. 25 minutes (mass of 60 grams)
Tack-Free Time at 40F14-16 hoursTack-Free Time at 73F3-3.5 hours
Tack-Free Time at 95F1.5-2 hoursCoverage1 gal. yields 231 in^3 of adhesive and grout
*
*
*
