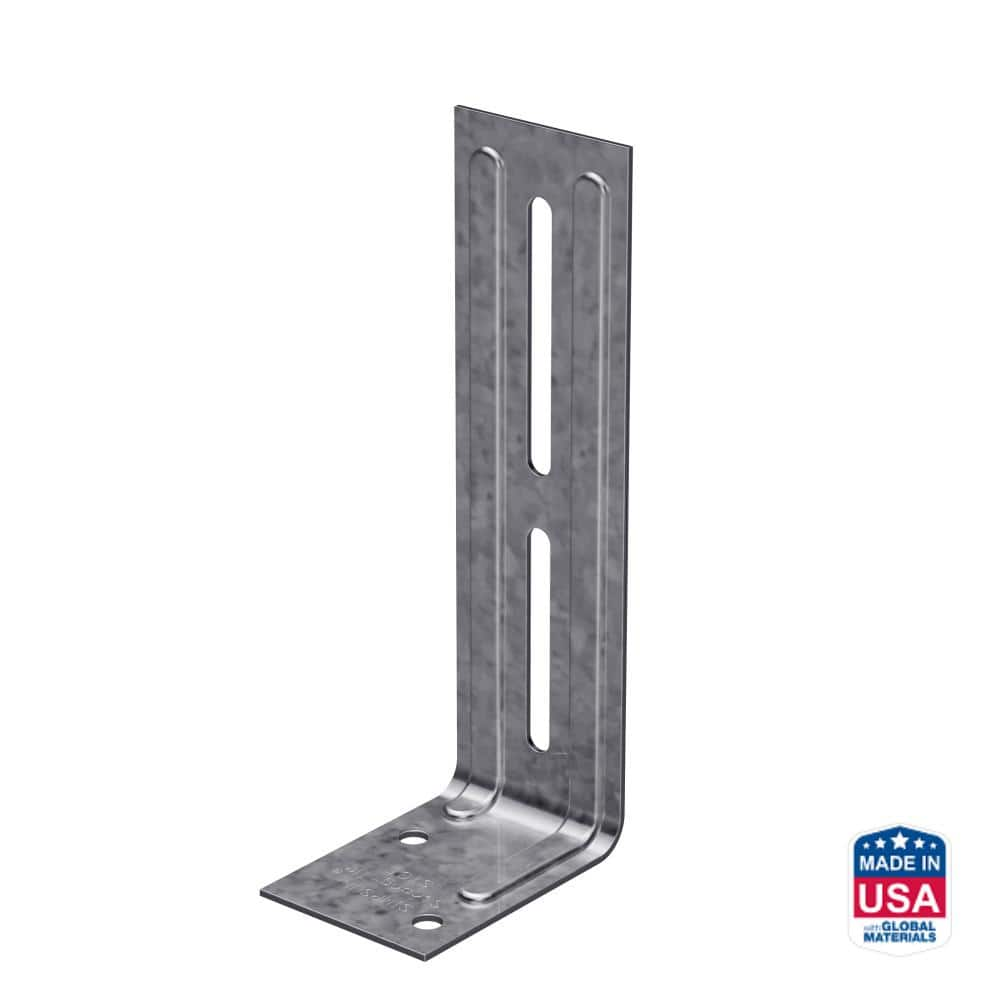

Simpson 1-1/4 X 1-3/4 X 4-1/4 Roof Truss Clip

Mfr.: Simpson Strong-Tie
Item #: I093963
Mfr. #: STCT
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $2.68
i h h

Description

The Simpson Strong-Tie STCT Roof Truss Clip is designed to provide strong and reliable connections in roof framing applications. Its innovative design features slots that allow for flexible installation, adjustability, and accommodate vertical truss chord movement under load, preventing excessive stress on the connection. This clip is ideal for applications where a truss or rafter is separated from the top plate of a nonbearing wall, ensuring proper alignment and structural integrity. Crafted from 18-gauge galvanized steel, it offers excellent corrosion resistance for durability.
  • Galvanized Steel Construction
  • Corrosion Resistant (G90 Galvanized)

Features

  • Slots in one leg allow for flexible installation and adjustability.
  • Permits vertical truss chord movement when loads are applied.

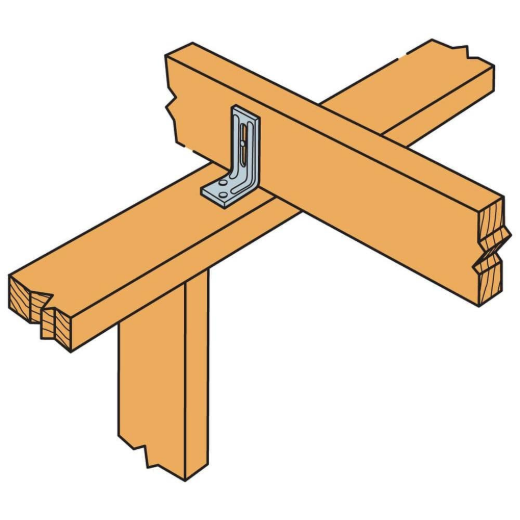

  • Designed for use where truss or rafter is separated from the top plate of a nonbearing wall.
  • Not intended for floor applications due to potential for squeaks and joist deflections.

Includes

  • 1x Simpson Strong-Tie STCT Roof Truss Clip

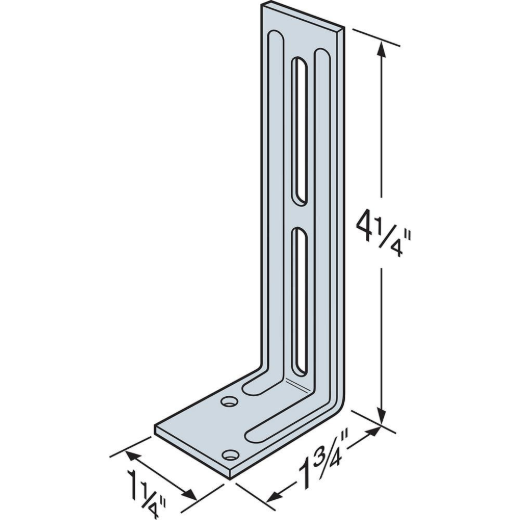

Products specifications
Width 1-1/4 inch
Height 4-1/4 inch
Depth 1-3/4 inch
Gauge 18 ga
Material Steel
Coating Galvanized (G90)
*
*
*
