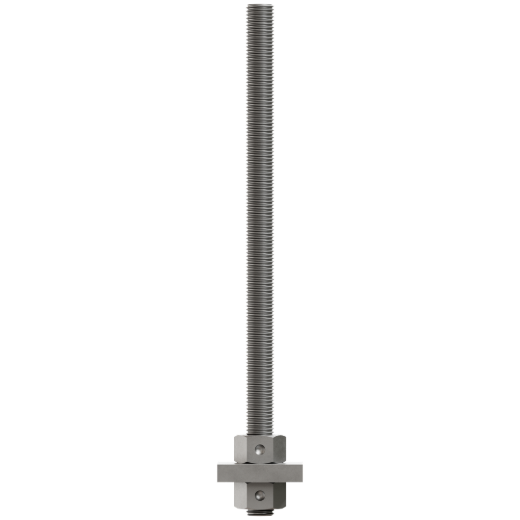

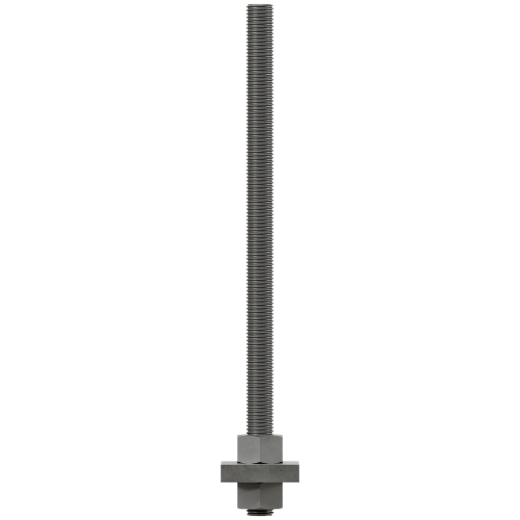

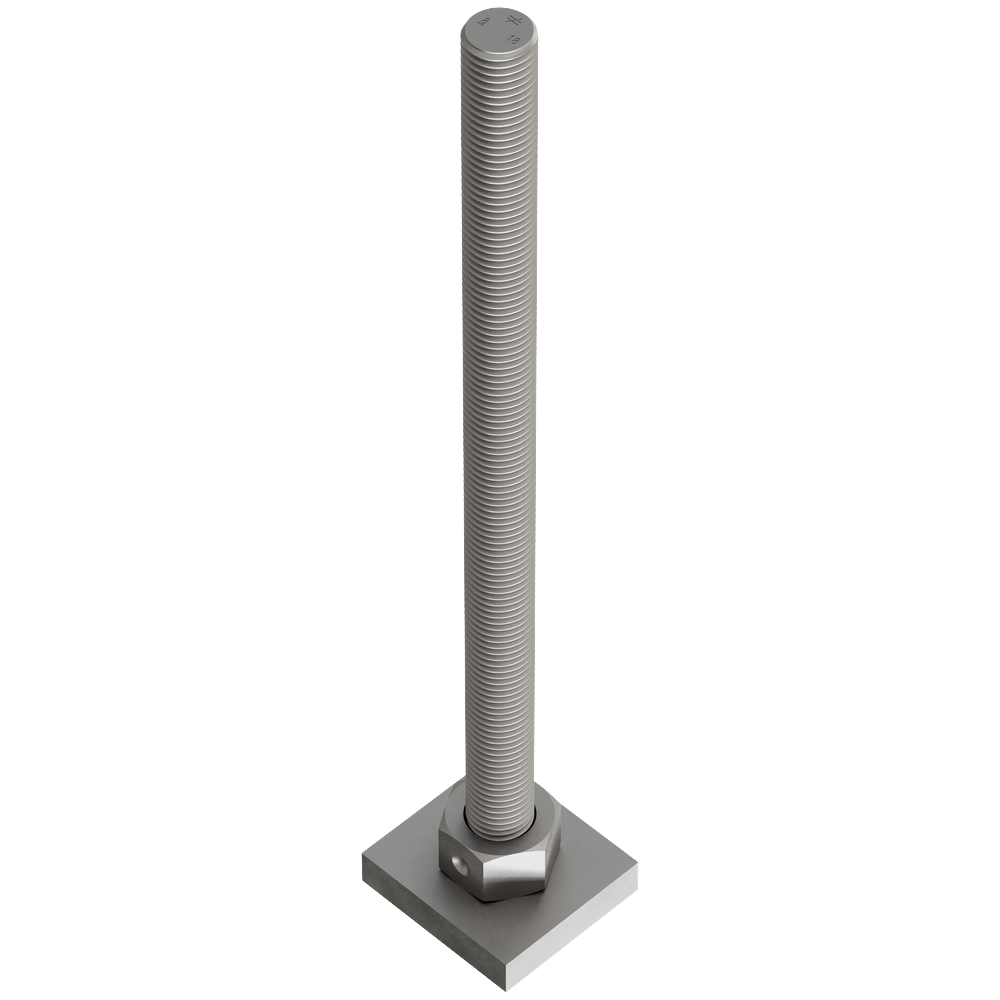

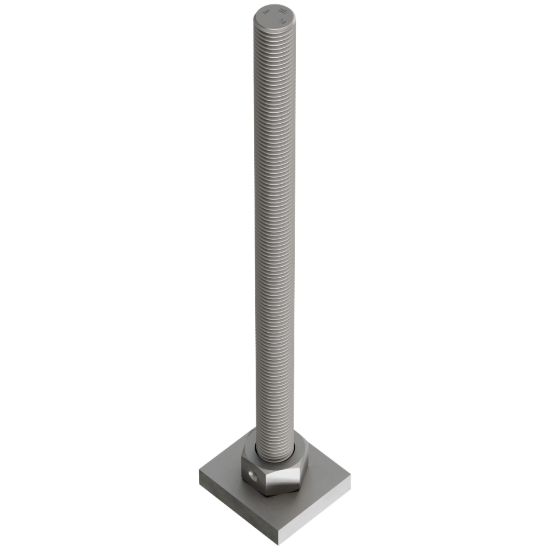

Simpson PAB 1" x 18" HDG Pre-Assembled Anchor Bolt w/ Washer

Mfr.: Simpson Strong-Tie
Item #: I093390
Mfr. #: PAB8-18-HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $94.49
i h h

Description

The PAB anchor bolt is a versatile cast-in-place anchor bolt ideal for high-tension-load applications, such as rod systems and shearwalls. It features a plate washer at the embedded end sandwiched between two fixed hex nuts.
  • 1 inch diameter, 18 inch length
  • Hot-dipped galvanized (HDG) finish
  • Pre-assembled with plate washer and hex nuts
  • Head stamp for easy identification

Features

  • Available in diameters from 1/2 inch to 1-1/4 inch and lengths from 12 inch to 36 inch in 6 inch increments
  • Available in standard and high-strength steel
  • Head stamp contains the No Equal sign, diameter designation and an 'H' on high-strength rods
  • Material: Standard Steel - ASTM F1554 Grade 36, A36 or A307; Fu = 58 ksi
  • Finish: HDG

Includes

  • 1 Pre-assembled anchor bolt with plate washer and hex nuts

Specifications


Diameter1 inchLength18 inch
FinishHDGMaterialASTM F1554 Grade 36 / A36 / A307
Tensile Strength58 ksiModel NumberPAB8-18-HDG
*
*
*
