Simpson 1" x 36" Strong-Wall High-Strength Wood Shearwall High-Strength Anchor Bolt

Mfr.: Simpson Strong-Tie
Item #: I042404
Mfr. #: WSWH-AB1X36HS
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $101.01
i h h

Description

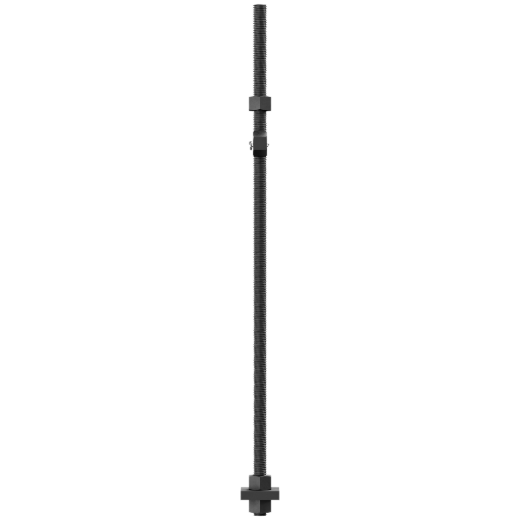

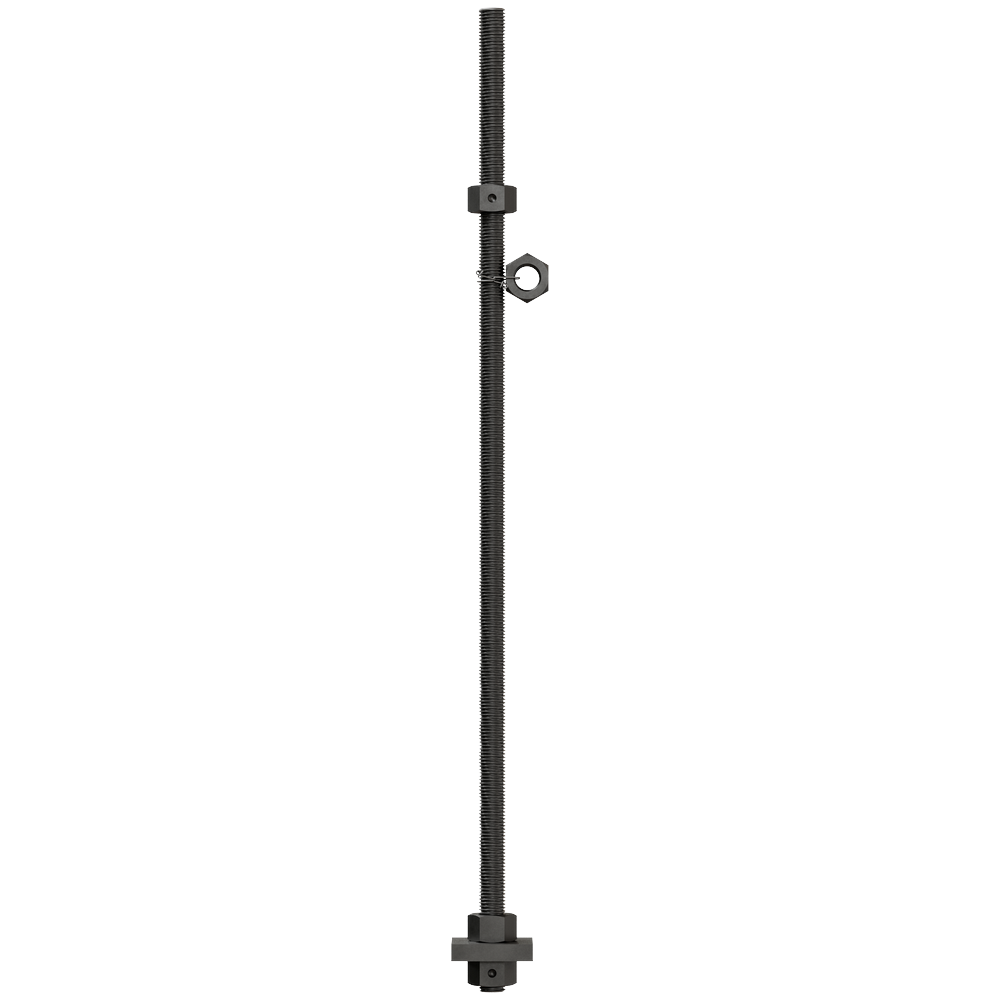

The WSWH-AB is a heavy-duty preassembled anchor bolt used to attach Strong-Wall high-strength wood shearwalls (WSWH) to concrete foundations. With a 1-in. diameter and a variety of length options, these anchor bolts offer flexibility for meeting specific project demands. A stamped head makes inspection and identification easy with a No-Equal symbol, bolt length, bolt diameter and optional 'HS' for high strength, if specified.
  • Fixed-in-place heavy hex compression nut to improve performance
  • Head stamp for easy identification and inspection
  • Supplied with extra nut for attachment to anchor template
  • Made from ASTM A193 Grade B7
  • Diameter: 1 in.
  • Compression nut at 2-1/8 in.

Features

  • Fixed-in-place heavy hex compression nut to improve performance
  • Head stamp for easy identification and inspection
  • Supplied with extra nut for attachment to anchor template
  • Made from ASTM A193 Grade B7
  • Diameter: 1 in.
  • Compression nut at 2-1/8 in.

Includes

  • Extra nut for attachment to anchor template

Specifications


Diameter1 inchMaterialASTM A193 Grade B7
Compression nut position2-1/8 inch
*
*
*
