Simpson 10 X 10 Adjustable Post Base

Mfr.: Simpson Strong-Tie
Item #: I090888
Mfr. #: ABU1010Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $178.40
i h h

Description

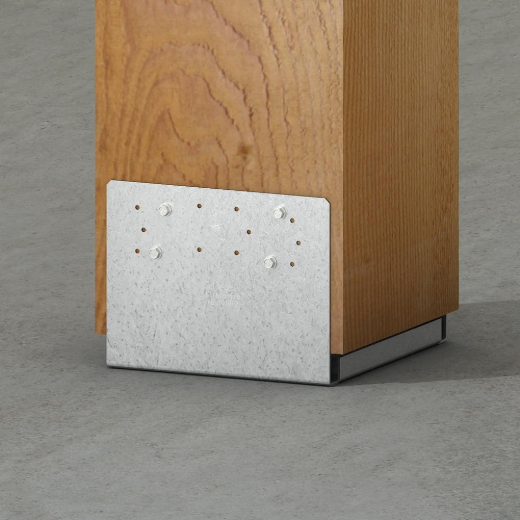

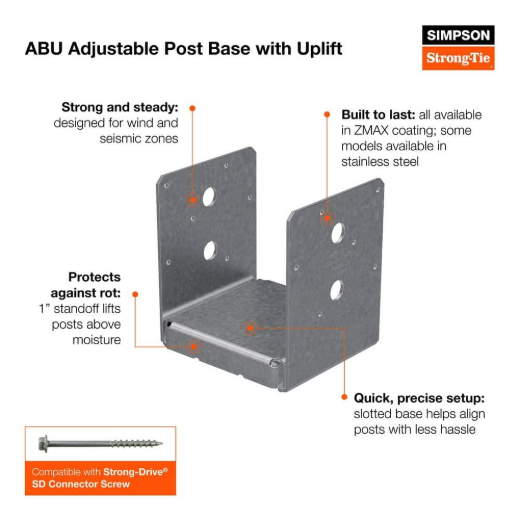

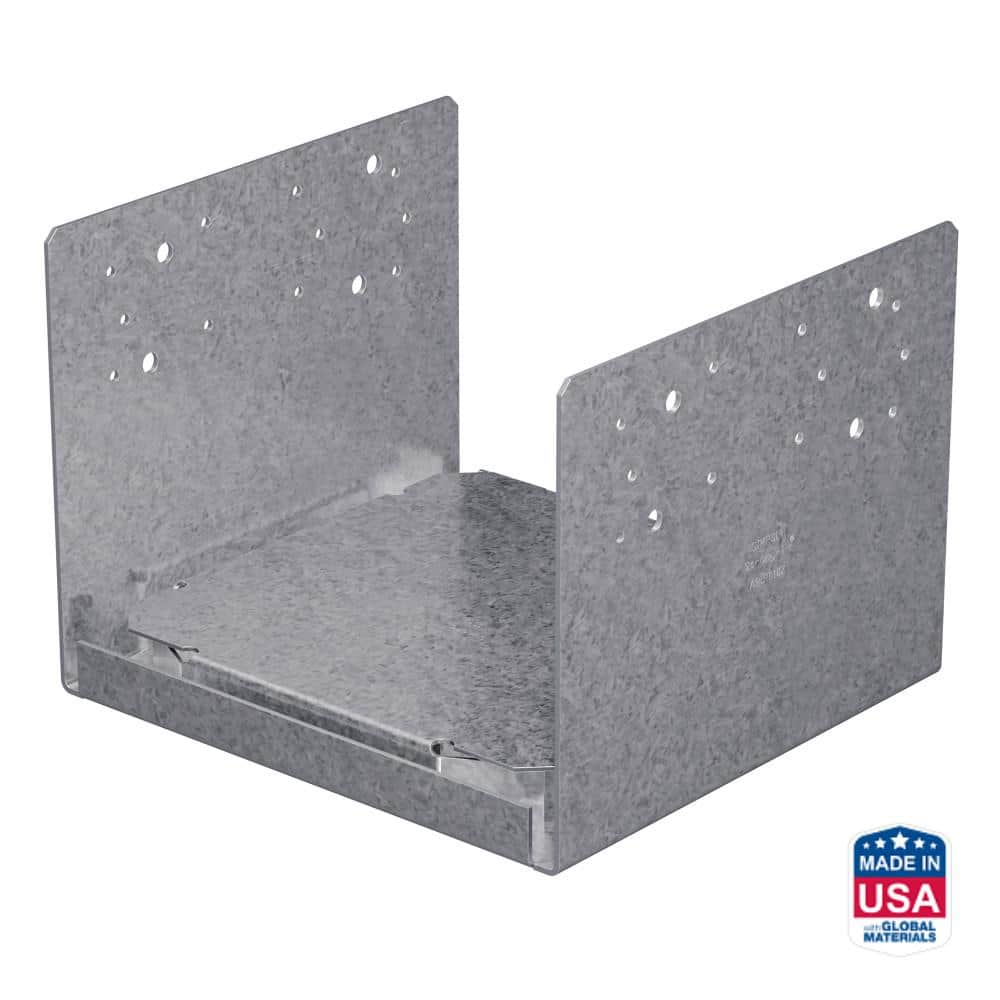

The Simpson ABU1010Z is a high-capacity adjustable post base designed to securely attach 10x10 wood posts to existing concrete foundations. It features a ZMAX galvanized finish that provides superior corrosion resistance, making it ideal for both interior and exterior construction projects. The integrated 1-inch standoff prevents rot at the post end by isolating the wood from moisture on the concrete surface. This versatile connector is engineered to provide maximum uplift and downward load performance for structural stability.
  • ZMAX Galvanized Finish
  • 1-Inch Standoff Height

Features

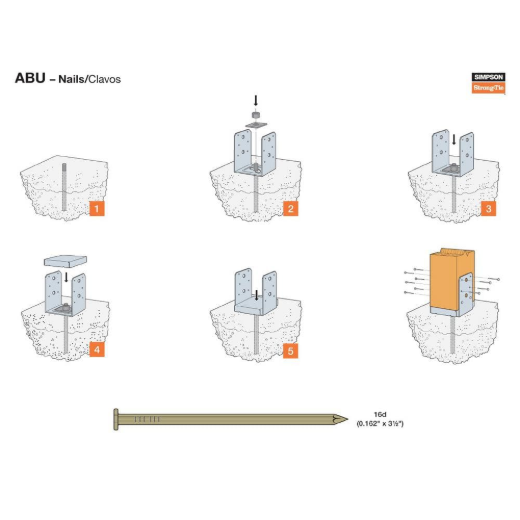

  • Slotted anchor hole allows for easy post alignment.
  • High-capacity uplift resistance for wind and seismic.
  • Complies with building codes for rot prevention.

Includes

  • Adjustable Post Base
Products specifications
Finish ZMAX
Material 14-Gauge Steel
Nominal Post Size 10x10
Uplift Load 2,270 lbs
Downward Load 32,020 lbs
Nails Required (22) 0.162 inch x 3-1/2 inch
SDS Screws Option (8) 1/4 inch x 3 inch SDS
Anchor Bolt Size (2) 5/8 inch Concrete Anchors
*
*
*
