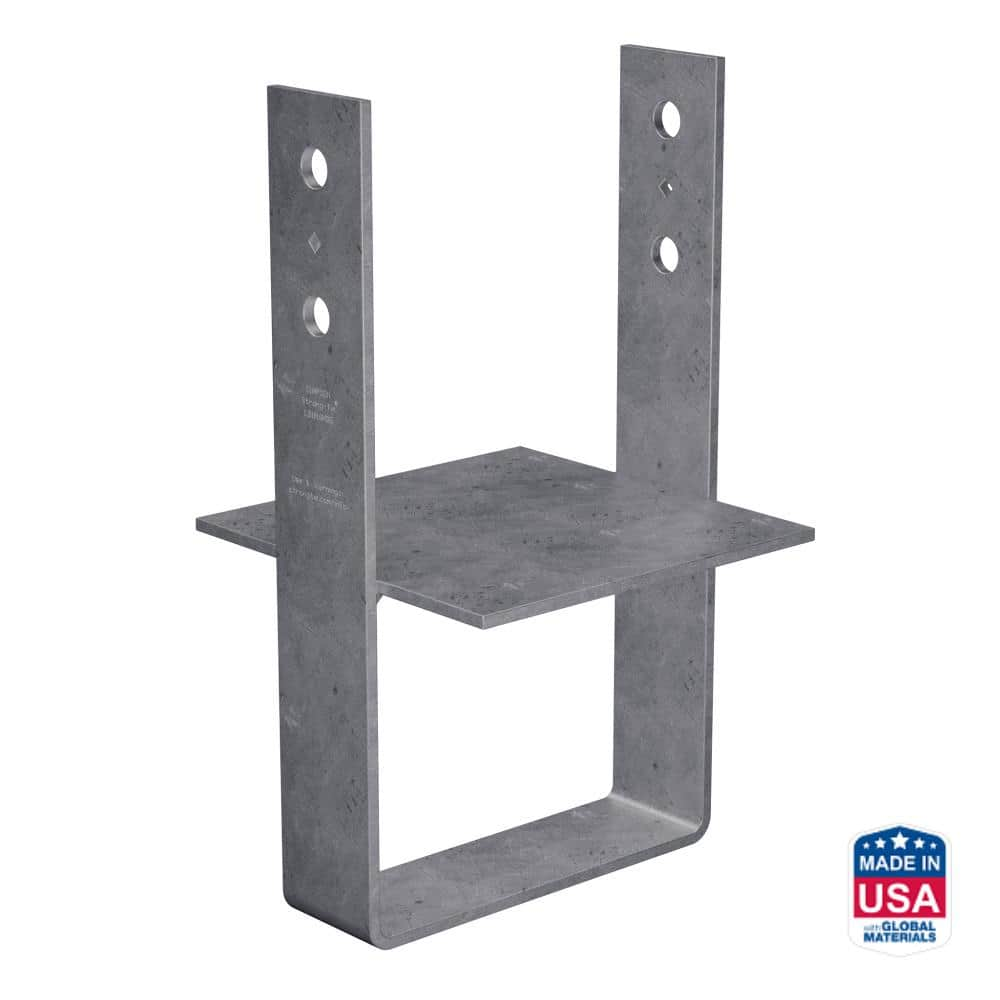

Simpson CB - 10" x 10" Column Base HDG

Mfr.: Simpson Strong-Tie
Item #: I090915
Mfr. #: CB1010HDG
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $233.33
i h h

Description

The Simpson Strong-Tie CB1010HDG is a heavy-duty column base designed to provide a secure connection between 10x10 posts and concrete foundations. This cast-in-place connector is engineered for high structural values, offering exceptional stability for large-scale timber projects. With its hot-dip galvanized finish, it provides superior corrosion resistance, making it an ideal choice for outdoor and treated-wood applications.
  • Hot-Dip Galvanized Finish
  • Increased Uplift Resistance

Features

  • Crafted from durable 3-gauge steel to ensure long-lasting structural integrity.

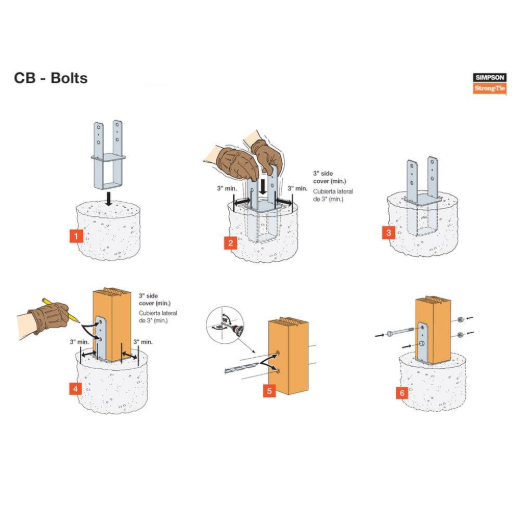

  • Designed for wet-set installation, allowing the base plate to sit flush with the concrete.
  • Bolt hole locations are engineered to meet code-required spacing for optimal capacity.

Includes

  • (1) CB1010HDG Column Base
Products specifications
Adjustability Fixed
Code Listing ICC-ES ESR-3050
Connector Type Column Base
Country of Origin Varies (subject to change)
Finish / Coating Hot-Dip Galvanized
Manufacturer's Warranty Limited Lifetime
Material Carbon Steel
Post / Member Size 10x10
Series CB
*
*
*
