Simpson 10X10 Rough Adjustable Post Base

Mfr.: Simpson Strong-Tie
Item #: I090887
Mfr. #: ABU1010RZ
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $189.81
i h h

Description

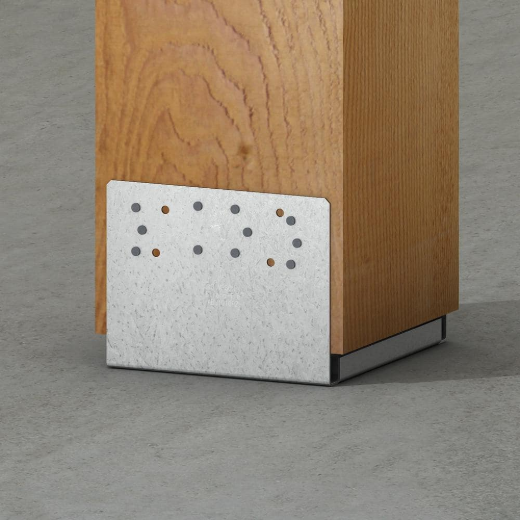

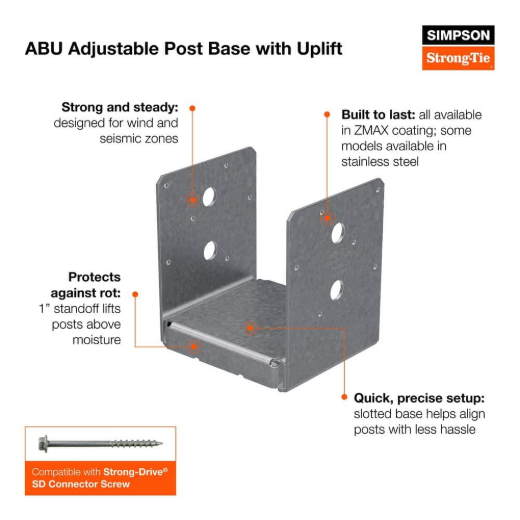

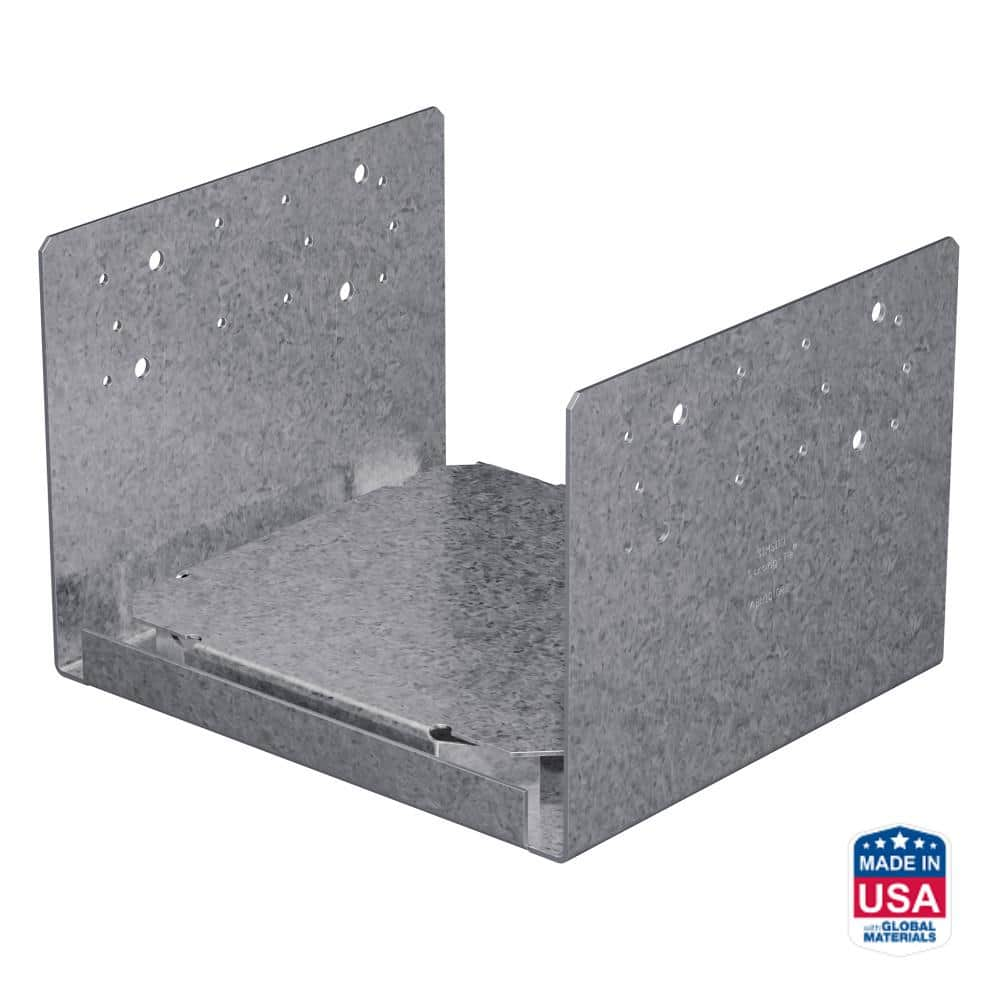

The Simpson ABU1010RZ is a high-capacity adjustable post base specifically designed for true rough-cut 10x10 lumber. This heavy-duty connector provides a robust connection between wood posts and concrete foundations, making it ideal for large-scale construction projects. It features a built-in 1-inch standoff to protect the post from moisture and rot, while the slotted base allows for precise positioning during installation. The ZMAX galvanized coating ensures superior corrosion resistance, providing long-term durability in outdoor or high-moisture environments.
  • ZMAX Galvanized Finish
  • 1-Inch Standoff Design

Features

  • Slotted anchor hole allows for flexible alignment around existing anchor bolts.
  • Engineered to provide high uplift capacity for seismic and wind load resistance.
  • Specifically sized for rough-cut 10x10 lumber measuring an actual 10 inch x 10 inch.

Includes

  • Adjustable Post Base
Products specifications
Post Size Rough Cut 10x10
Material 14-Gauge Steel
Finish ZMAX Galvanized

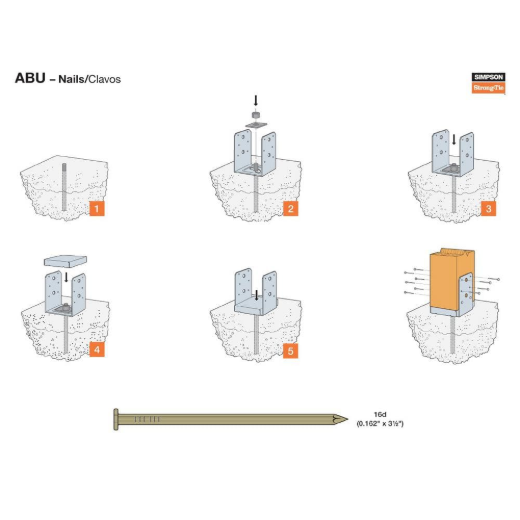

Nails Required (22) 0.162 inch x 3-1/2 inch Nails
Screws Required (8) 1/4 inch x 3 inch SDS Screws
Anchor Bolts (2) 5/8 inch Concrete Anchors
Standoff 1 Inch
*
*
*
