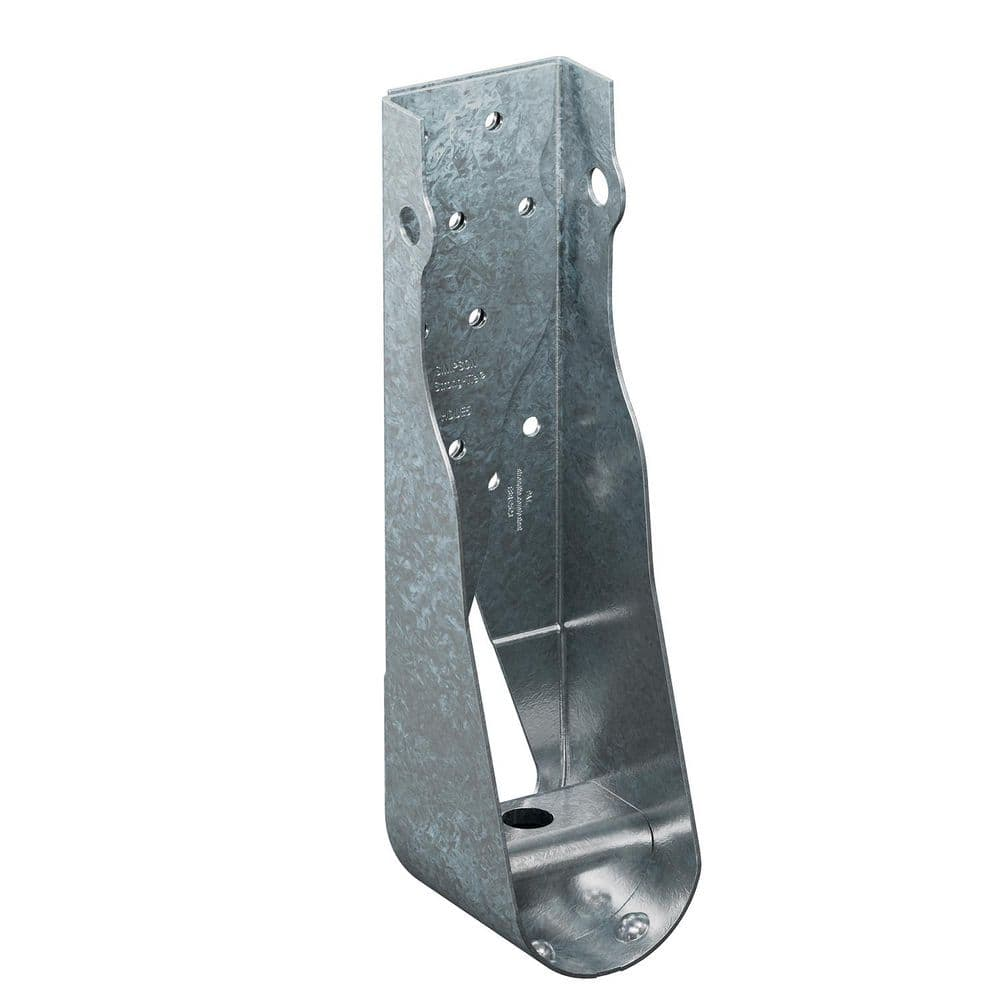

Simpson 11-5/16In Predeflected Holdown W/Screws

Mfr.: Simpson Strong-Tie
Item #: I093092
Mfr. #: HDUE5-SDS3
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $57.28
i h h

Description

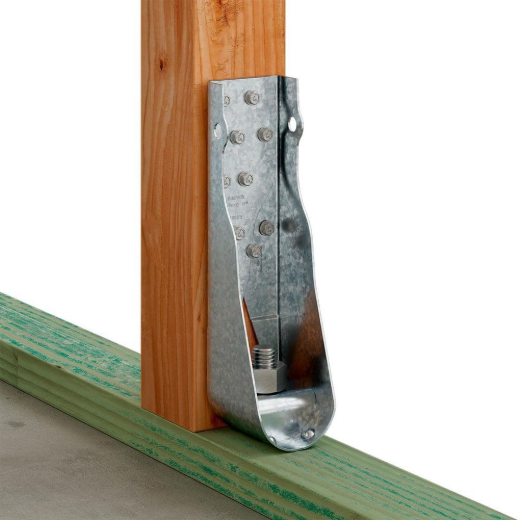

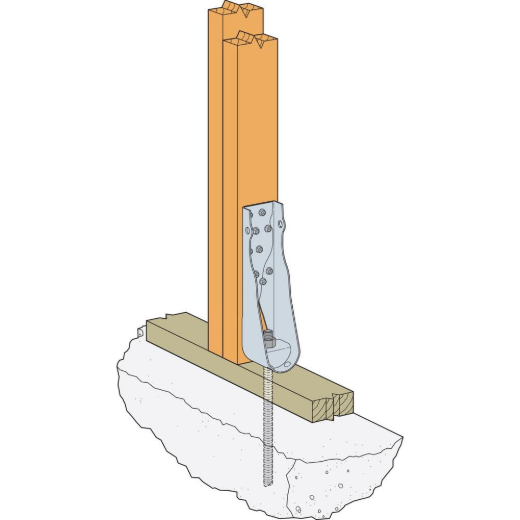

The Simpson Strong-Tie HDUE5-SDS3 is a high-capacity structural holdown designed to anchor wood shearwalls and posts to concrete foundations. It effectively transfers uplift and overturning forces, offering robust protection for structures in areas prone to high winds and seismic activity. This holdown features a pre-deflected seat to minimize deflection under load, ensuring improved structural performance and reliability. Installation is streamlined with pre-engineered Strong-Drive SDS Heavy-Duty Connector screws, making it a dependable choice for modern construction projects.
  • High Load Capacity
  • Pre-deflected Seat Design
  • Includes SDS Screws

Features

  • Angled fastening in larger models engages screws in tension for higher allowable loads with fewer fasteners.
  • Overlapping back plate increases fastener strength and shear values, helping prevent post splitting.
  • Optimized screw patterns reduce splitting at the end of the post and maximize individual fastener capacity.
  • Teardrop holes allow for higher and more even load distribution.

Includes

  • (10) 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws
  • (1) Crescent washer
Products specifications
height 11-5/16 inch
width 2-7/8 inch
base width 3-3/8 inch
material Carbon Steel
finish G90 Galvanized
thickness 14 Gauge
*
*
*
