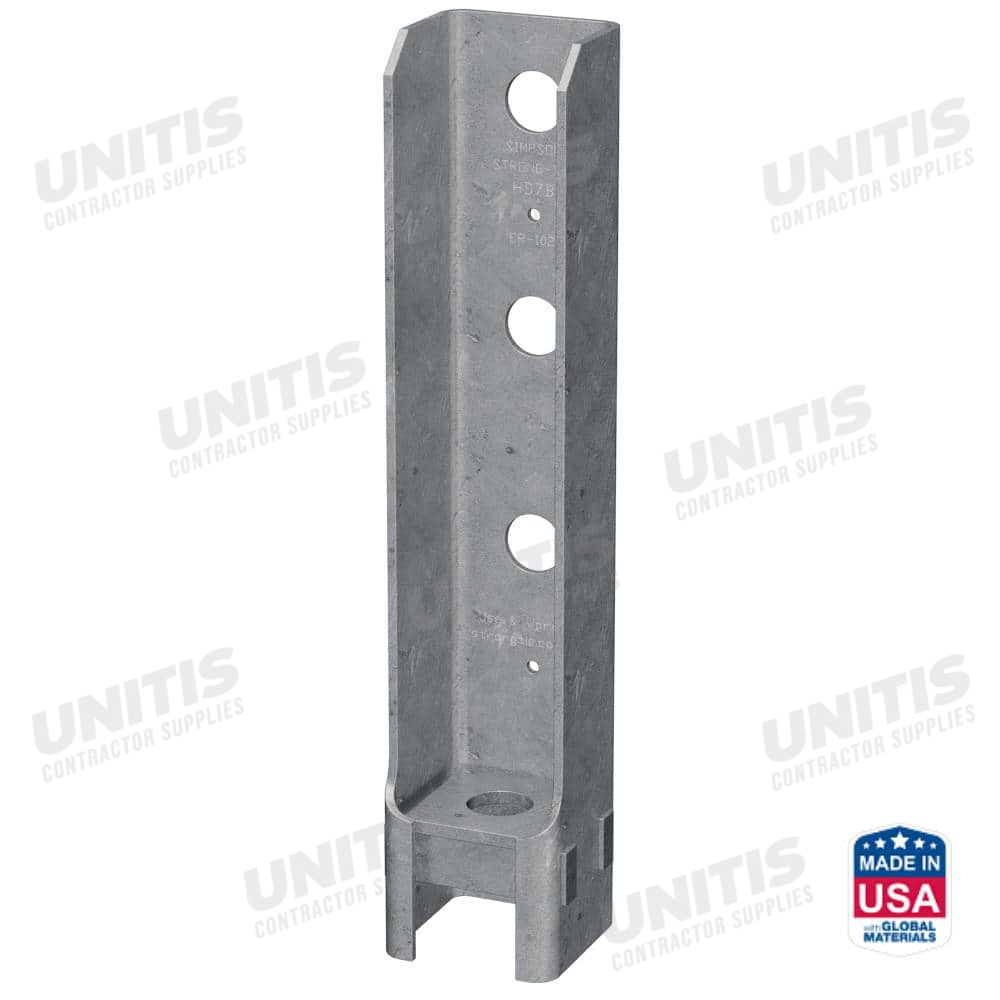

Simpson 12-3/8 inch Bolted Holdown

Mfr.: Simpson Strong-Tie
Item #: I093063
Mfr. #: HD7B
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $68.65
i h h

Description

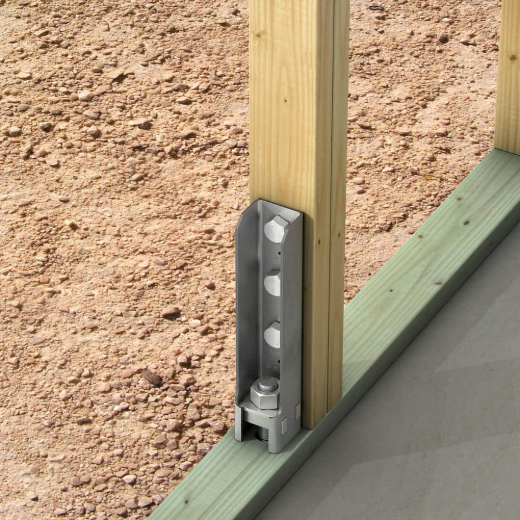

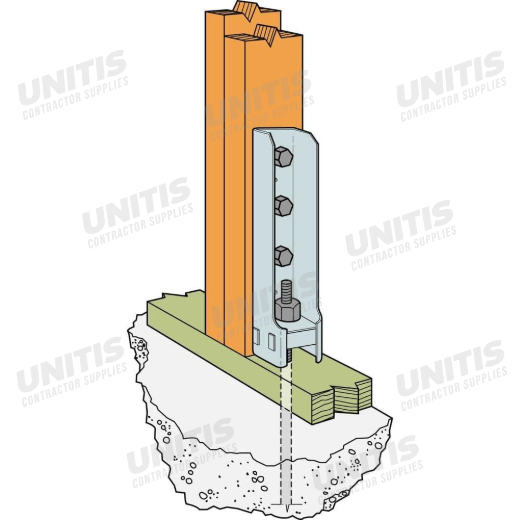

The Simpson Strong-Tie HD7B Bolted Holdown is engineered for robust performance in various wood construction applications, including intermediate-load-range shearwalls, braced-wall panels, and lateral load resistance. It offers low-deflection performance due to its unique seat design, minimizing movement under load for enhanced stability and safety. The self-jigging feature ensures code-required bolt end distances are met, making installation efficient and reliable. This holdown is suitable for both vertical and horizontal applications and can be used in back-to-back configurations when eccentricity is a concern.
  • Low-deflection performance
  • Self-jigging design
  • Suitable for back-to-back applications

Features

  • Tested in accordance with ICC-ES's AC 155 acceptance criteria.
  • Unique seat design minimizes deflection under load.
  • Ensures code-required minimum bolt end distance.
  • Approved for use in vertical and horizontal applications.
  • Durable G90 Galvanized finish for corrosion resistance.

Includes

  • 3 x 3/4 inch Machine Bolts
  • 1 x 7/8 inch Concrete Anchor
Products specifications
Finish G90 Galvanized
Height 12-3/8 inch
Fasteners required (3) 3/4 inch M. Bolts, (1) 7/8 inch Anchor
For Treated Lumber No
*
*
*
