Simpson 12-In 16-Ga Strap Tie

Mfr.: Simpson Strong-Tie
Item #: I090866
Mfr. #: ST12
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $2.16
i h h

Description

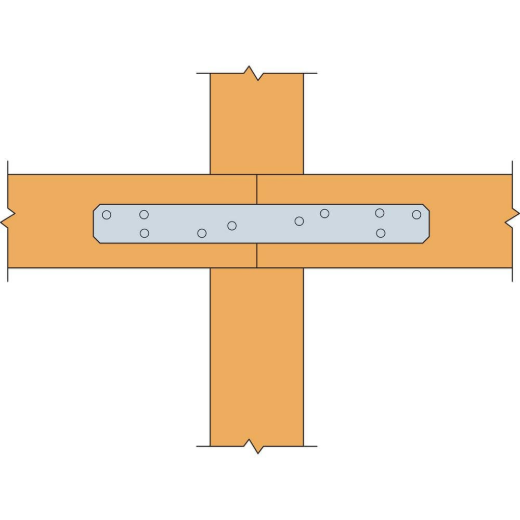

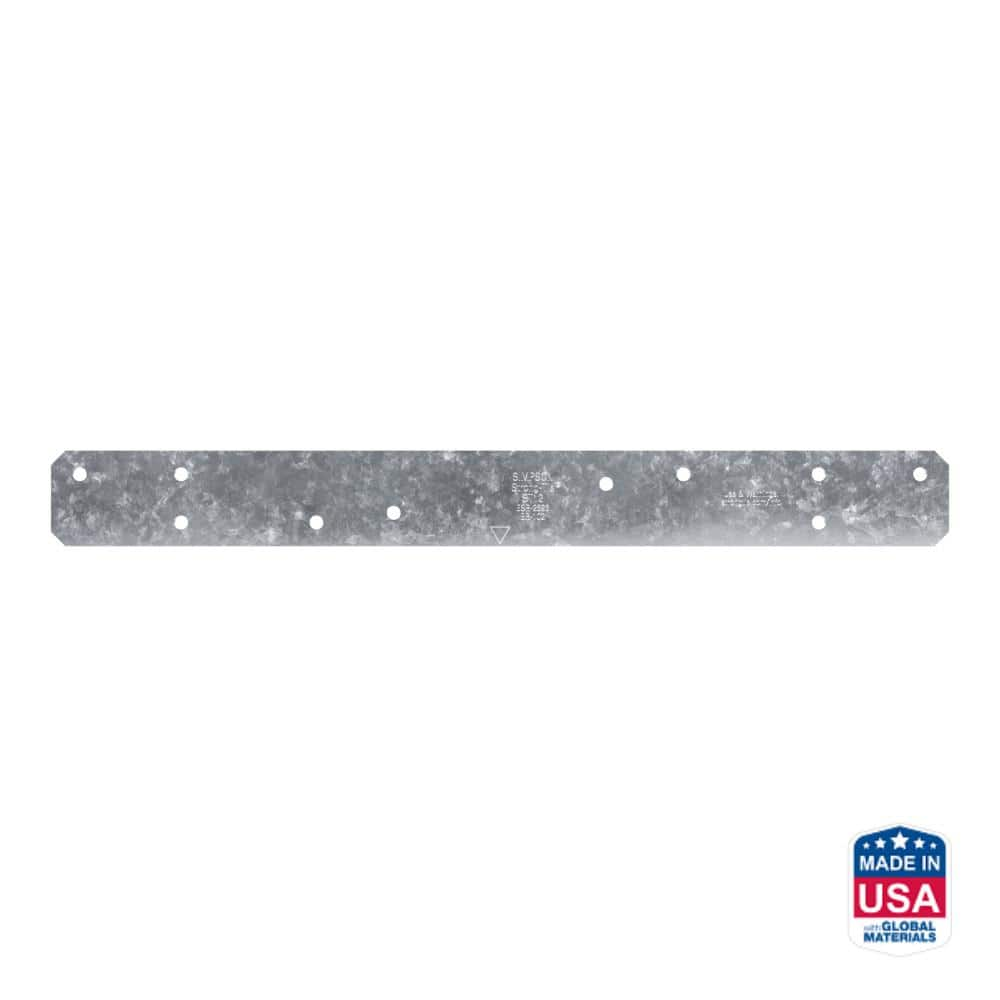

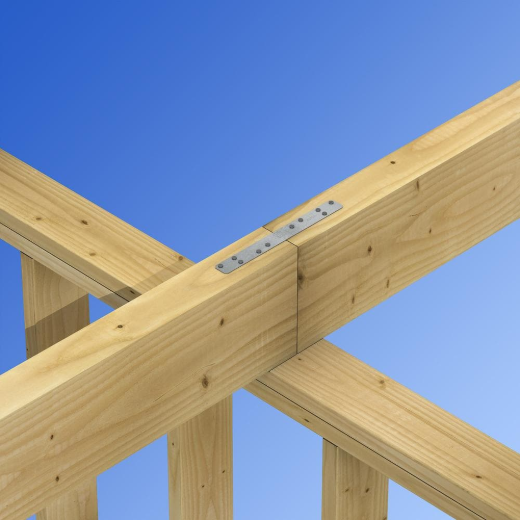

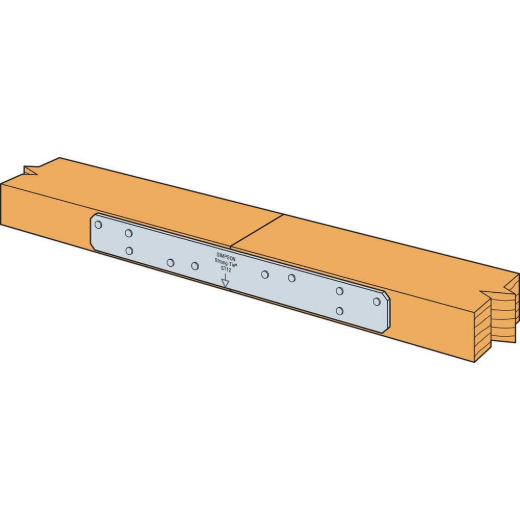

The Simpson Strong-Tie ST12 is a load-rated, precut strap tie designed to resist tension loads in a variety of wood-to-wood applications. This 16-gauge galvanized steel strap is an economical solution for reinforcing connections where top or bottom plates are cut, at wall intersections, or as ridge ties. Its staggered nail pattern is specifically engineered to reduce the potential for wood splitting, ensuring a more secure and lasting installation. The G90 galvanized finish provides added corrosion resistance for long-term durability in residential and commercial construction projects.
  • G90 Galvanized Finish
  • Staggered Nailing Pattern

Features

  • Engineered to resist wind and seismic forces in structural connections.
  • Precut design allows for quick installation without field fabrication.
  • Staggered hole pattern minimizes wood splitting during fastening.
  • Load-rated for predictable performance in tension-load applications.

Includes

  • (1) 12-in 16-Gauge Strap Tie
Products specifications
Model Number ST12
Material Carbon Steel
Gauge 16 Ga.

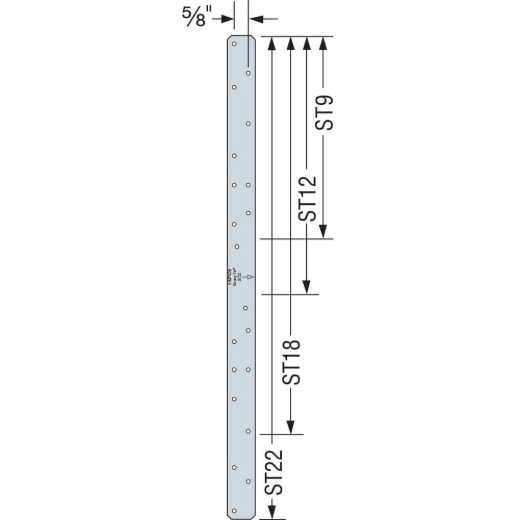

Length 11-5/8 inch
Width 1-1/4 inch
Finish G90 Galvanized
Fasteners Required (10) 0.162 inch x 2-1/2 inch Nails
Alternate Fasteners (10) #10 x 1-1/2 inch SD Screws
Tension Load (DFSP) 1,030 lbs
*
*
*
