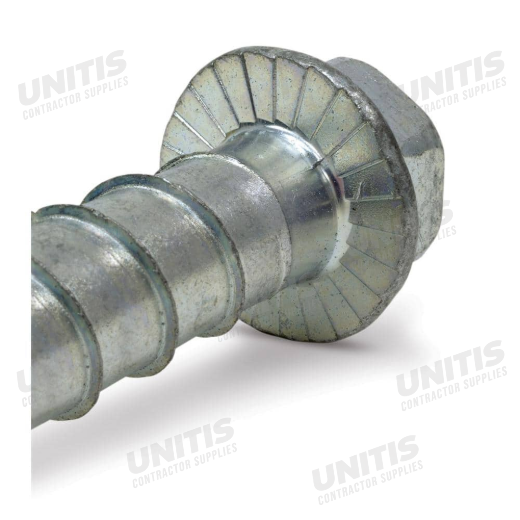

Simpson THD - 1/2" x 3" Titen HD Screw Anchor - 25/box

Mfr.: Simpson Strong-Tie
Item #: I094016
Mfr. #: THD50300HC25
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $68.09
i h h

Description

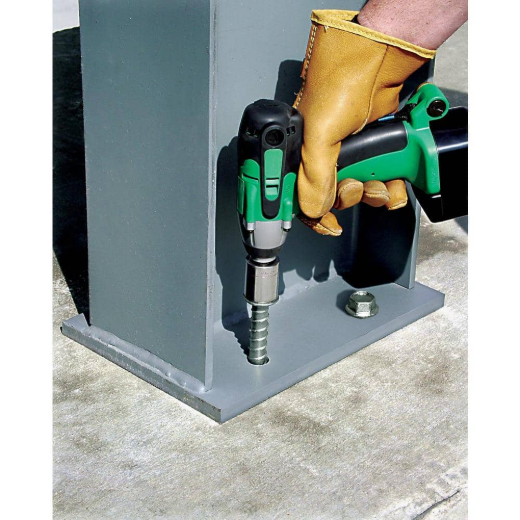

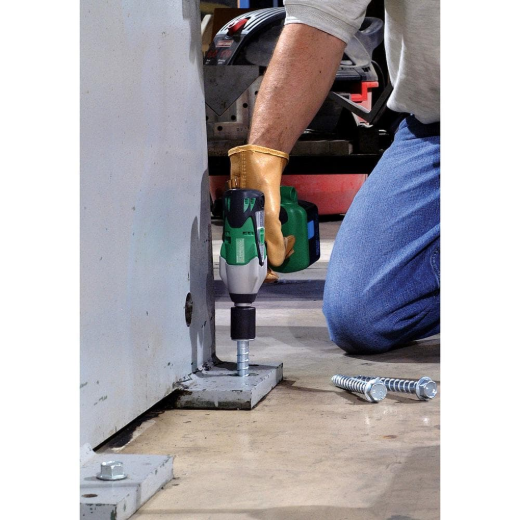

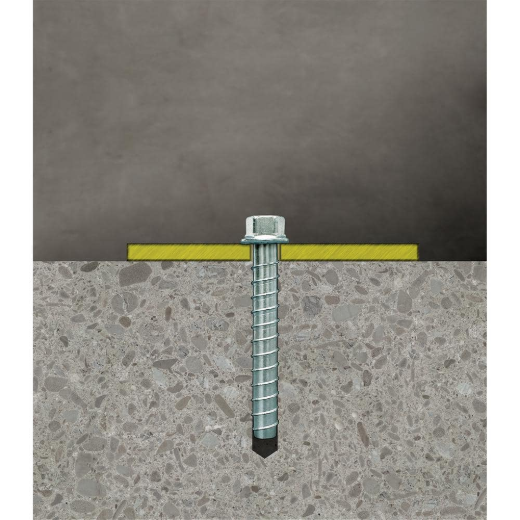

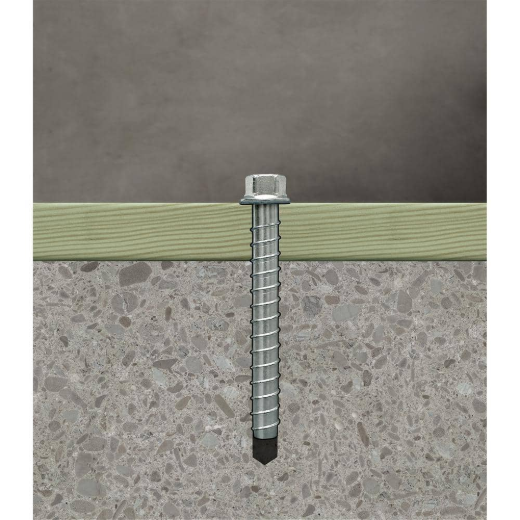

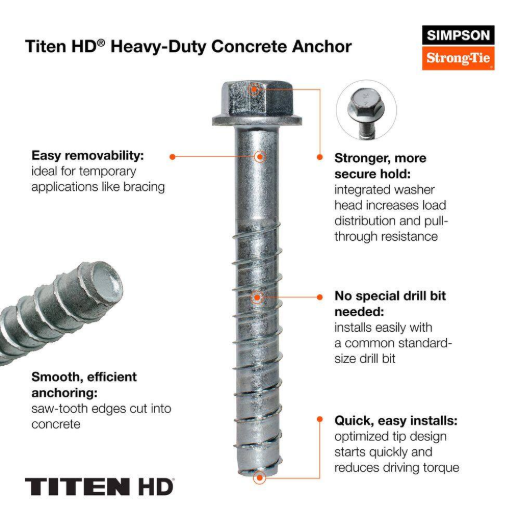

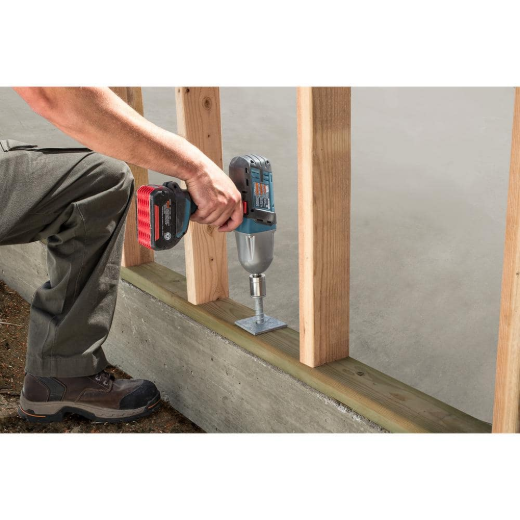

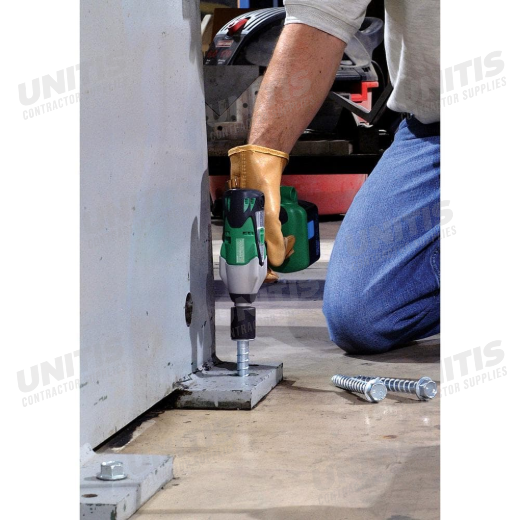

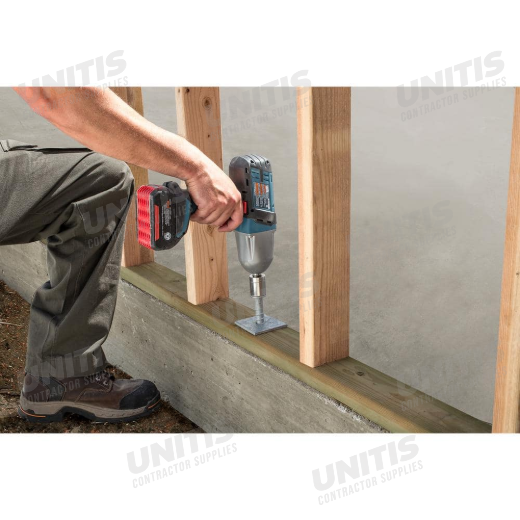

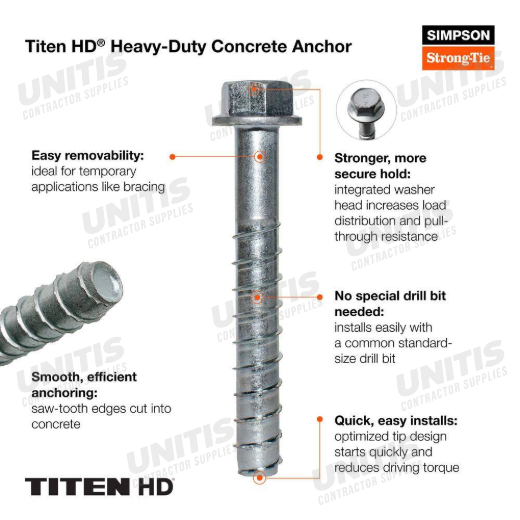

The Simpson Strong-Tie THD50300HC25 Titen HD is a high-strength screw anchor engineered for cracked and uncracked concrete, as well as uncracked masonry. Designed for superior holding power with low installation torque, this anchor is ideal for structural, temporary, and removable applications such as sill plates, ledgers, post bases, seating, and holdowns. Its patented thread design efficiently transfers load to the base material for maximum holding strength, and the zinc-plated finish offers moderate corrosion resistance in dry, interior environments.
  • High-strength design for reliable performance
  • Easy and fast installation

Features

  • Tested in accordance with ACI 355.2, AC193 and AC106. Qualified for static, wind and seismic loading conditions.
  • Zinc-plated finish provides moderate corrosion resistance in dry, interior environments.

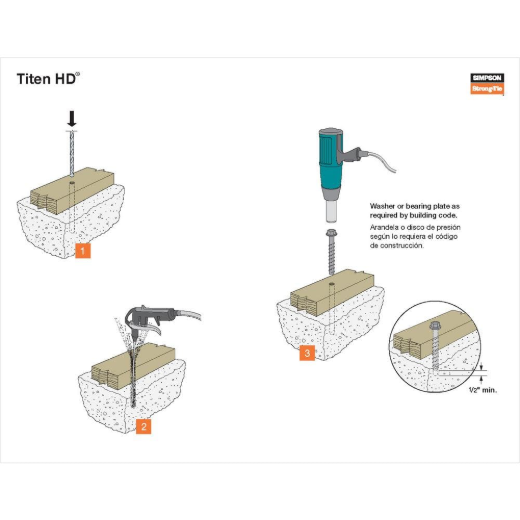

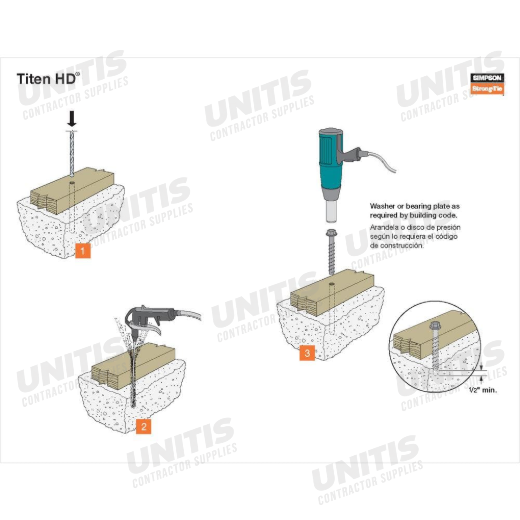

  • No special drill bit required; installs using standard ANSI tolerance drill bits.

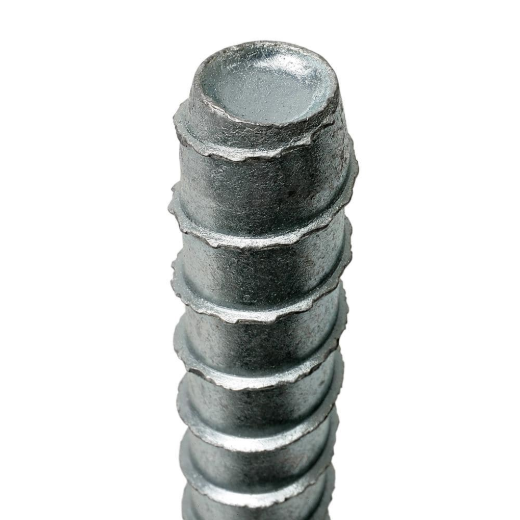

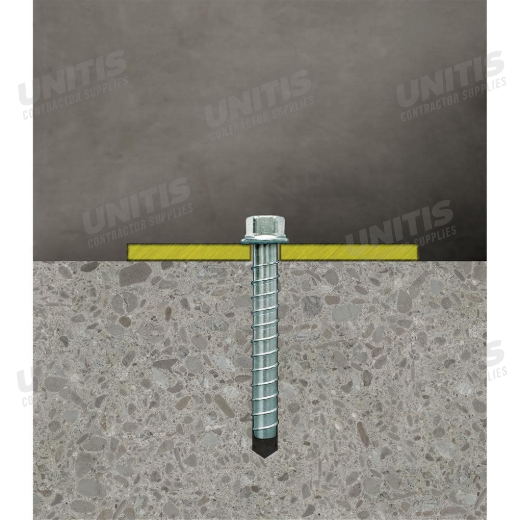

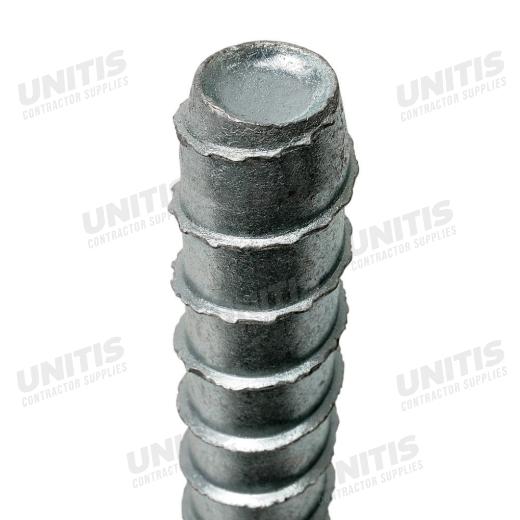

  • Undercutting thread design efficiently transfers load to the base material for maximum holding strength.

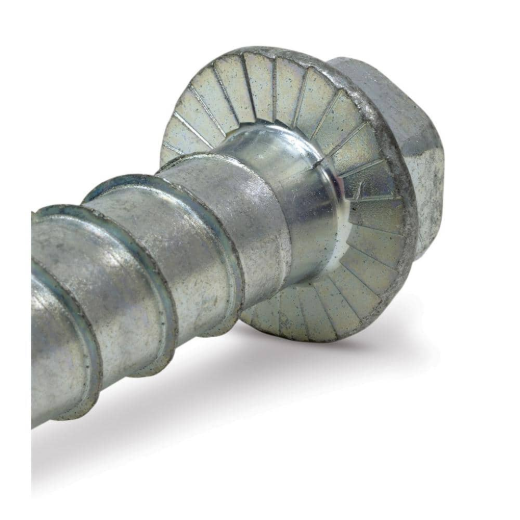

  • Hex-washer head requires no separate washer.

Includes

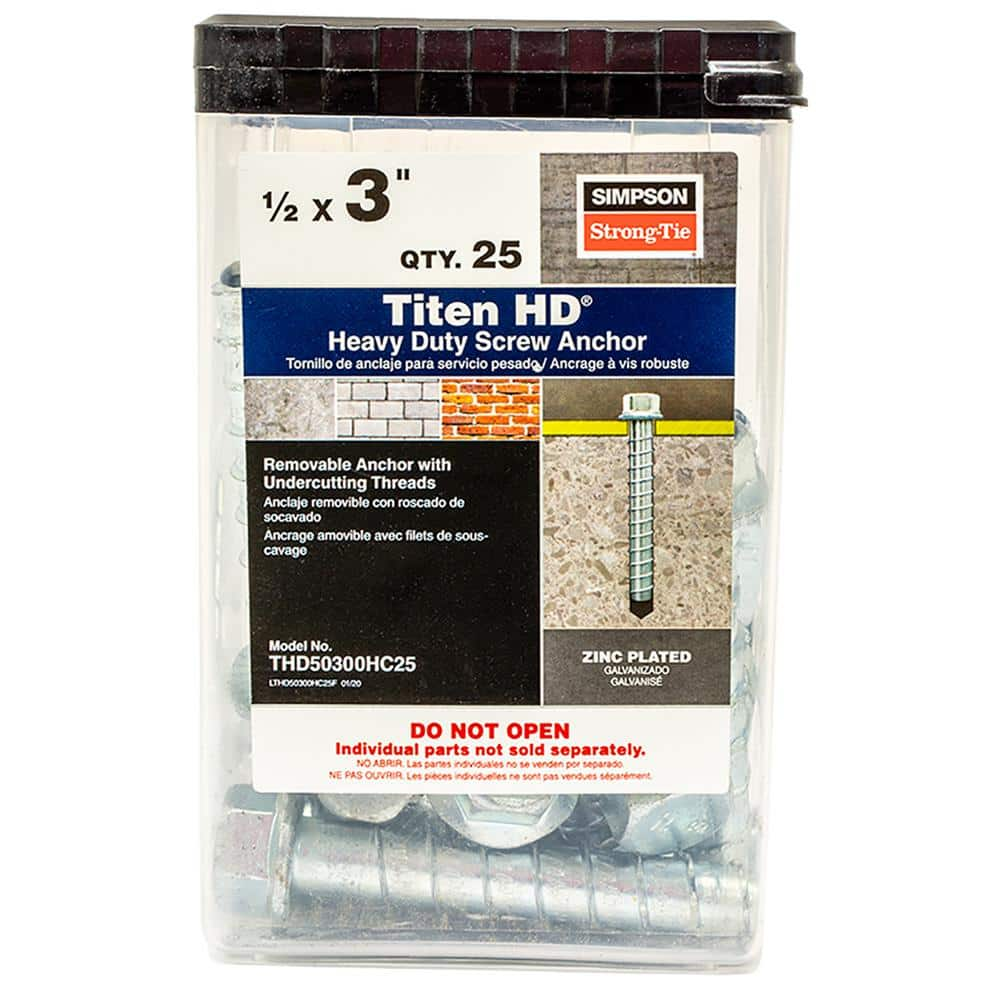

  • 25 Titen HD Screw Anchors
Products specifications
Anchor Diameter 1/2 in
Anchor Type Screw Anchor
Code Listing ICC-ES ESR-2713; Body per ASTM A510
Country of Origin Varies (subject to change)
Finish / Coating Zinc Plated
Head Style Hex Head
Material Carbon Steel
Overall Length 3 in
Pack Quantity 25 per box
*
*
*
