Simpson 14-11/16 inch Predeflected Holdown

Mfr.: Simpson Strong-Tie
Item #: I093096
Mfr. #: HDUE7-SDS3HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $105.00
i h h

Description

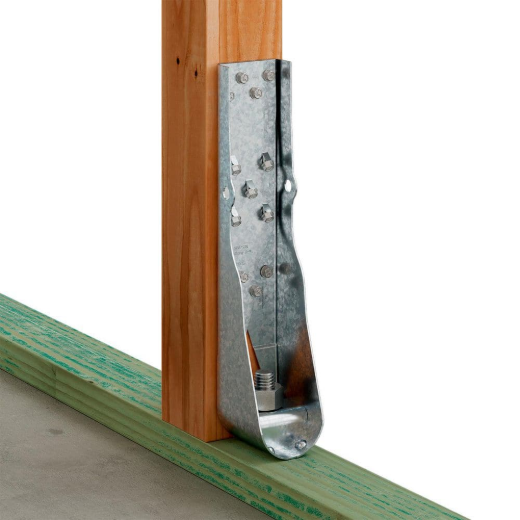

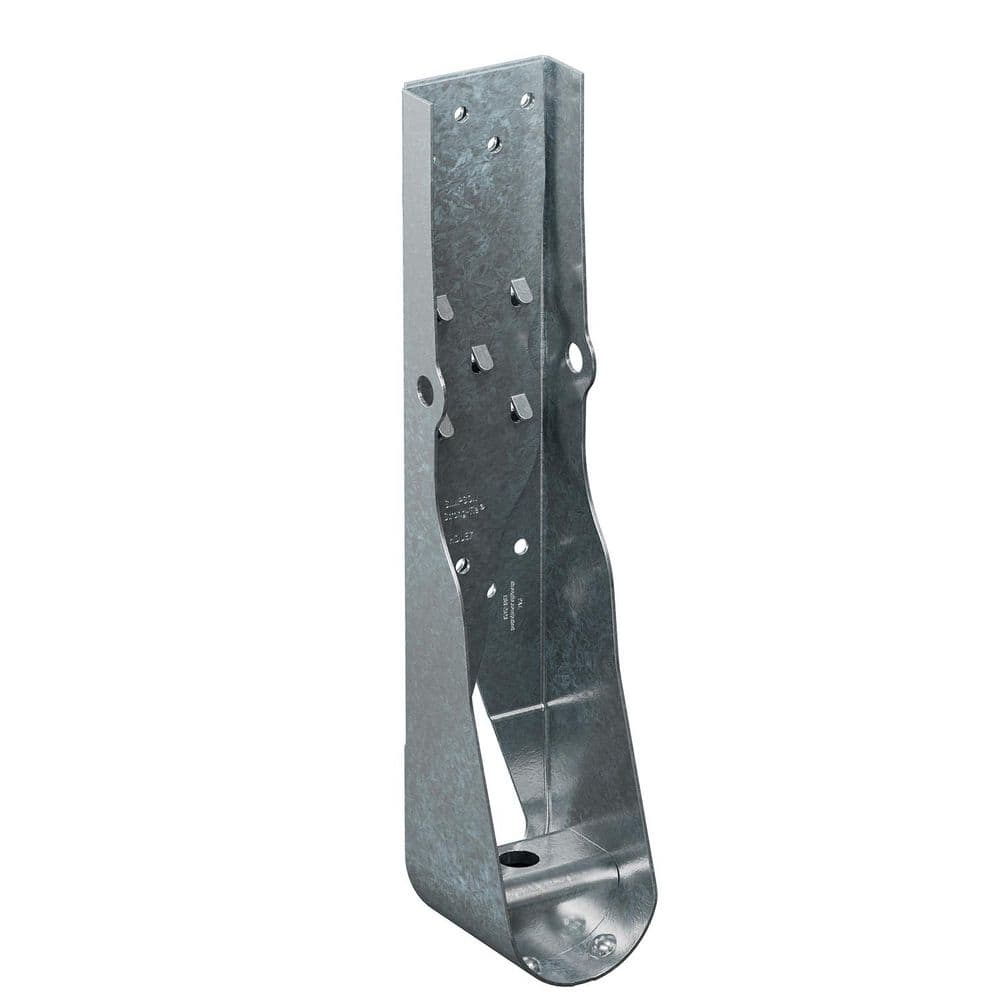

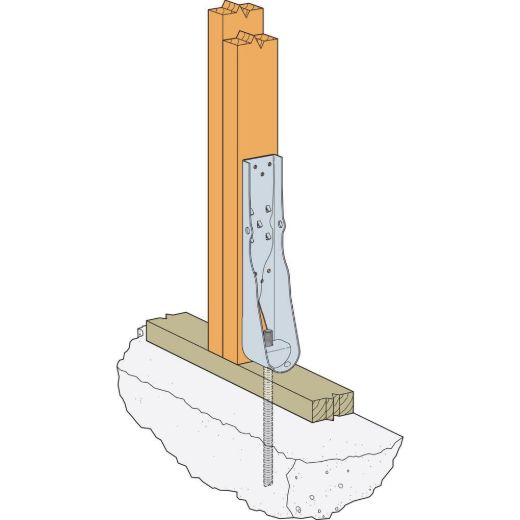

The Simpson Strong-Tie HDUE Holdown series delivers exceptional lateral-load resistance for demanding residential and multi-story applications. It is engineered to meet increased demands, especially for large openings and taller walls, providing enhanced load capacity. The predeflected seat design minimizes deflection under load, improving structural stability, while optimized screw patterns help prevent wood splitting. This holdown is ideal for shearwalls, braced wall panels, and other structural elements requiring reliable connections.
  • Hot Dip Galvanized Finish
  • Predeflected Seat Design

Features

  • Superior corrosion resistance for exterior and treated wood applications.
  • Innovative angled fastening engages screws in tension for higher load capacity with fewer fasteners.
  • Overlapping back plate reinforces steel strength and helps prevent post splitting.
  • Optimized screw patterns reduce wood splitting at the post end and maximize fastener capacity.

Includes

  • (13) 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws
  • (1) Crescent Washer
Products specifications
item_name HDUE7-SDS3HDG
height 14-11/16 inch
width 2-7/8 inch
base_width 3-3/8 inch
thickness 14 Gauge
material Carbon Steel
finish Hot Dip Galvanized
for_treated_lumber Yes
fasteners_included Yes
*
*
*
