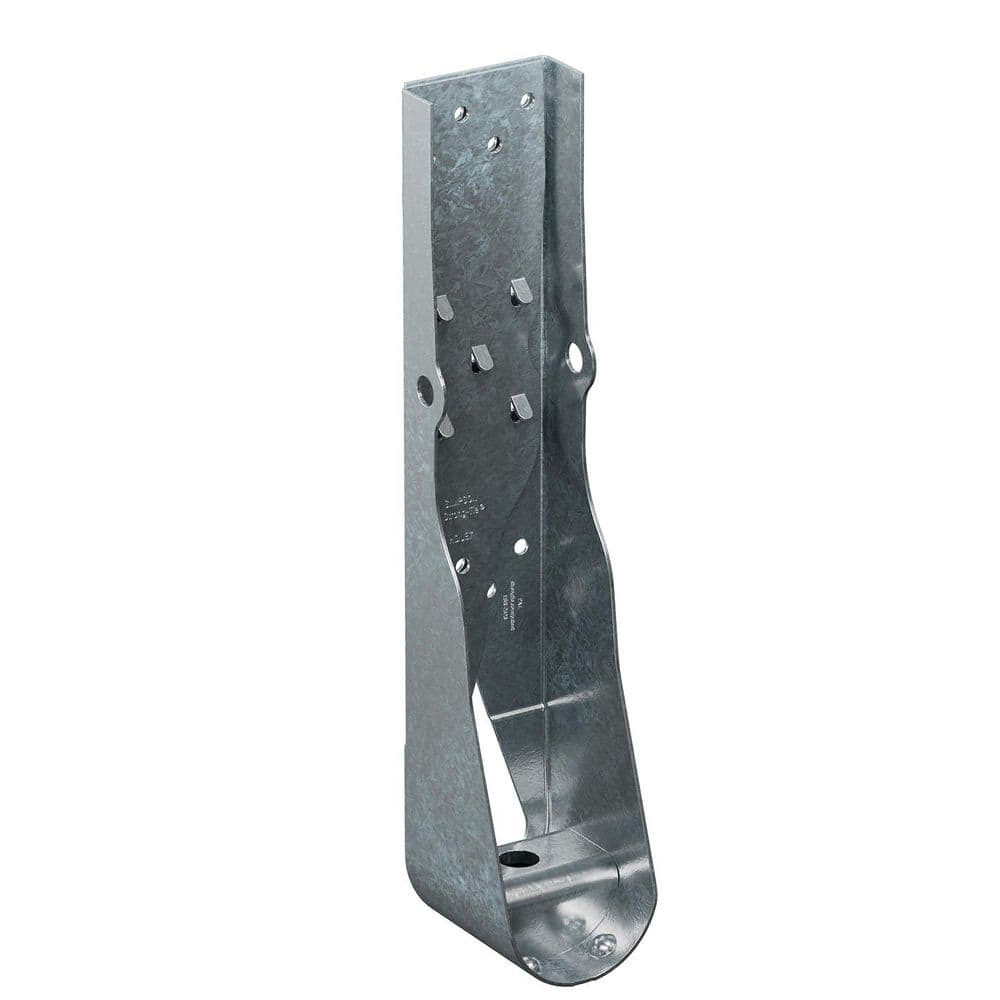

Simpson 14-11/16 inch Predeflected Holdown W/Screws

Mfr.: Simpson Strong-Tie
Item #: I093095
Mfr. #: HDUE7-SDS3
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $82.40
i h h

Description

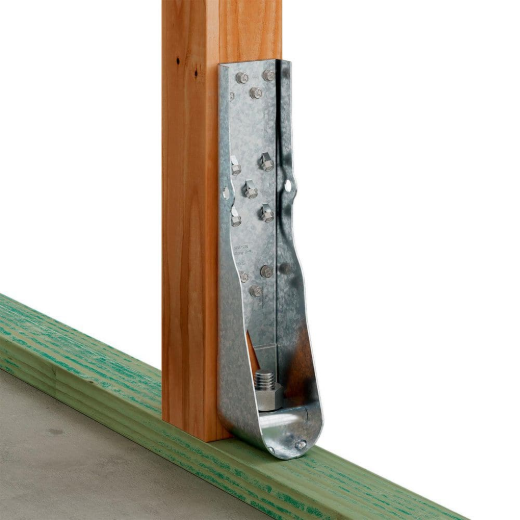

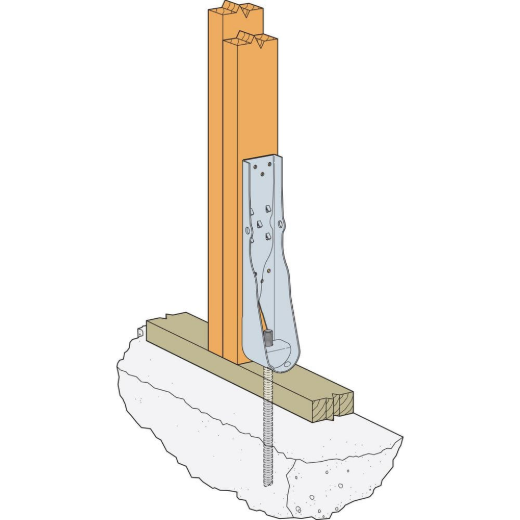

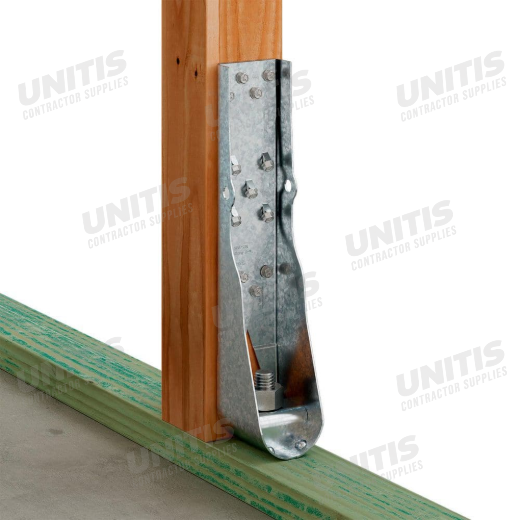

The Simpson Strong-Tie HDUE7-SDS3 is a high-capacity structural holdown designed to anchor wood shearwalls and posts to concrete foundations, providing exceptional strength and reliability for critical framing connections. It effectively transfers uplift and overturning forces from wood framing into the foundation, protecting structures in high-wind and seismic conditions. Featuring a predeflected seat to minimize deflection under load and an overlapping back plate for increased strength, this holdown ensures superior structural performance. The included pre-engineered Strong-Drive SDS Heavy-Duty Connector screws allow for fast and reliable installation.
  • High Capacity Structural Holdown
  • Predeflected Seat Design
  • Includes SDS Heavy-Duty Connector Screws

Features

  • Minimizes deflection under load with a predeflected seat.
  • Increases fastener strength and shear values with an overlapping back plate.
  • Optimized screw patterns reduce wood splitting and maximize individual fastener capacity.
  • Angled fastening engages screws in tension for higher load capacity.
  • Hot-dip galvanized finish offers superior corrosion resistance.

Includes

  • 13 x 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws
  • 1 x Crescent washer
Products specifications
Height 14-11/16 inch
Width 2-7/8 inch
Base Width 3-3/8 inch
Finish Hot Dip Galvanized
Material Carbon Steel
Thickness 14 Gauge
For Treated Lumber Yes
Fasteners Included Yes
*
*
*
