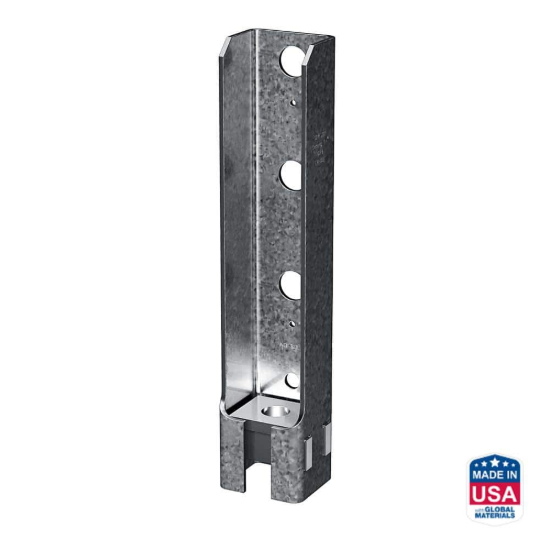

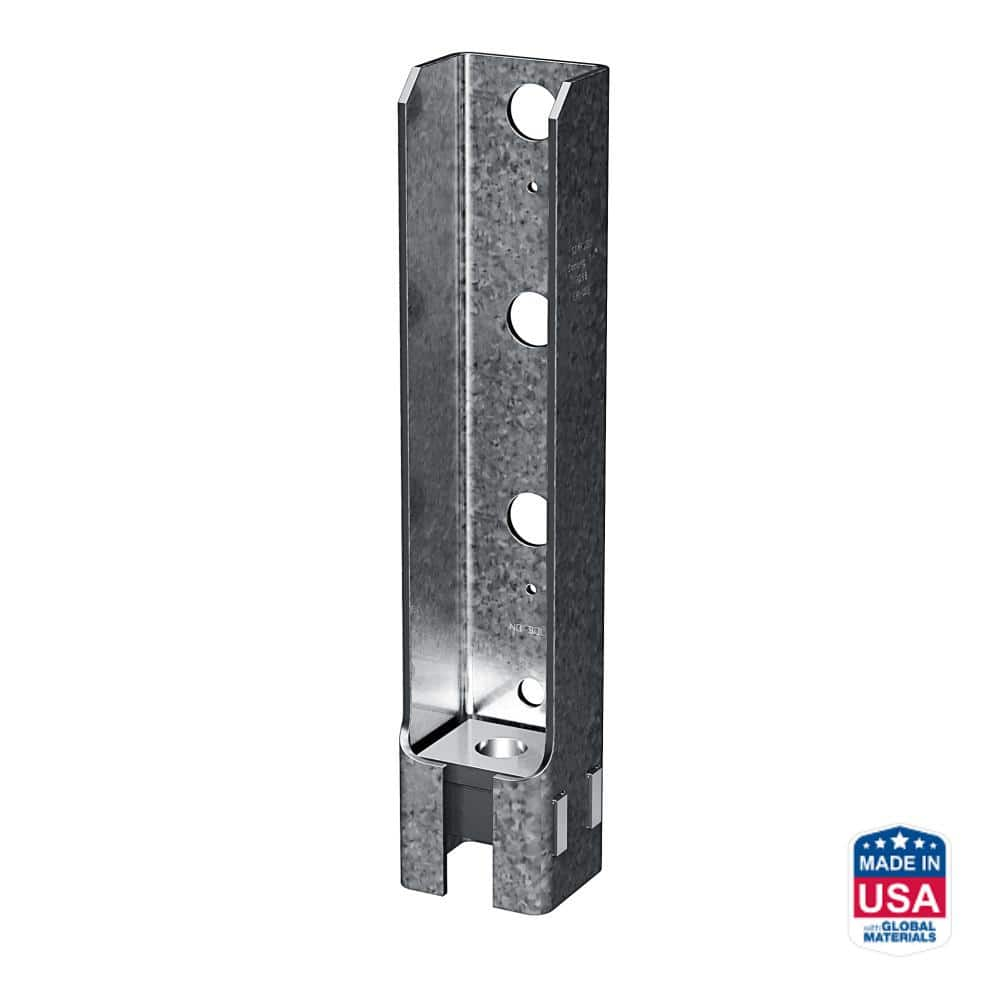

Simpson 14In Bolted Holdown

Mfr.: Simpson Strong-Tie
Item #: I093065
Mfr. #: HD9B
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $83.72
i h h

Description

The Simpson Strong-Tie HD9B is a robust bolted holdown designed for intermediate-load-range shearwalls, braced-wall panels, and lateral applications in wood construction. It provides low-deflection performance, ensuring structural stability under various load requirements. Its unique seat design minimizes deflection, and it can be installed directly on the sill plate or raised above it, offering flexibility for different installation scenarios. This holdown is also suitable for back-to-back applications where eccentricity is a concern.
  • Low-deflection performance
  • Galvanized (G90) for corrosion resistance

Features

  • Unique seat design minimizes deflection under load.
  • Self-jigging design ensures code compliance.

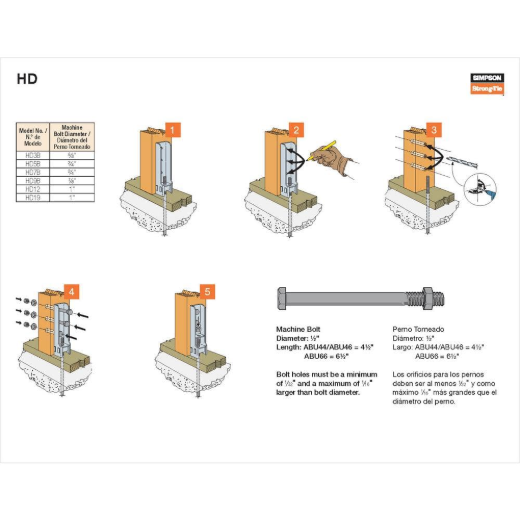

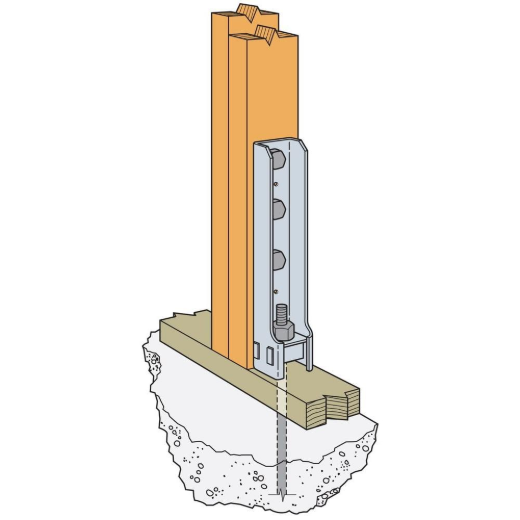

  • Can be installed directly on the sill plate or raised above it.
  • Suitable for vertical and horizontal applications.

Includes

  • Three 7/8 inch machine bolts (per some sources, may vary)
  • A 7/8 inch anchor (per some sources, may vary)
Products specifications
Height 14 inch
Gauge 7-gauge
Coating G90 Galvanized
BaseSeat Thickness 3/8 inch
SB (Structural Bolt) 7/8 inch
HB (Hex Bolt) 7/8 inch
*
*
*
