Simpson 15-In. 18-Gauge Medium Strap Tie

Mfr.: Simpson Strong-Tie
Item #: I090798
Mfr. #: MSTA15
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $2.09
i h h

Description

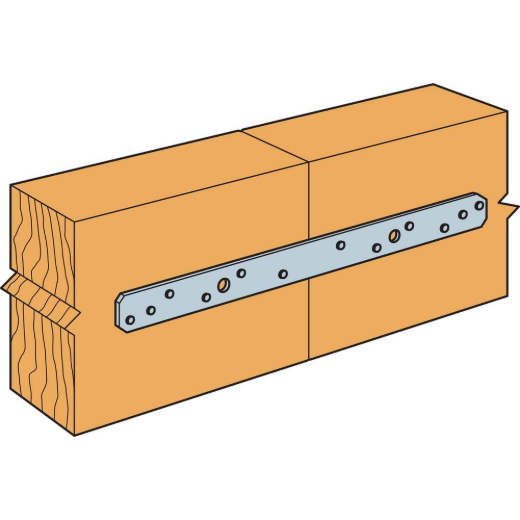

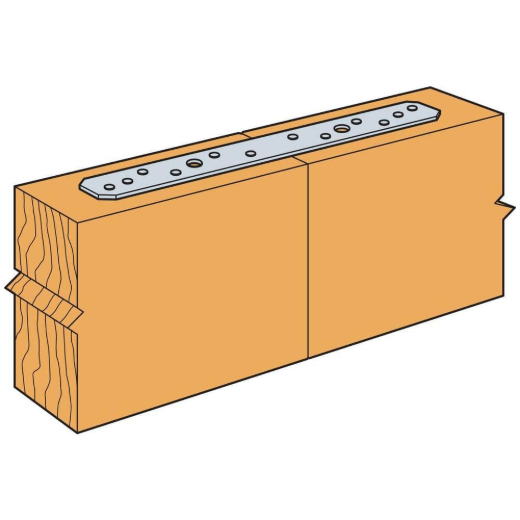

The Simpson Strong-Tie MSTA15 is a high-performance medium strap tie designed to resist tension loads in wood-to-wood applications. Ideal for floor-to-floor clear span applications, this strap provides critical reinforcement against wind and seismic forces. It features a staggered nail pattern specifically engineered to minimize wood splitting when installed on the edge of 2x members.
  • 18-Gauge G90 Galvanized Steel
  • Staggered Fastener Pattern

Features

  • Load-rated for uplift resistance in structural framing projects.
  • G90 galvanized finish offers enhanced corrosion protection for durability.
  • Precut design ensures quick installation and consistent performance on site.
Products specifications
Material 18-Gauge Steel
Finish G90 Galvanized
Length 15 Inches
Width 1-1/4 Inches
Fasteners Required (12) 0.148 inch x 2-1/2 inch Nails
Application Wood-to-Wood Tension
Series MSTA
Member Size Min 2x Framing
*
*
*
