Simpson 15In Medium Strap Tie Zmax

Mfr.: Simpson Strong-Tie
Item #: I090799
Mfr. #: MSTA15Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $2.78
i h h

Description

The Simpson Strong-Tie MSTA15Z is a load-rated, precut strap tie engineered for quick installation and optimal performance in wood-to-wood connections. It is specifically designed to resist tension loads and features a staggered nail pattern that helps minimize wood splitting. This versatile medium strap tie is ideal for floor-to-floor clear span applications, reinforcing wall intersections, and ridge ties. With its G185 ZMAX galvanization, it provides superior corrosion resistance for both exterior and treated-wood projects.
  • ZMAX Galvanized finish for high corrosion resistance
  • Staggered nail pattern to minimize wood splitting

Features

  • Designed to resist wind and seismic forces in structural framing.

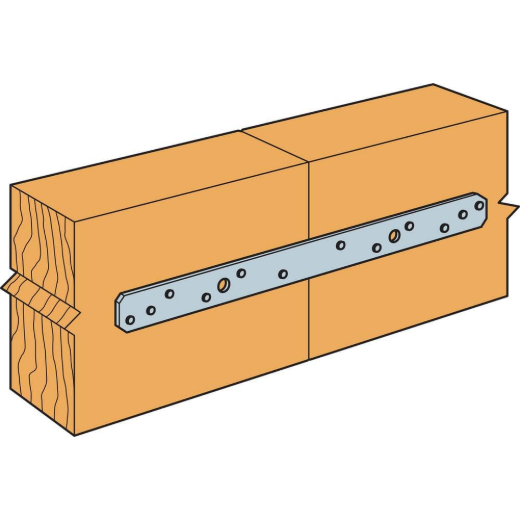

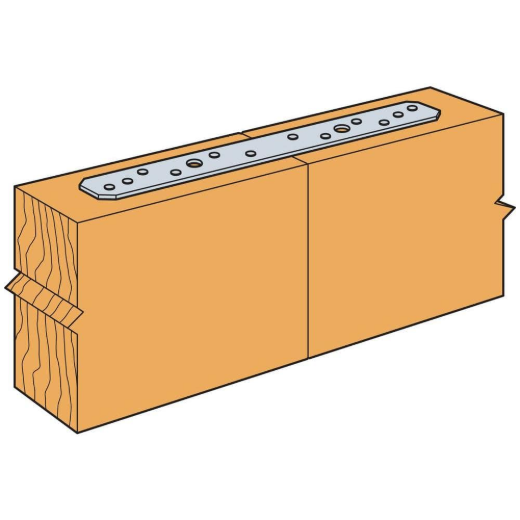

  • Engineered for use on the edge of 2x members for clear span applications.
  • Precut and load-rated to provide consistent performance over field-fabricated straps.

Includes

  • (1) MSTA15Z Medium Strap Tie
Products specifications
Model No MSTA15Z
Length 15 inch
Width 1-1/4 inch
Thickness 18 Gauge
Finish ZMAX Galvanized
Material Steel
Fasteners Required (12) 0.148 inch x 2-1/2 inch Nails
Load Rated Yes
*
*
*
