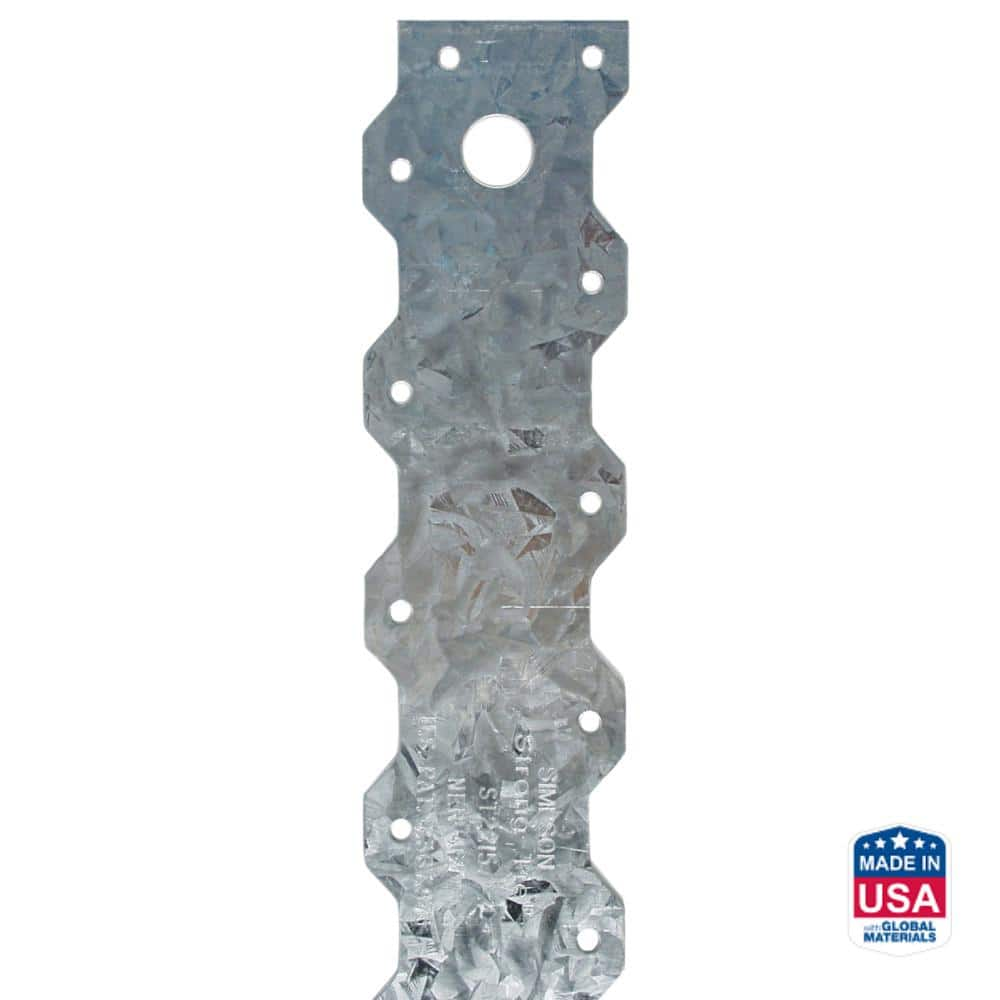

Simpson 16-5/16In 20Ga Strap Tie

Mfr.: Simpson Strong-Tie
Item #: I090870
Mfr. #: ST2215
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $3.66
i h h

Description

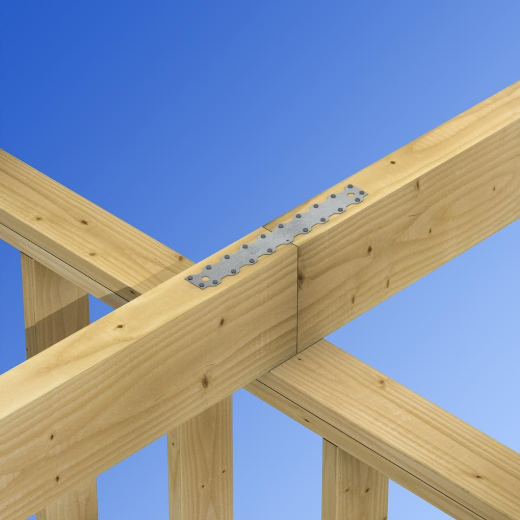

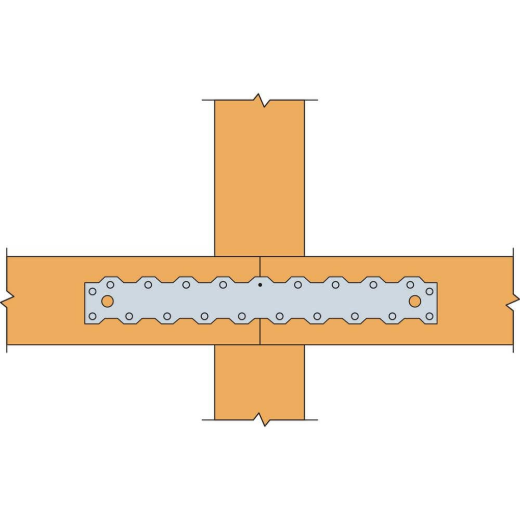

The Simpson Strong-Tie ST2215 is a high-performance 20-gauge strap tie engineered to resist tension loads in various wood-to-wood framing applications. It is an ideal, economical solution for installations where top or bottom plates are cut, at wall intersections, or as ridge ties. This load-rated, precut strap provides consistent performance and simplifies field installation compared to fabricated alternatives.
  • G90 Galvanized Finish
  • 20-Gauge Steel Strength

Features

  • Engineered to resist wind and seismic forces in structural framing.
  • Precut length of 16-5/16 inches ensures quick and uniform application.
  • Nailing pattern is specifically designed to reduce wood splitting on 2x members.
  • Load-rated for reliable tension resistance in diverse building projects.

Includes

  • ST2215 Strap Tie (Single Unit)
Products specifications
Model Number ST2215
Product Type Strap Tie
Material Galvanized Steel
Finish G90 Galvanized
Gauge 20 Gauge
Length 16-5/16 inch
Width 2-1/16 inch
Fasteners Required 0.162 inch x 3-1/2 inch nails
*
*
*
