Simpson 16-Gauge 150-Ft. Coiled Strap Zmax

Mfr.: Simpson Strong-Tie
Item #: I090725
Mfr. #: CS16Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $358.24
i h h

Description

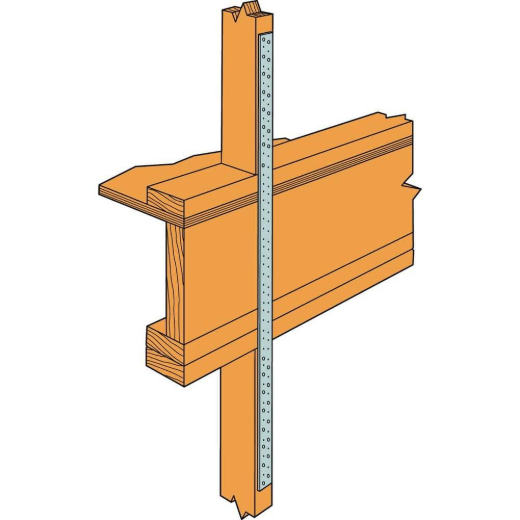

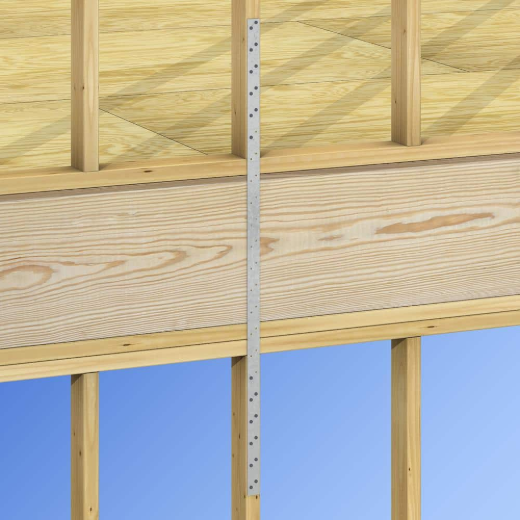

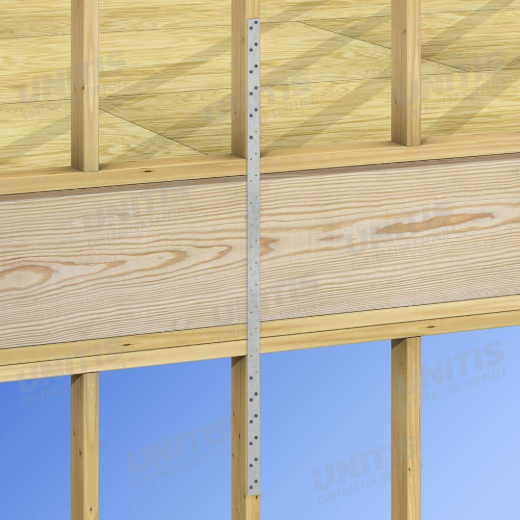

The Simpson Strong-Tie CS16Z is a high-versatility continuous utility strap designed to provide structural reinforcement by resisting tension and uplift loads. This 150-foot coiled strap can be easily cut to specific lengths on the job site, making it a cost-effective and flexible alternative to individual pre-cut straps. It is engineered for use in roof uplift resistance, shear wall overturning resistance, and general wood-to-wood connections.
  • Continuous Coil Design
  • ZMAX Galvanized Finish
  • Job-Site Versatility

Features

  • G185 ZMAX coating provides superior corrosion resistance for exterior and treated-wood applications.
  • Packaged in a lightweight, easy-to-handle carton weighing approximately 40 lbs for convenient transport.
  • Width is sized to fit nominal 2x lumber for standard framing requirements.

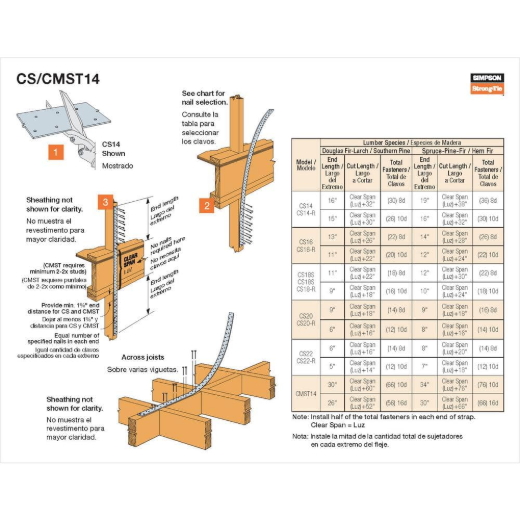

  • Supports lap splicing for creating continuous drag elements and diaphragm chord members.

Includes

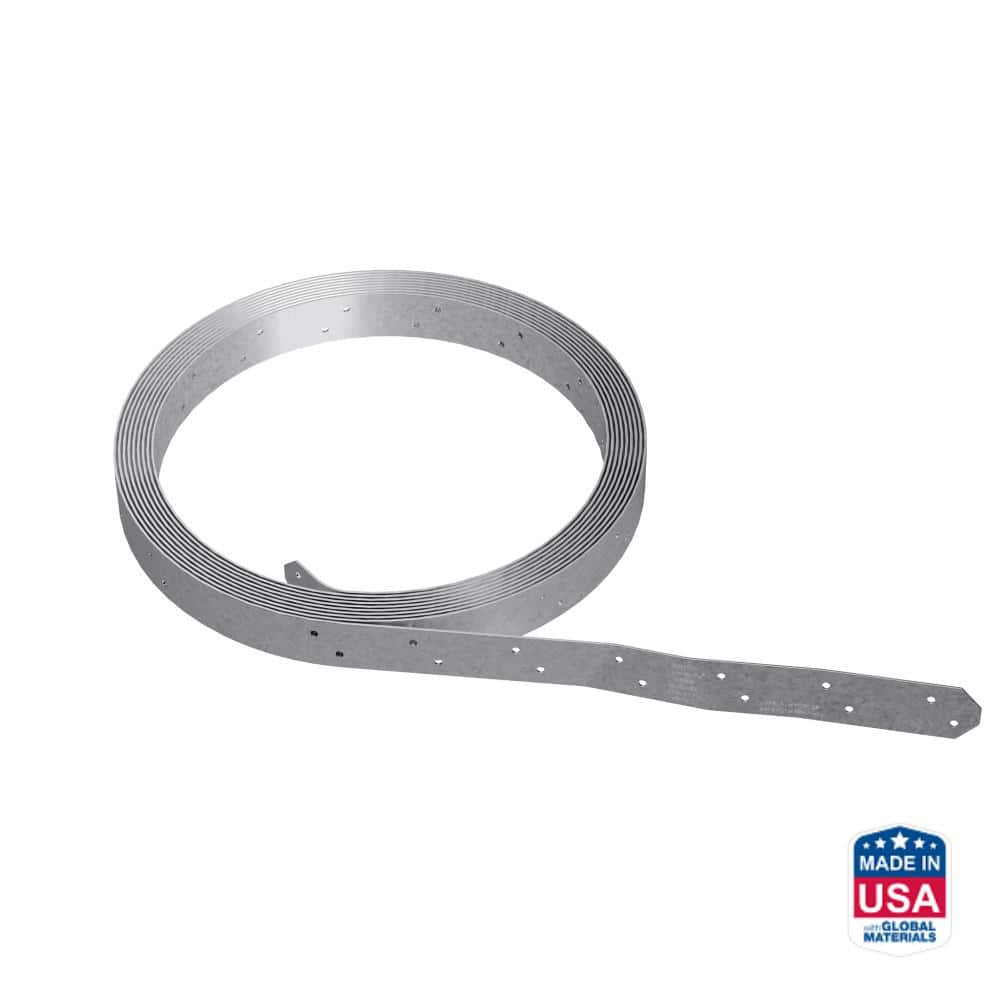

  • (1) 150 ft. Roll of 16-Gauge Coiled Strap
Products specifications
Model Number CS16Z
Material Gauge 16 Gauge
Length 150 ft.
Width 1-1/4 inch
Finish ZMAX (G185 Galvanized)
Material Steel
Approximate Weight 37.1 lb
Brand Simpson Strong-Tie
*
*
*
