  • Simpson 16-Gauge 22-In. Strap Tie

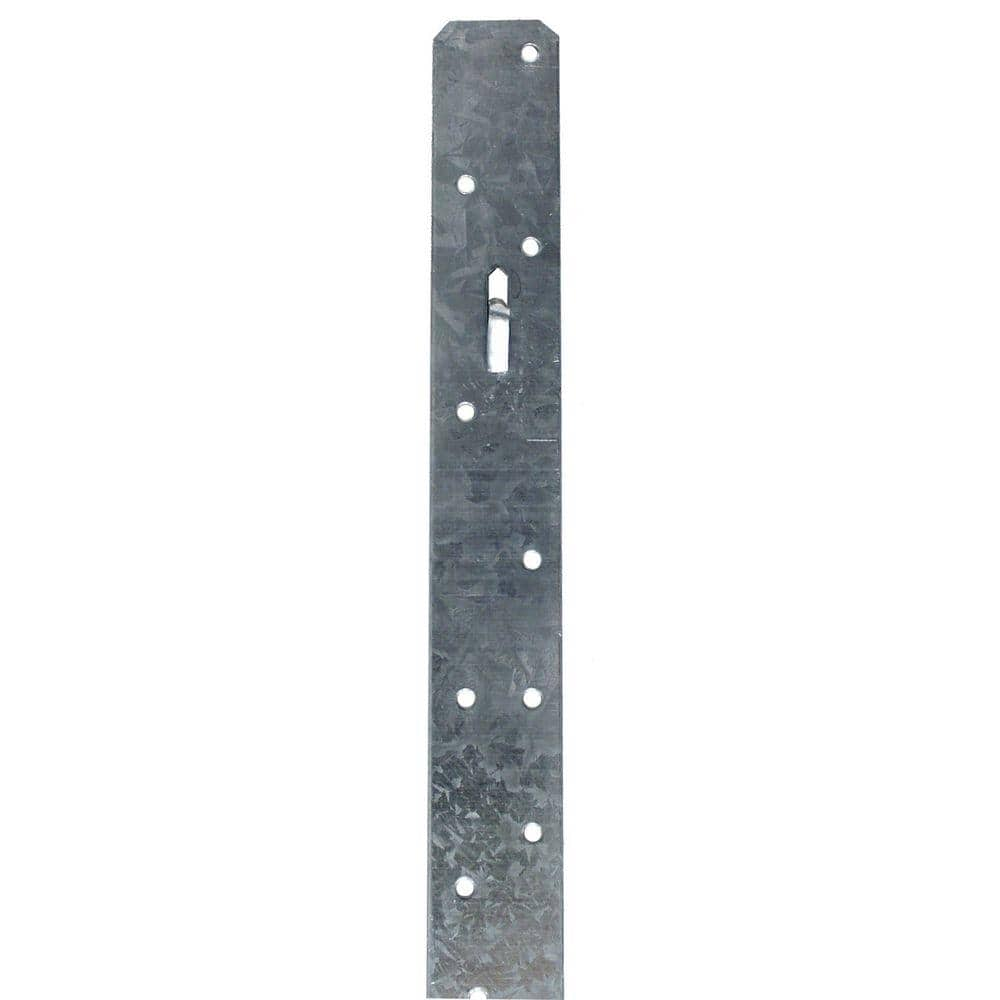

Simpson 16-Gauge 22-In. Strap Tie

Mfr.: Simpson Strong-Tie
Item #: I090871
Mfr. #: ST22-R
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $132.64
i h h

Description

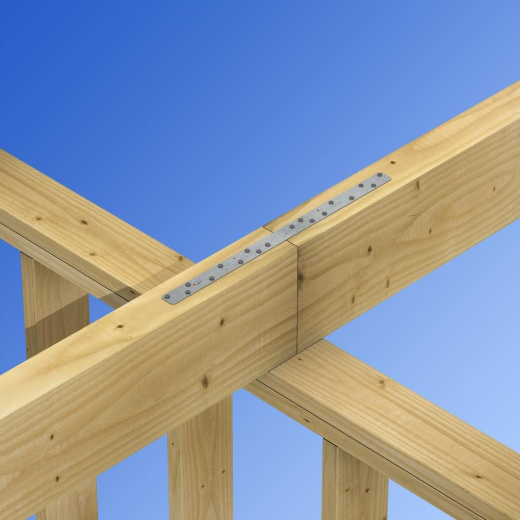

The Simpson Strong-Tie ST22-R is a load-rated, precut strap tie designed to resist tension loads in various wood-to-wood applications. This versatile 16-gauge steel connector is ideal for use where top or bottom plates are cut at wall intersections or as a ridge tie to reinforce joints. Its staggered nail pattern is engineered to reduce the potential for wood splitting, ensuring a more secure and reliable connection. The G90 galvanized coating provides essential corrosion resistance for both interior and exterior construction projects.
  • 16-Gauge Steel Construction
  • G90 Galvanized Finish

Features

  • Engineered to resist tension loads in framing and structural applications.
  • Staggered nail pattern minimizes wood splitting during fastener installation.
  • Precut lengths facilitate quick and efficient installation on the job site.

Includes

  • Simpson ST22-R Strap Tie
Products specifications
Material 16-Gauge Steel
Finish G90 Galvanized
Length 21-5/8 inch
Width 1-1/4 inch
Fasteners Required (18) 0.162 x 3-1/2 inch Nails
Model Number ST22-R
Application Tension Resistance
*
*
*
