  • Simpson 16-Gauge 54-Foot Coiled Strap

Simpson 16-Gauge 54-Foot Coiled Strap

Mfr.: Simpson Strong-Tie
Item #: I090724
Mfr. #: CMSTC16
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $360.80
i h h

Description

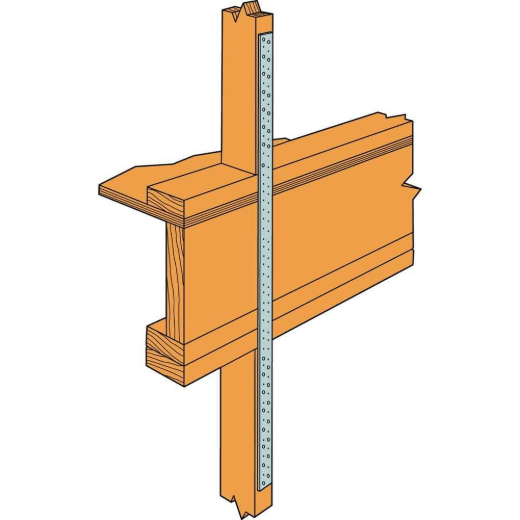

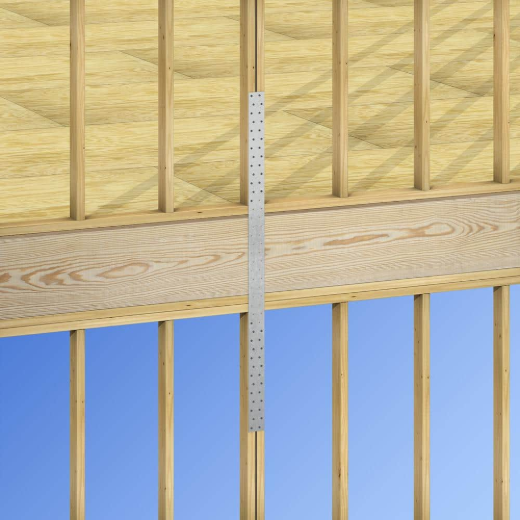

The Simpson Strong-Tie CMSTC16 is a versatile 16-gauge galvanized coiled strap designed for structural reinforcement and ease of installation on the jobsite. This continuous utility strap features uniquely engineered countersunk nail slots that provide a lower fastener profile and help prevent wood splitting. It is ideal for resisting tension and uplift loads in floor-to-floor or horizontal applications and can be easily cut to any required length.
  • G90 Galvanized Coating
  • Customizable Cut-to-Length Design

Features

  • Countersunk fastener slots for lower screw profile
  • Staggered nail pattern to minimize splitting
  • Gauge stamped on the part for easy identification
  • Packaged in lightweight cartons for portability

Includes

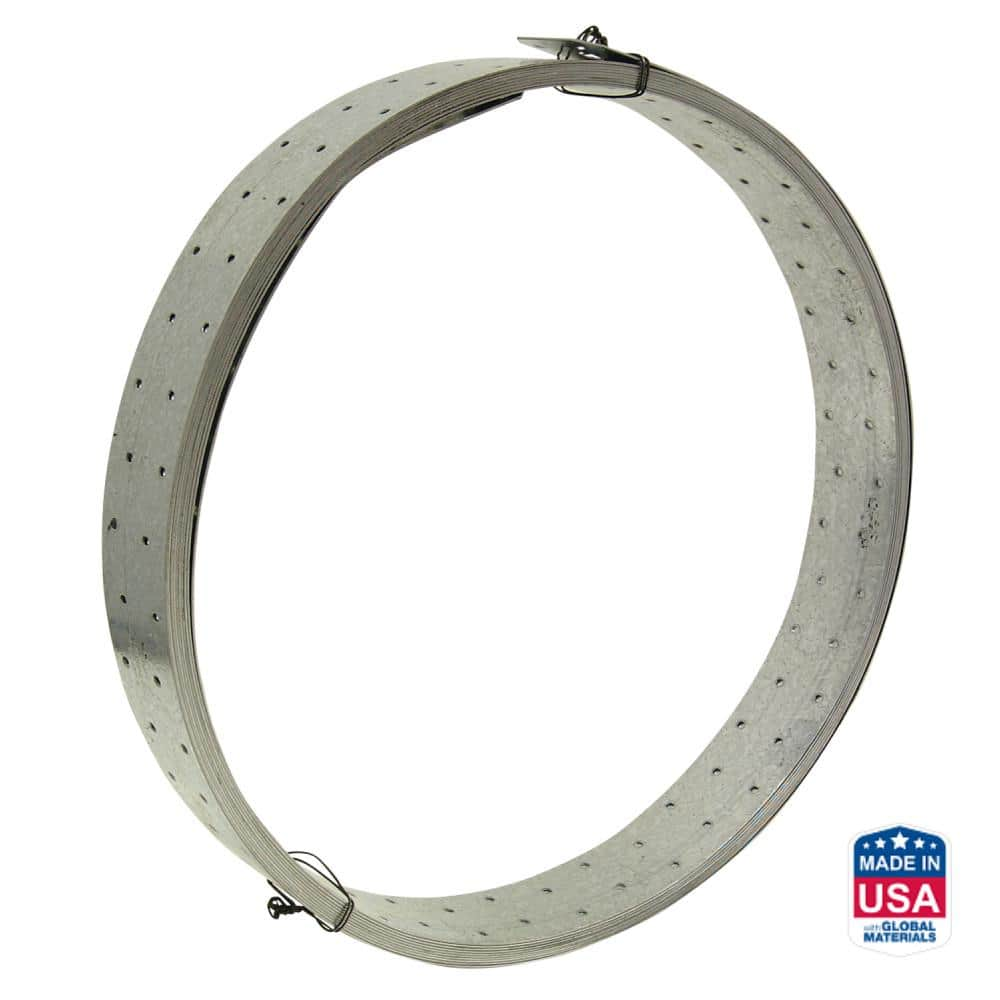

  • (1) 54 ft. Coiled Strap
Products specifications
Material 16-Gauge Steel
Finish Galvanized (G90)
Width 3 inch
Length 54 ft.
Product Type Coiled Utility Strap
Fasteners Required 16d Common or Sinker Nails
Load Capacity 4,585 lbs
*
*
*
