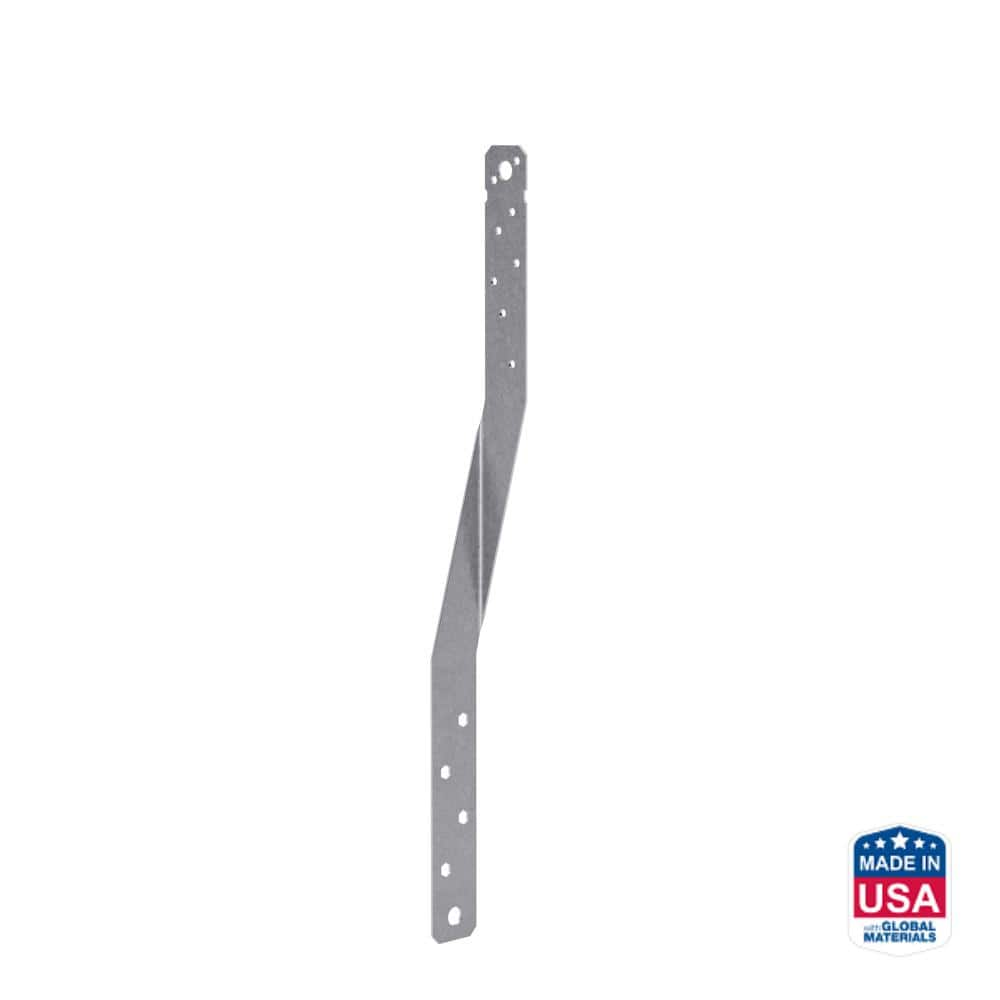

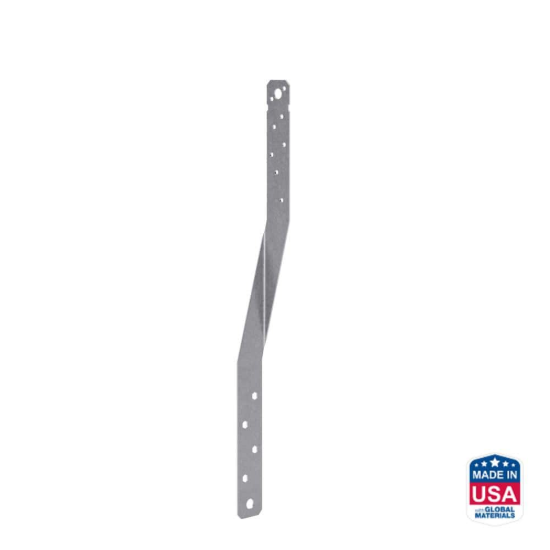

Simpson 16-Inch Heavy Masonry Twist Strap

Mfr.: Simpson Strong-Tie
Item #: I090764
Mfr. #: HTSM16
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $3.55
i h h

Description

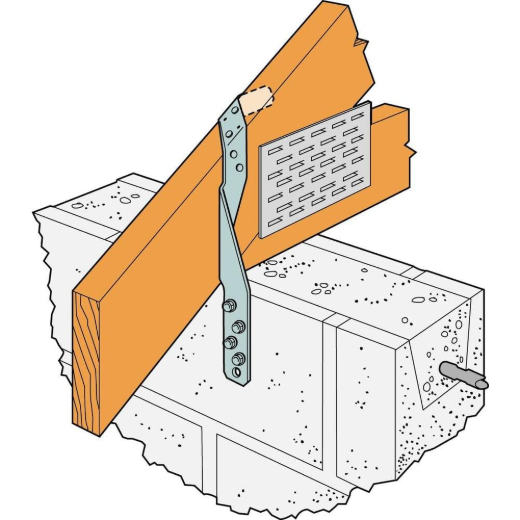

The Simpson Strong-Tie HTSM16 is a high-strength heavy twist strap designed for reliable truss-to-masonry connections. It is specifically engineered to resist uplift and lateral forces at the heel of a truss, providing an economical and durable structural solution. The strap is load-rated for installation on both grout-filled concrete masonry units (GFCMU) and solid concrete surfaces. Its G90 galvanized finish offers enhanced corrosion protection, ensuring longevity in diverse construction environments.
  • G90 Galvanized Finish
  • 14-Gauge Heavy-Duty Steel

Features

  • Straps do not need to be wrapped over the truss to achieve allowable load
  • Can be field bent once to a 45-degree angle for versatile installation
  • Installs easily with hex-head Titen screws into masonry or concrete

Includes

  • (1) HTSM16 Heavy Masonry Twist Strap
Products specifications
Length 16 inch
Material 14 Gauge Steel
Finish G90 Galvanized
Fastener Type Hex-head Titen Screws
Load Rating Uplift and Lateral
Connection Truss to Masonry/Concrete
*
*
*
