  • Simpson 16-Inch Medium Twist Strap For Masonry

Simpson 16-Inch Medium Twist Strap For Masonry

Mfr.: Simpson Strong-Tie
Item #: I090849
Mfr. #: MTSM16
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $2.61
i h h

Description

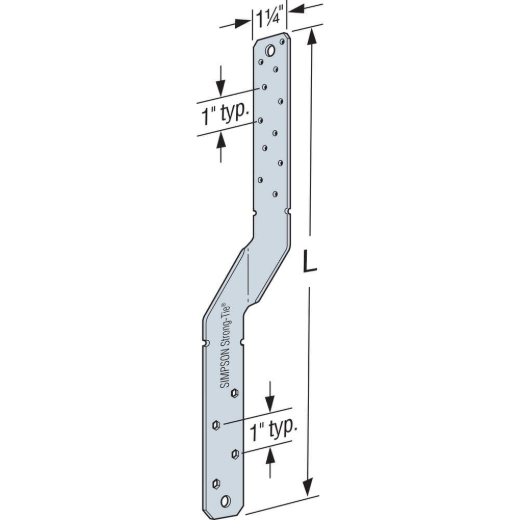

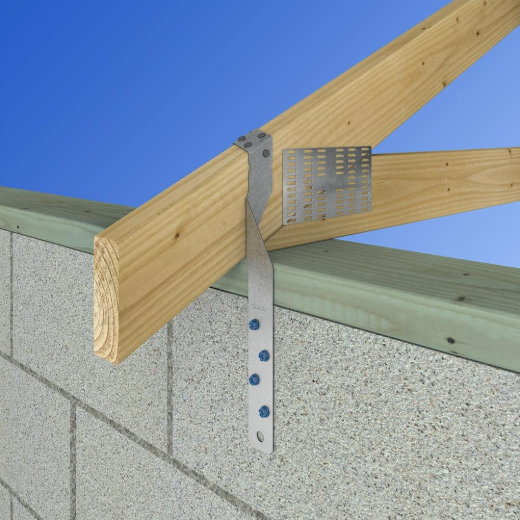

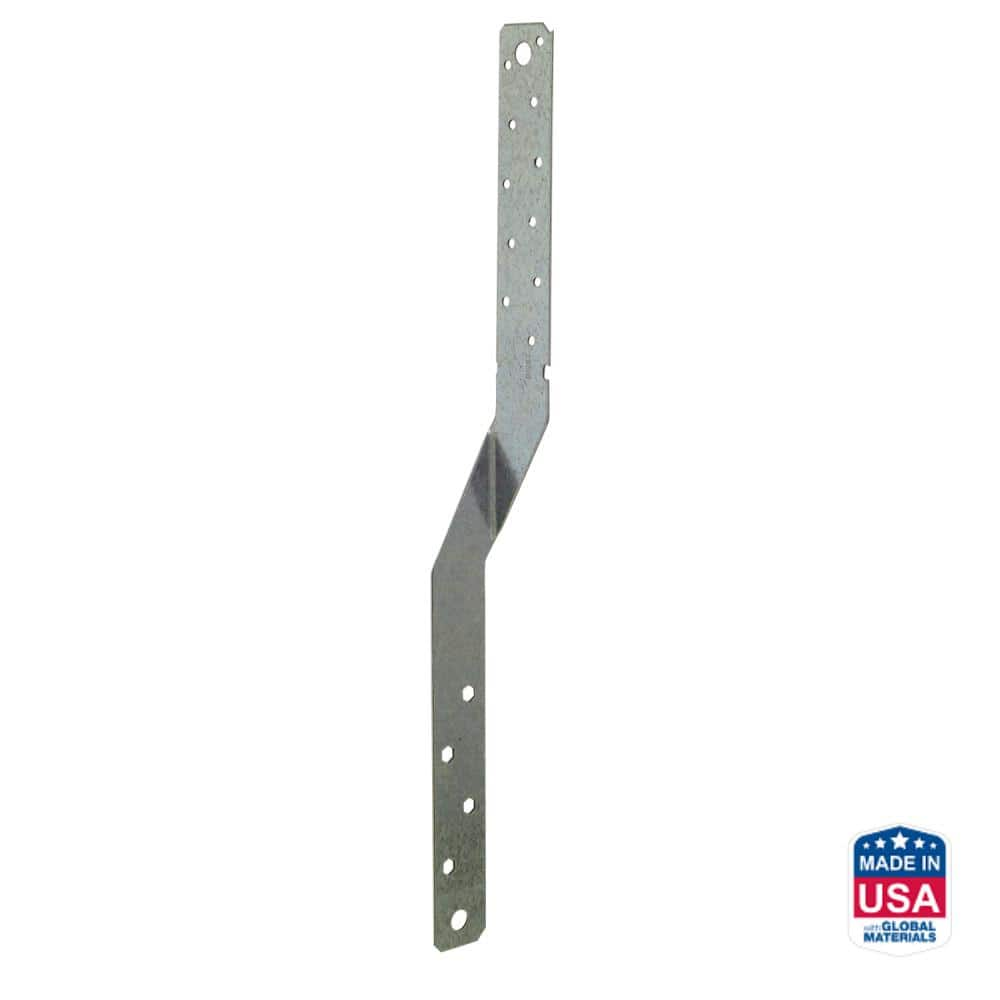

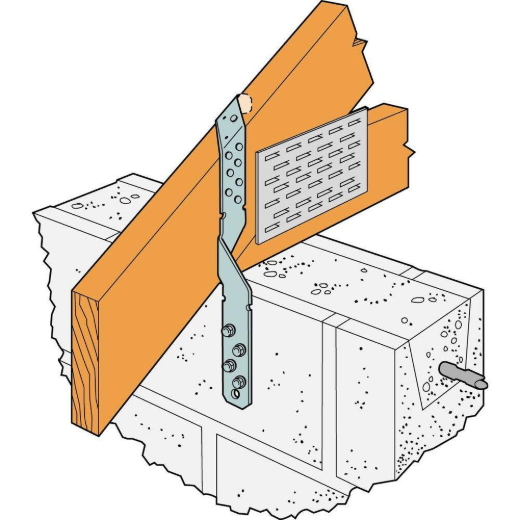

The Simpson Strong-Tie MTSM16 is a 16-inch medium twist strap designed to provide a secure, moderate-strength connection between wood trusses and masonry or concrete walls. This strap features a small 2-inch bend section that minimizes interference at transition points, making it an efficient and economical choice for resisting uplift forces. It is engineered to perform without the need to wrap over the truss, simplifying installation while meeting critical load requirements.
  • G90 Galvanized Finish
  • Load Rated for GFCMU and Concrete

Features

  • Does not require wrapping over the truss to achieve allowable loads.
  • Can be field-bent once up to a 45-degree angle for versatile installation.
  • Small bend section reduces interference at member transition points.

Includes

  • 16-Inch Medium Twist Strap
Products specifications
Model Number MTSM16
Length 16 inch
Material Steel
Gauge 16 ga. (54 mil)
Finish Galvanized (G90)
Installation Hex-head Titen Turbo screws
Concrete Strength 2,500 psi (min)
Grout Strength 1,500 psi (min)
*
*
*
