Simpson 16In Medium Twist Strap Zmax

Mfr.: Simpson Strong-Tie
Item #: I090836
Mfr. #: MTS16Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $3.55
i h h

Description

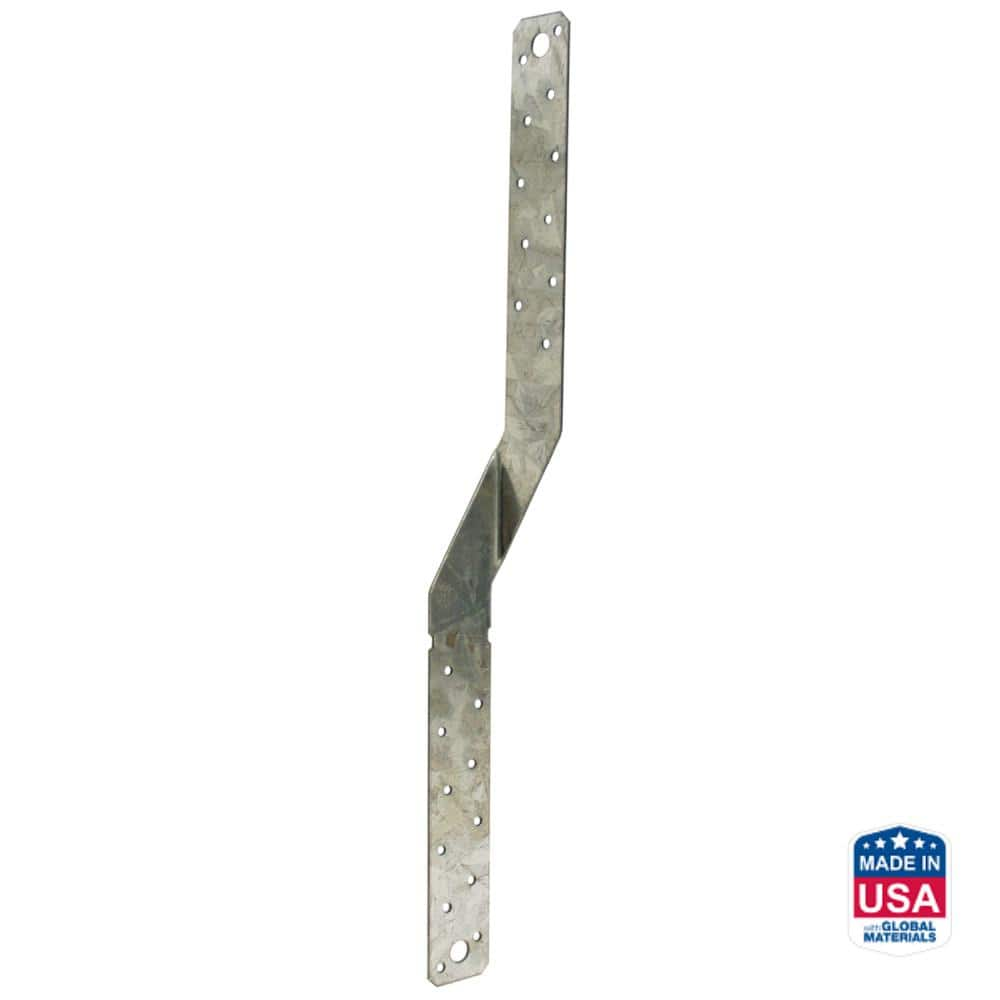

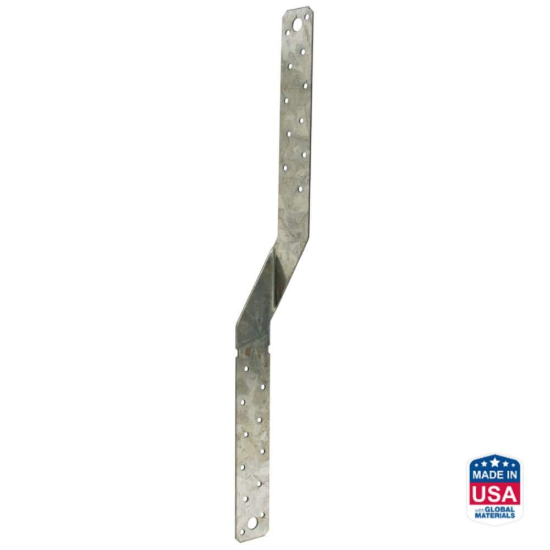

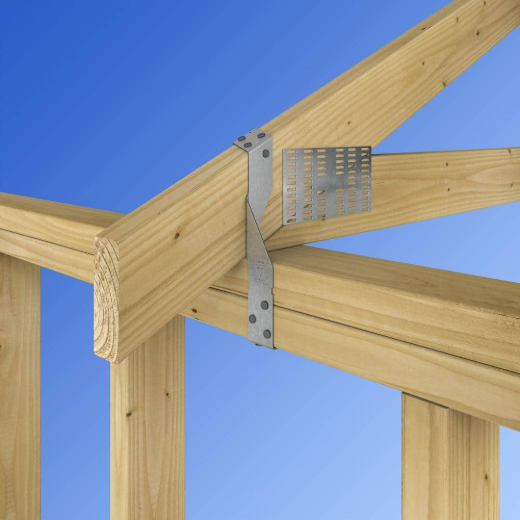

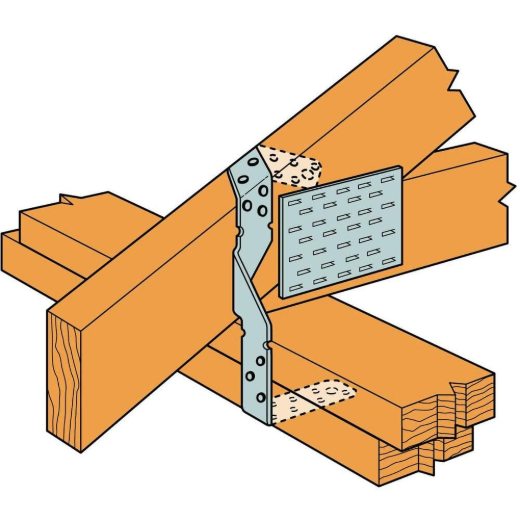

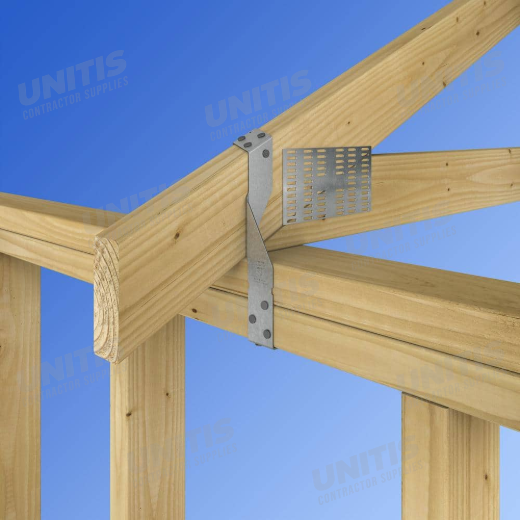

The Simpson Strong-Tie MTS16Z is a 16-inch medium twist strap engineered to provide a secure tension connection between two wood members. It is specifically designed to resist moderate uplift loads at the rafter or heel of a truss, offering an economical and reliable solution for framing. The strap features a specialized 2-inch bend section that minimizes interference at transition points, allowing for efficient installation without wrapping over the truss.
  • ZMAX Galvanized Finish
  • 16-Gauge Steel Construction

Features

  • Provides a robust tension connection between two wood members to prevent uplift.
  • Features a 2-inch bend section to eliminate interference at member transition points.
  • Does not require wrapping over the truss to achieve published allowable loads.
  • G185 ZMAX coating provides extra corrosion resistance for treated lumber applications.

Includes

  • (1) MTS16Z Medium Twist Strap
Products specifications
Model No. MTS16Z
Length 16 inch
Material 16-Gauge Steel
Finish ZMAX (G185 Galvanized)
Fasteners Required 10d Nails or #9 SD Screws
Series MTS Medium Twist Strap
Corrosion Resistance High (ZMAX)
Treated Lumber Compatible
*
*
*
