  • Simpson 18-Gauge 200 Ft. Coiled Strap

Simpson 18-Gauge 200 Ft. Coiled Strap

Mfr.: Simpson Strong-Tie
Item #: I090726
Mfr. #: CS18
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $273.65
i h h

Description

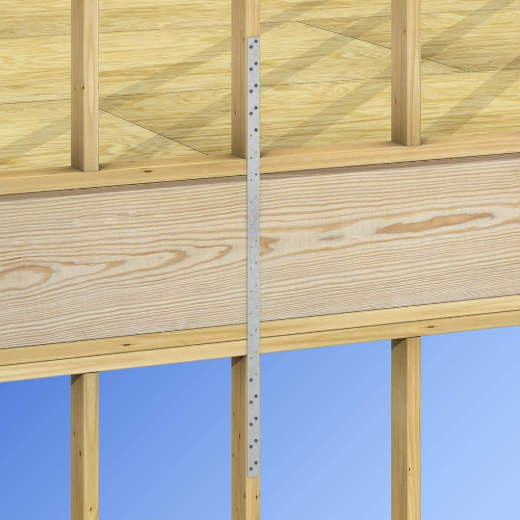

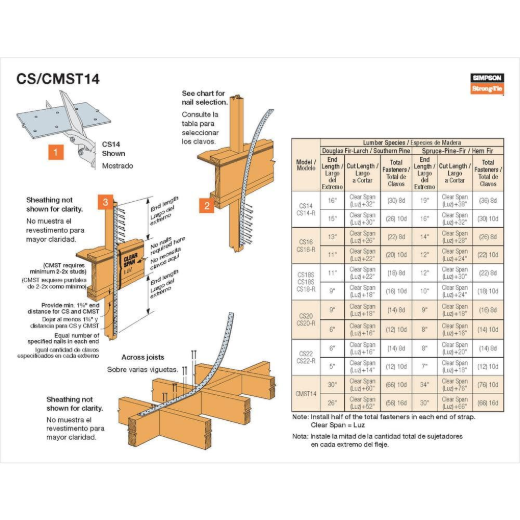

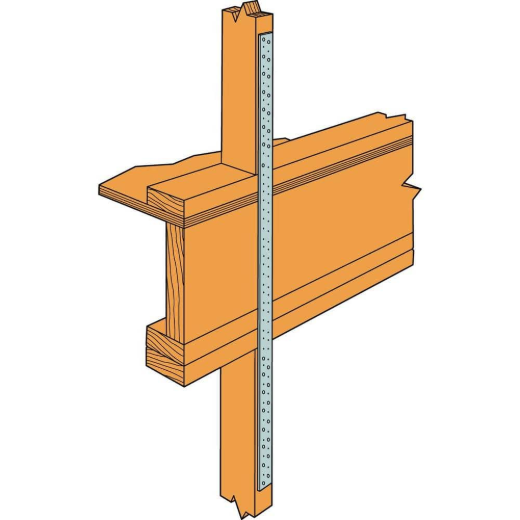

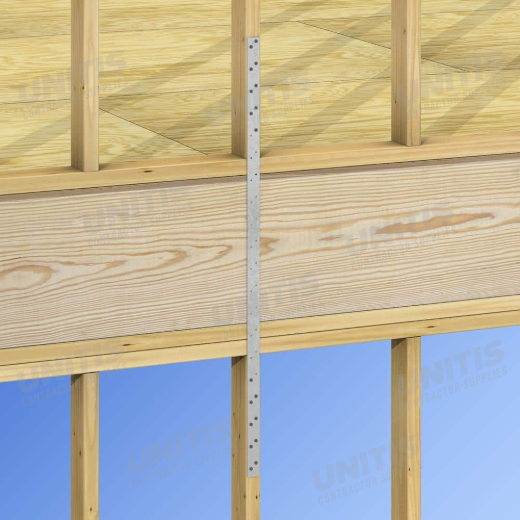

The Simpson Strong-Tie CS18 is a high-performance continuous utility strap engineered to resist tension and uplift loads in wood framing applications. This 200-foot coil provides maximum versatility on the job site, allowing contractors to cut the strap to the exact length required for specific connections. It is an ideal solution for floor-to-floor connections, roof uplift resistance, and reinforcing wall assemblies against lateral forces. By using a continuous roll, builders can reduce waste and eliminate the need to stock multiple pre-cut strap lengths.
  • G90 Galvanized Finish
  • 18-Gauge Carbon Steel

Features

  • Continuous roll design allows for customizable lengths to fit unique framing needs.
  • Sized to fit nominal 2x lumber, making it compatible with standard wood construction.
  • Provides a cost-effective alternative to purchasing various pre-cut strap sizes.
  • Can be used on the wide or narrow face of timber for versatile installation options.

Includes

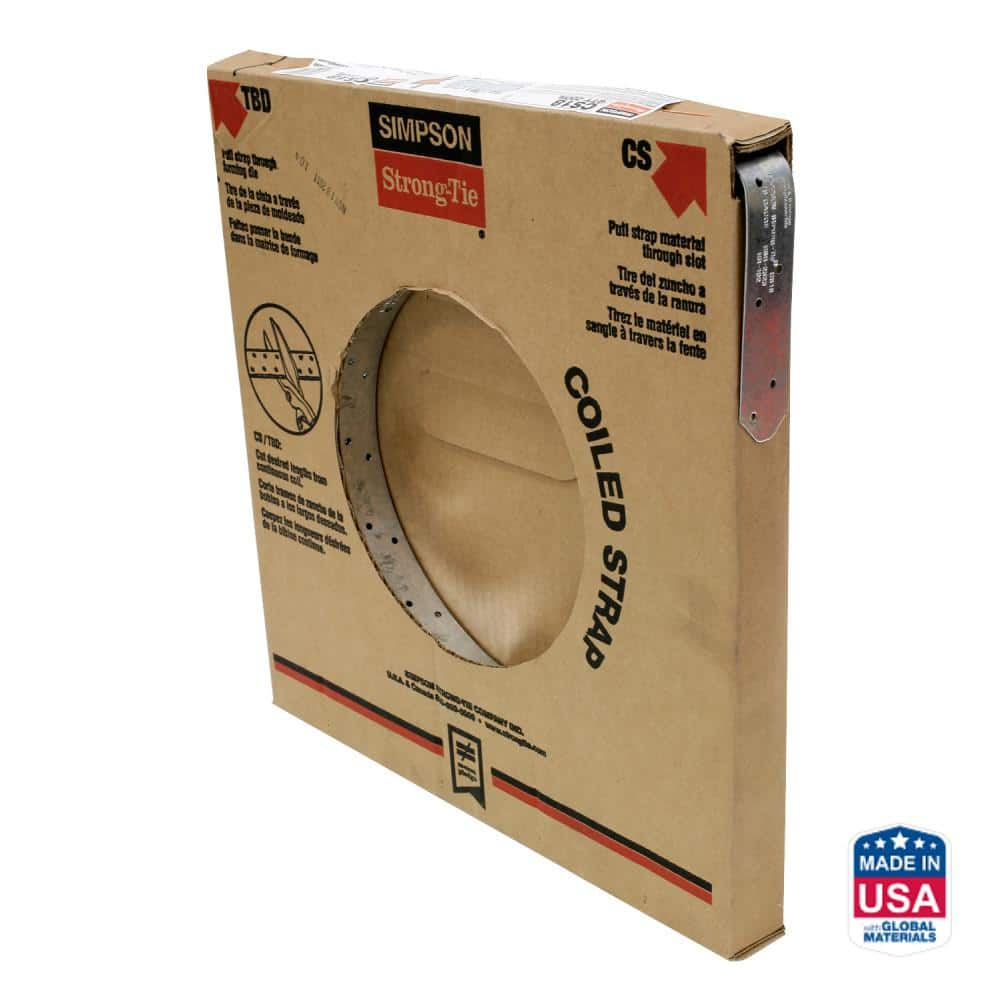

  • (1) 200 ft. Coil of 18-Gauge Galvanized Strap
Products specifications
Material Carbon Steel
Finish G90 Galvanized
Gauge 18 Gauge
Length 200 ft.
Width 1-1/4 inch
Fasteners Required 8d or 10d Common Nails
Product Series CS Coiled Straps
*
*
*
