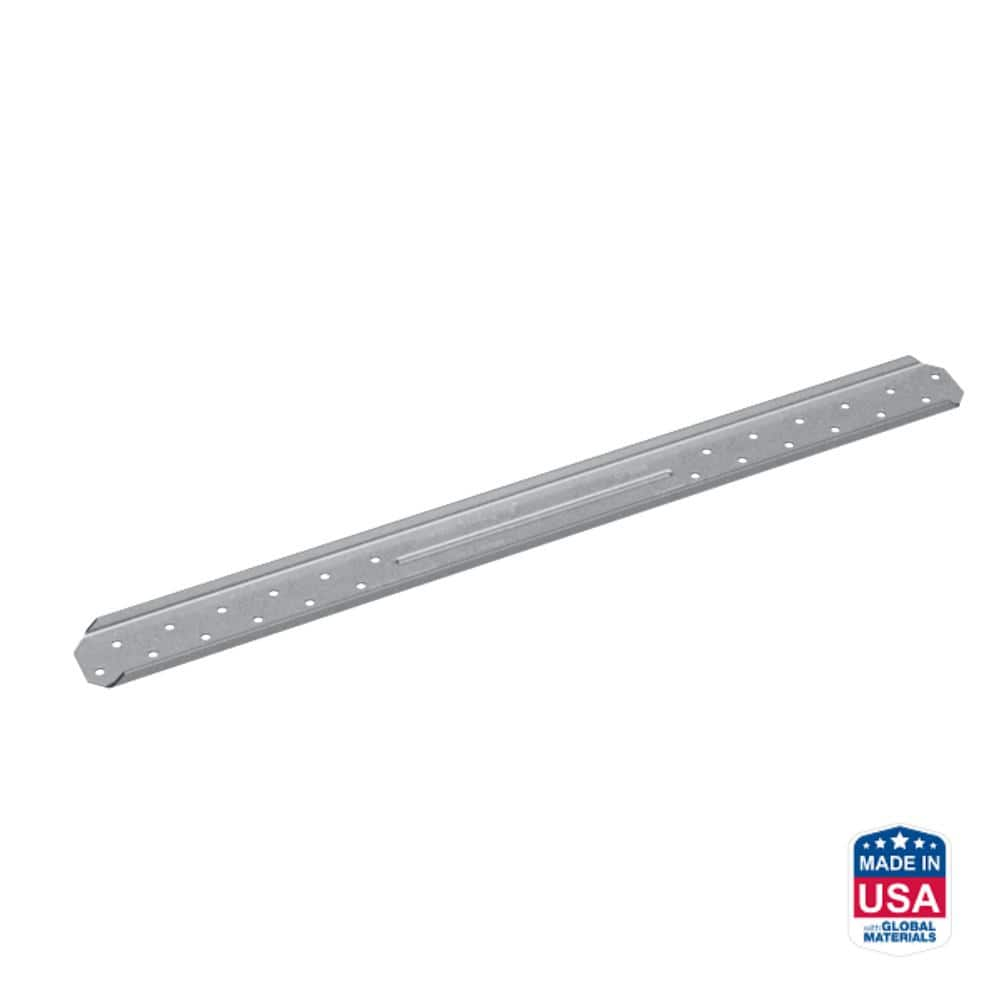

Simpson 18-In. 14-Ga. Compression/Tension Strap

Mfr.: Simpson Strong-Tie
Item #: I090730
Mfr. #: CTS218
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $8.77
i h h

Description

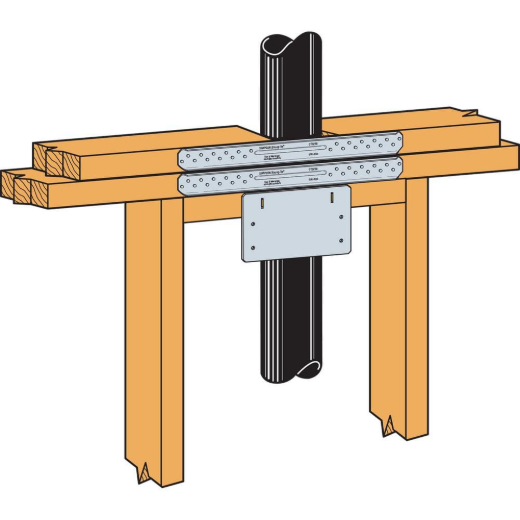

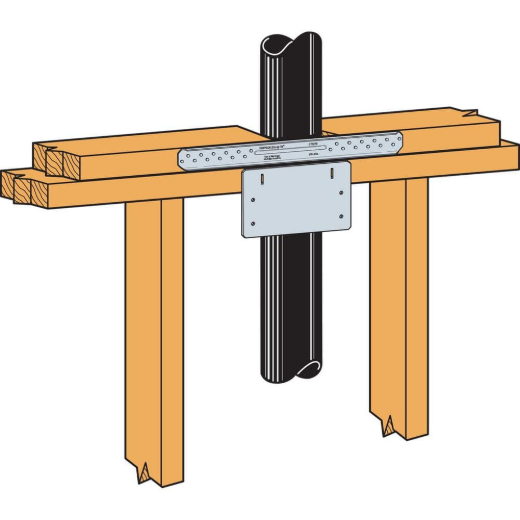

The Simpson CTS218 is a high-performance compression and tension strap engineered to repair and reinforce wood members such as top plates, studs, and trusses. It is uniquely designed to handle both tension and compression loads, providing a versatile solution for structural repairs in residential and commercial construction. The strap features rolled edges that allow it to span gaps as wide as 4-1/2 inches, ensuring stability even in compromised framing. Its slim 1-1/2 inch width makes it ideal for installation on the narrow face of standard 2x lumber.
  • Handles both tension and compression loads
  • Rolled edges span gaps up to 4-1/2 inches
  • 1-1/2 inch width for narrow face installation

Features

  • Meets IBC and IRC requirements for top plate repair
  • G90 galvanized finish for corrosion resistance
  • Tested for various multi-strap configurations
  • Compatible with Strong-Drive SD Connector screws

Includes

  • (1) CTS218 Compression and Tension Strap
Products specifications
Model Number CTS218

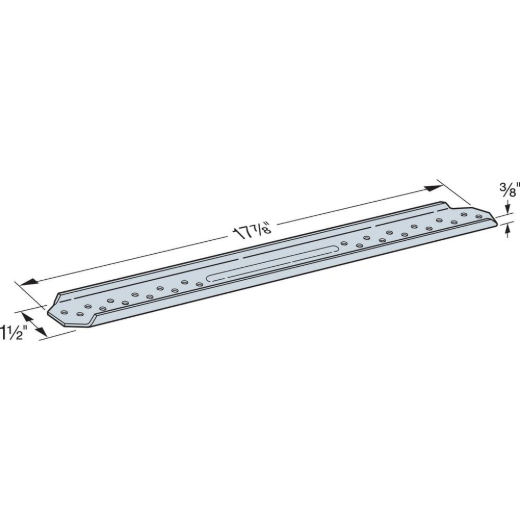

Length 17-7/8 inch
Width 1-1/2 inch
Material 14-Gauge Steel
Finish G90 Galvanized
Fasteners Required (24) 0.148 x 1-1/2 Nails
Alternate Fasteners (24) #9 x 1-1/2 SD Screws
Max Gap Spanned 4-1/2 inch
Code Compliance IBC, IRC
*
*
*
