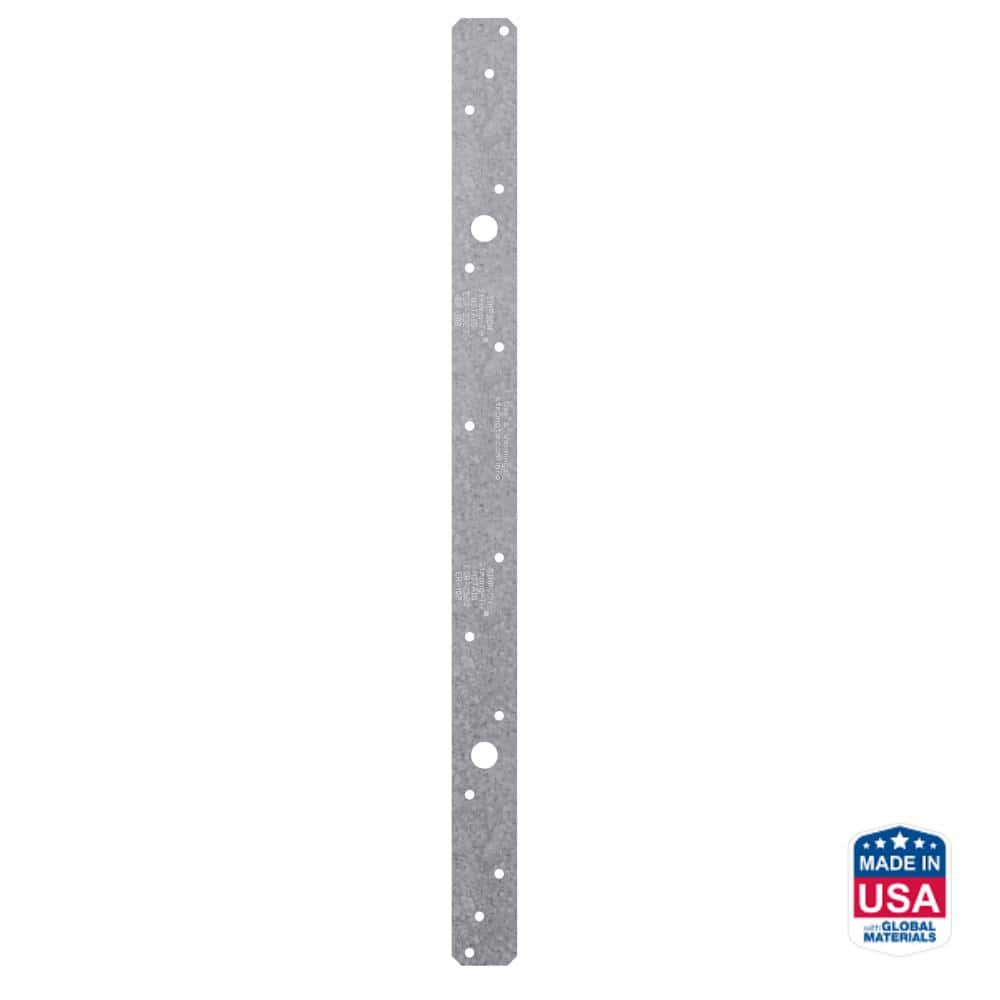

Simpson 18In Medium Strap Tie Zmax

Mfr.: Simpson Strong-Tie
Item #: I090801
Mfr. #: MSTA18Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $3.21
i h h

Description

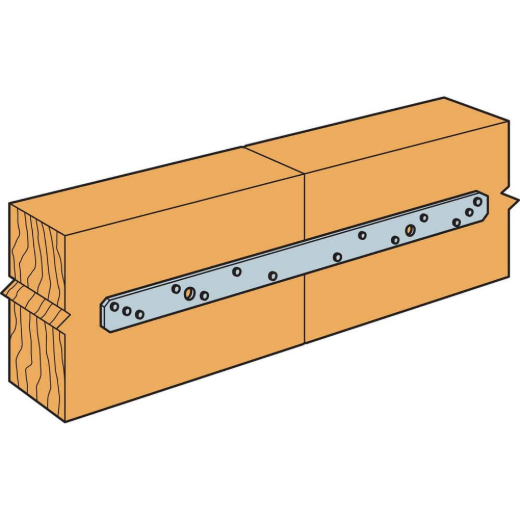

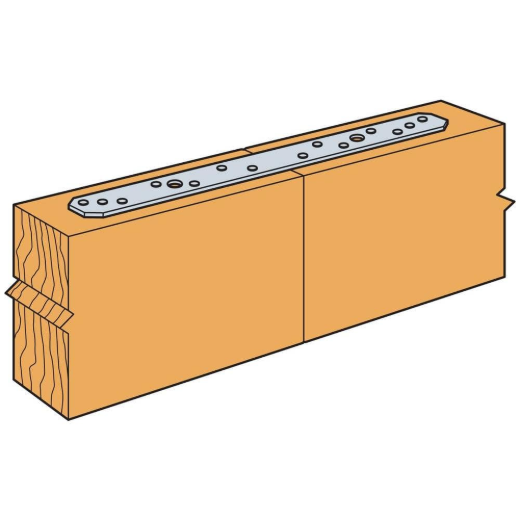

The Simpson Strong-Tie MSTA18Z is a high-performance medium strap tie designed to resist tension loads in wood-to-wood applications. This 18-inch strap is specifically engineered for use on the edge of 2x members and features a staggered nail pattern to minimize the risk of wood splitting during installation. Precut and load-rated, it provides a reliable and efficient solution for floor-to-floor clear span applications and is ideal for resisting wind and seismic forces.
  • ZMAX Galvanized Finish
  • 18-Gauge Steel Construction

Features

  • Staggered nail pattern helps prevent wood splitting and ensures a secure connection.
  • Load-rated and precut for quick, consistent installation compared to field-fabricated straps.
  • ZMAX coating (G185) provides enhanced corrosion resistance for treated lumber and exterior use.

Includes

  • (1) MSTA18Z Medium Strap Tie
Products specifications
Length 18 inch
Width 1-1/4 inch
Gauge 18 Gauge
Material Steel
Finish ZMAX Galvanized
Fasteners Required (14) 0.148 inch x 2-1/2 inch Nails
Load Capacity (DFSP) 1315 lbs
Application Wood-to-Wood Tension
*
*
*
