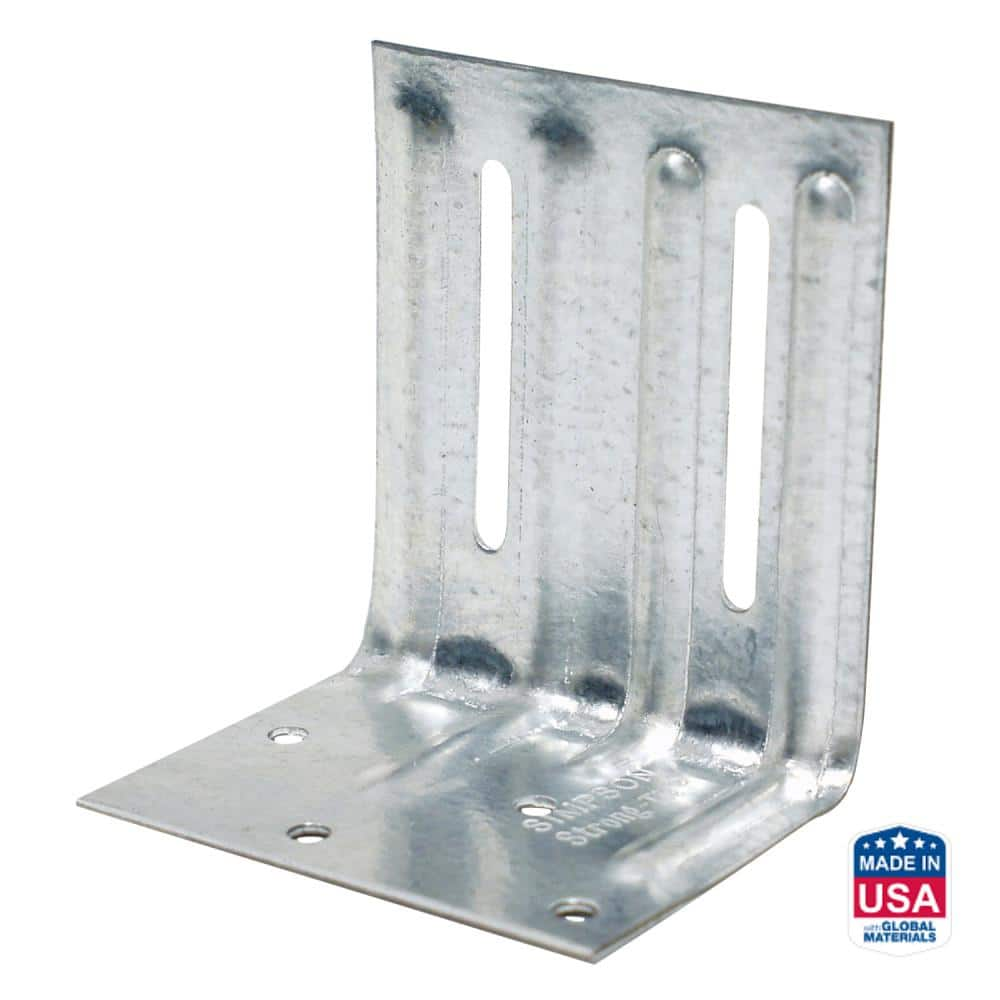

Simpson 2-1/2 inch X 1-7/8 inch X 2-3/4 inch Roof Truss Clip

Mfr.: Simpson Strong-Tie
Item #: I092663
Mfr. #: DTC
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $2.74
i h h

Description

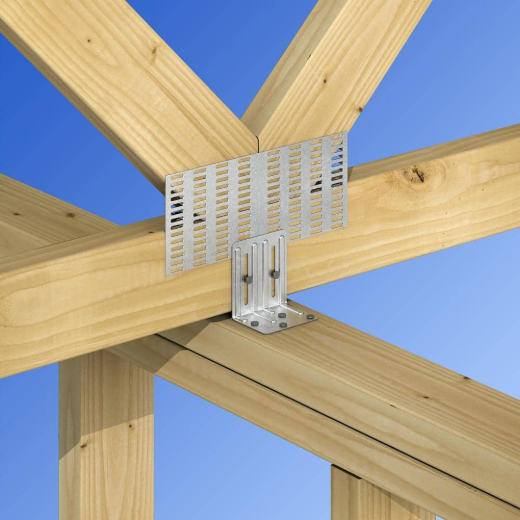

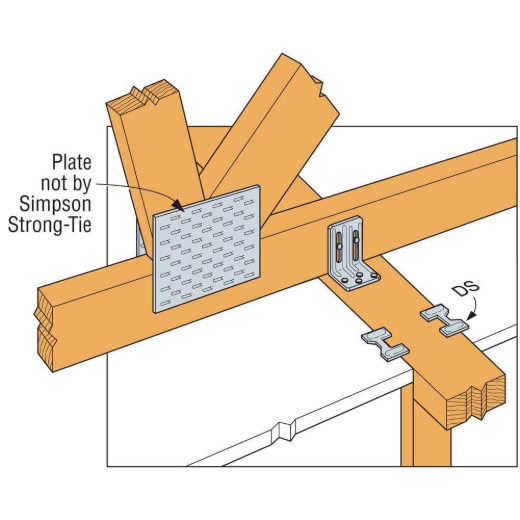

The Simpson Strong-Tie DTC roof truss clip is designed for alignment control between roof trusses and nonbearing walls. It offers a cost-effective solution for light-duty, head-of-wall slide clip applications. The clip allows for controlled movement under load, minimizing stress on fasteners and ensuring long-term stability. Its flexible design accommodates a 1-5/8 inch slot, permitting 3/4 inch movement in each direction, making it ideal for residential and light commercial projects where controlled adjustment is needed.
  • 18-gauge steel construction
  • Galvanized (G90) finish for corrosion resistance

Features

  • Provides alignment control between roof trusses and nonbearing walls.
  • 1-5/8 inch slot permits 3/4 inch vertical movement in each direction under load.
  • Not intended for floor applications due to potential joist deflections and squeaks.

Includes

  • 100 clips per box (check specific product listing for exact quantity)

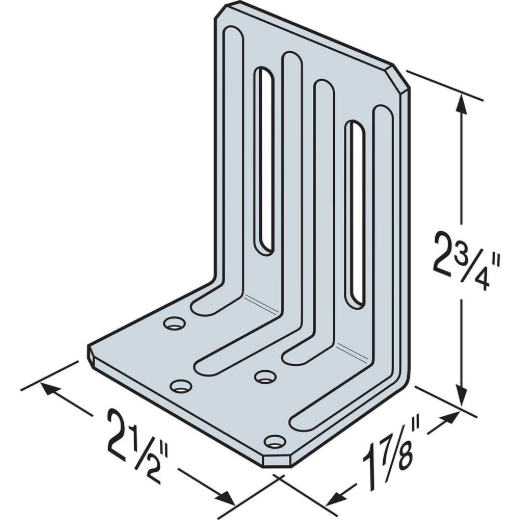

Products specifications
width 2-1/2 inch
height 2-3/4 inch
depth 1-7/8 inch
material 18-gauge steel
slot length 1-5/8 inch
movement 3/4 inch each direction
finish Galvanized (G90)
*
*
*
