Simpson THA - 1-5/8" x 17-3/16" Adjustable Truss Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091929
Mfr. #: THA218
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $11.45
i h h

Description

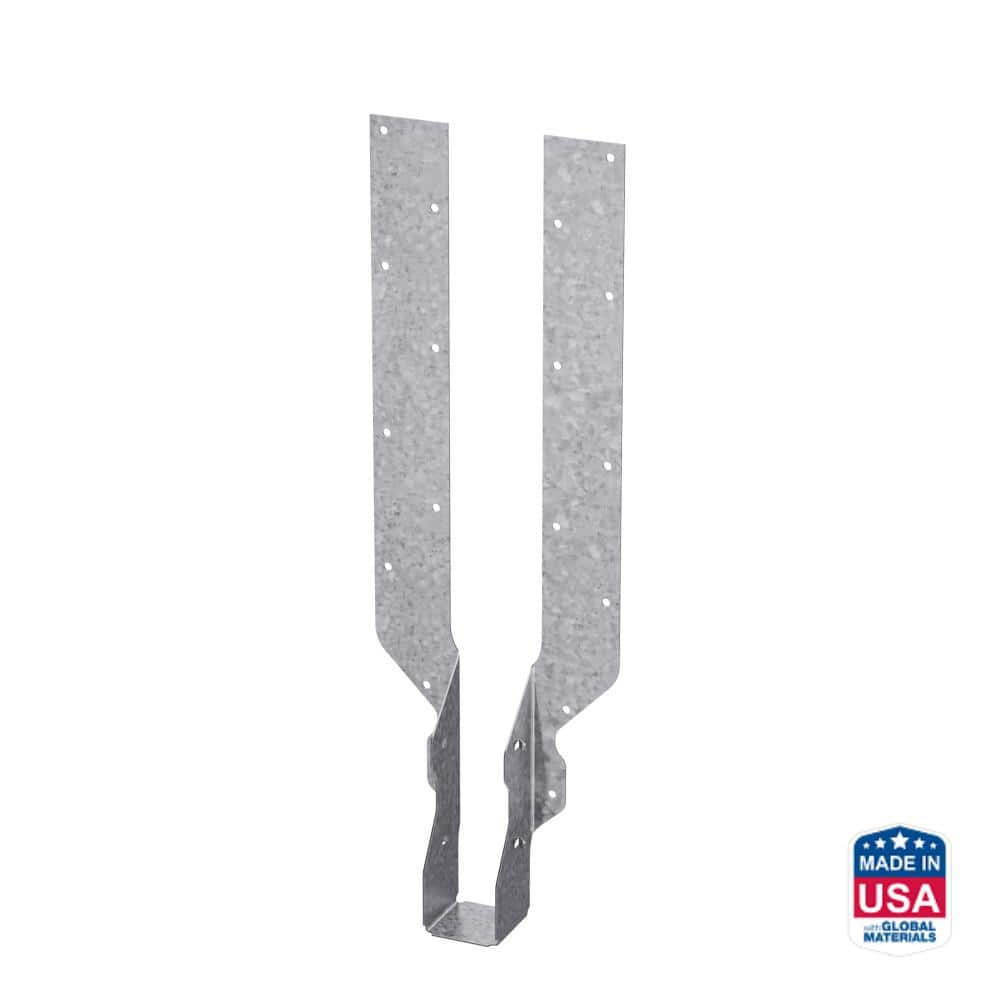

The Simpson Strong-Tie THA218 Adjustable Truss Hanger is a versatile connector designed for secure truss and beam installations. Featuring extra-long, field-formable straps, this hanger allows for both top-flange and face-mount installation, providing essential height adjustability for various framing needs. Its G90 galvanized coating ensures reliable corrosion resistance, while the design helps prevent splitting in the truss bottom chords.
  • Extra-long straps for full code nailing and height adjustability
  • G90 galvanized coating for increased corrosion resistance

Features

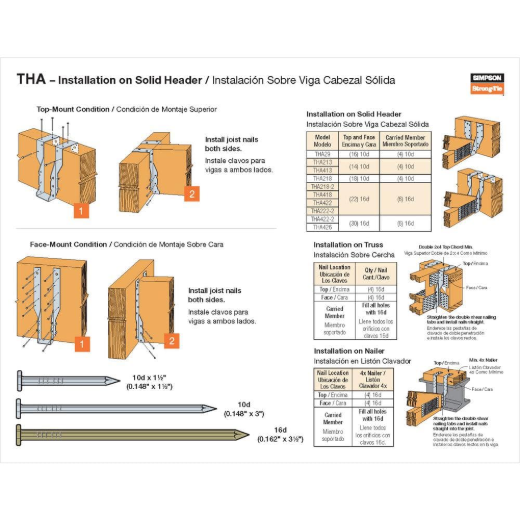

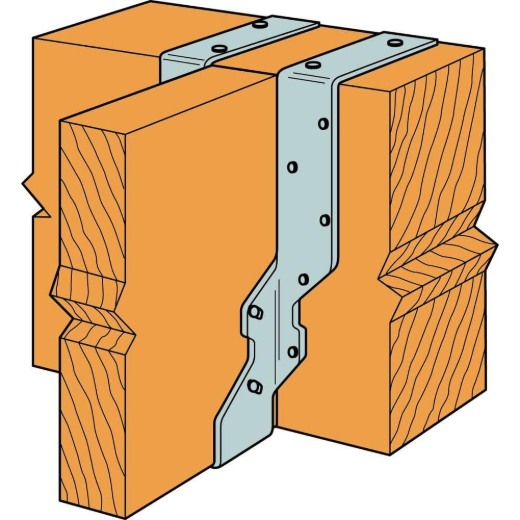

  • Versatile installation as top-flange or face-mount hanger
  • PAN nailing helps eliminate splitting of 4x2 truss bottom chords
  • Field-formable straps for top flange hanger convenience

Includes

  • (1) THA218 Adjustable Truss Hanger
Products specifications
Connector Type Top-Flange Joist Hanger
Country of Origin USA (subject to change)
Finish / Coating Galvanized (G90)
Joist / Lumber Size 2 in x 18 in
Manufacturer's Warranty Limited Lifetime
Material Galvanized Steel
Mount Style Top-Flange
Series THA
Steel Gauge Refer to Manufacturer
*
*
*
