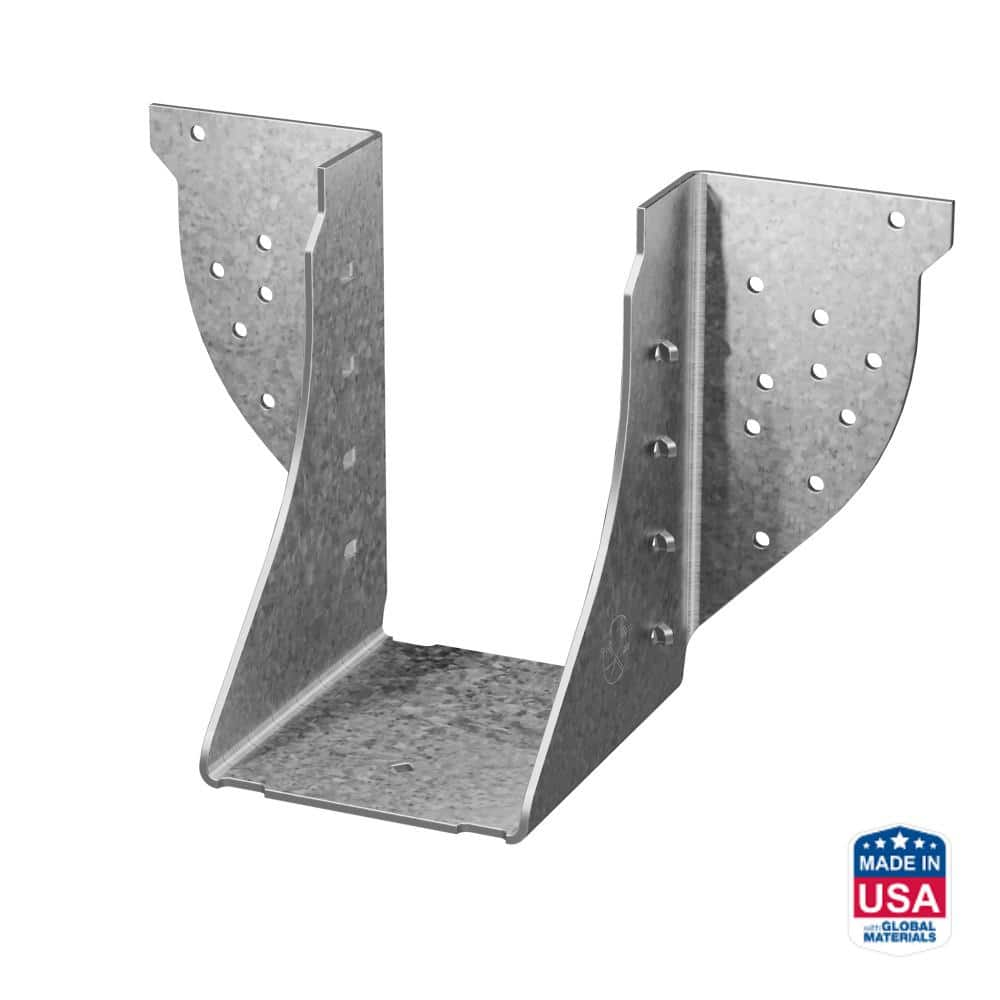

Simpson 2 X 6 Double Face Mount Hanger

Mfr.: Simpson Strong-Tie
Item #: I091288
Mfr. #: HGUS26-2
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $42.73
i h h

Description

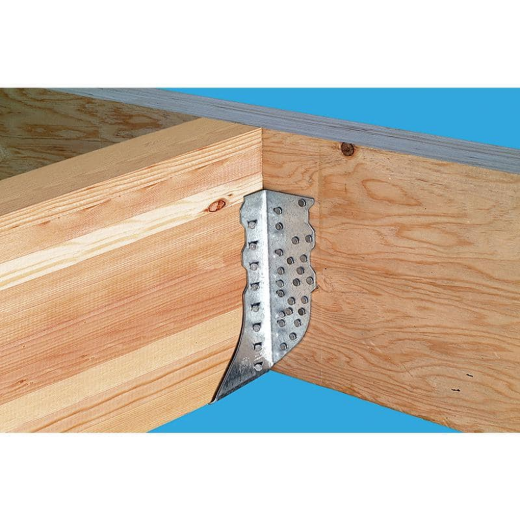

The Simpson Strong-Tie HGUS26-2 is an extra-heavy-capacity face-mount hanger designed for demanding applications requiring robust girder support. Part of the high-performance HGUS series, this connector utilizes patented double-shear nailing to distribute loads through two points on each joist nail for maximum strength. It is an economical, value-engineered solution for high-load residential and commercial framing projects.
  • Heavy 12-Gauge Steel
  • G90 Galvanized Finish

Features

  • Double-shear nailing provides greater strength with fewer fasteners.

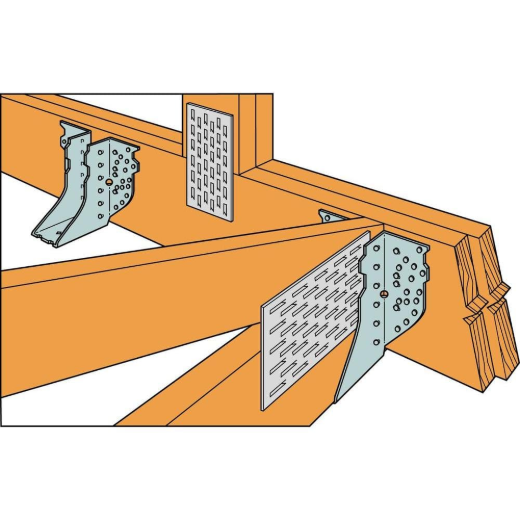

  • Flexible installation allows the hanger to be placed after the beam is secured.
  • Engineered for extra-heavy loads in structural applications.
  • Tested and code-listed for reliable performance and safety.

Includes

  • (1) HGUS26-2 Face Mount Hanger
Products specifications
Material 12-Gauge Steel
Finish G90 Galvanized
Joist Size Double 2x6
Width 3-5/16 inch
Height 5-7/16 inch
Fasteners Required 16d Common Nails or SD Screws
Series HGUS
Mount Type Face Mount
*
*
*
