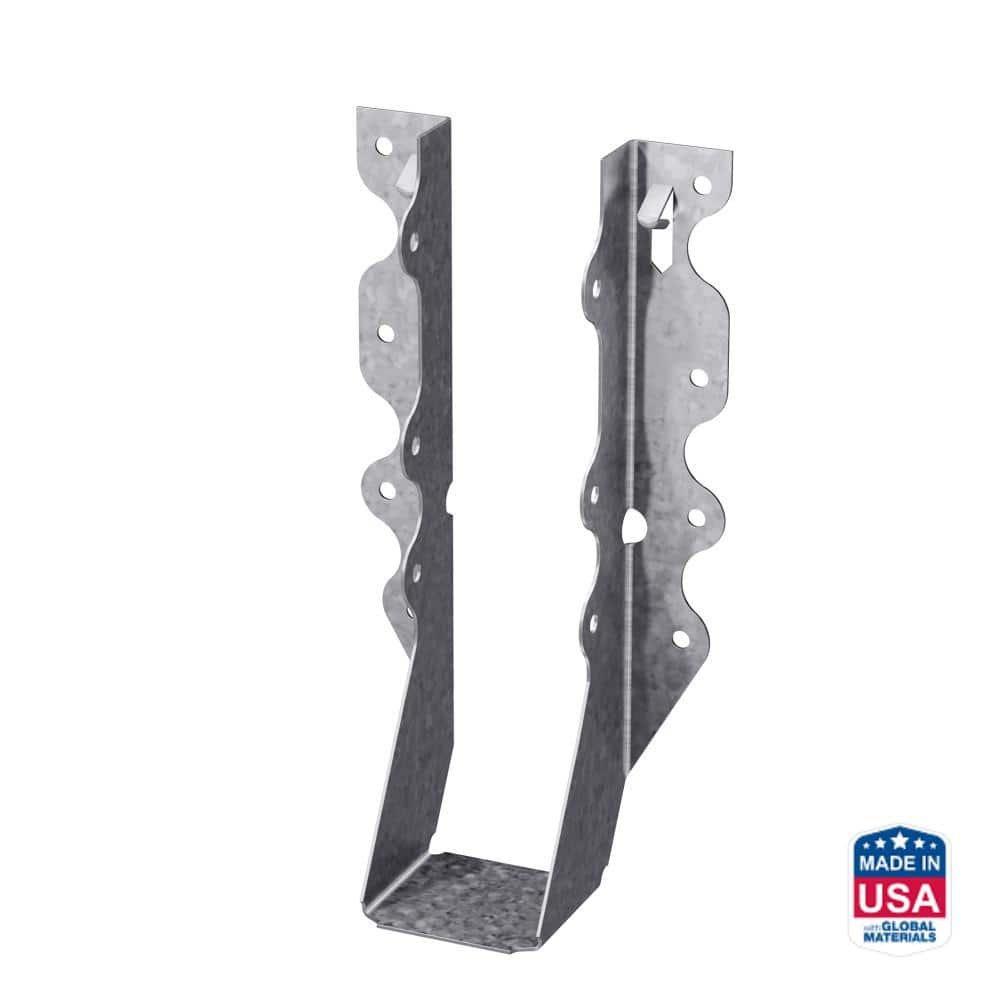

Simpson LU - 2" x 8" Face Mount Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091796
Mfr. #: LU28
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $1.79
i h h

Description

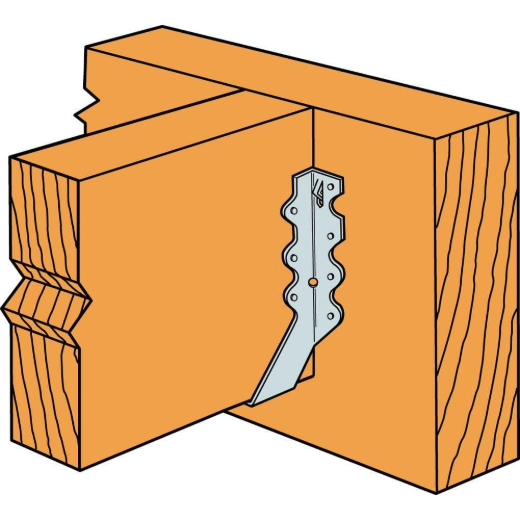

The LU is specifically designed for joist-to-header installation in wood-framed construction. This face-mount hanger features innovative speed prongs that allow you to temporarily position and secure the connector for a faster, easier installation process. Value-engineered for exceptional strength, this economical hanger ensures reliable performance in residential framing applications. It is crafted from high-quality steel with a G90 galvanized finish to provide robust support and long-term corrosion resistance.

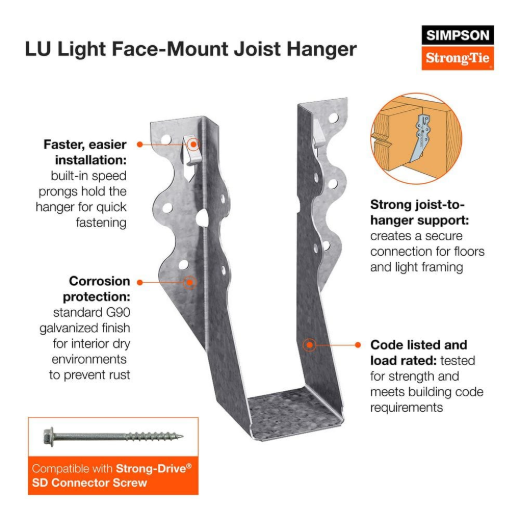

  • Speed prongs for temporary positioning
  • G90 Galvanized coating for corrosion resistance

Features

  • Tested, load-rated, and code-compliant design
  • Precision-formed for installation ease and design value
  • Compatible with several fastener selections for tested allowable loads
Products specifications
Connector Type Face-Mount Joist Hanger
Country of Origin USA (subject to change)
Finish / Coating Galvanized (G90)
Joist / Lumber Size 2 in x 8 in
Manufacturer's Warranty Limited Lifetime
Material Galvanized Steel
Mount Style Face-Mount
Series LU
Steel Gauge 18 ga
*
*
*
