Simpson THASL - 1-5/8" x 9-7/8" Skew Left Adjustable Truss Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091956
Mfr. #: THASL29
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $92.38
i h h

Description

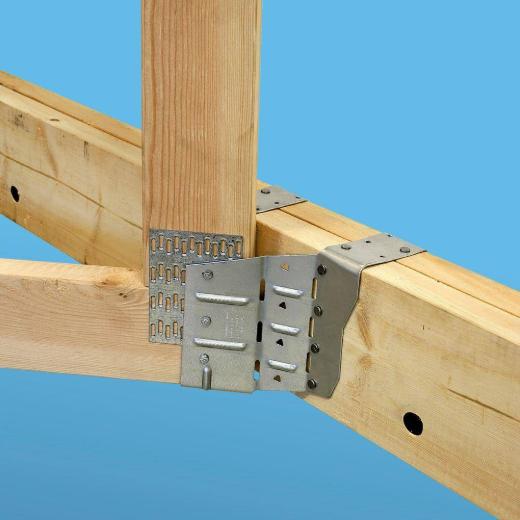

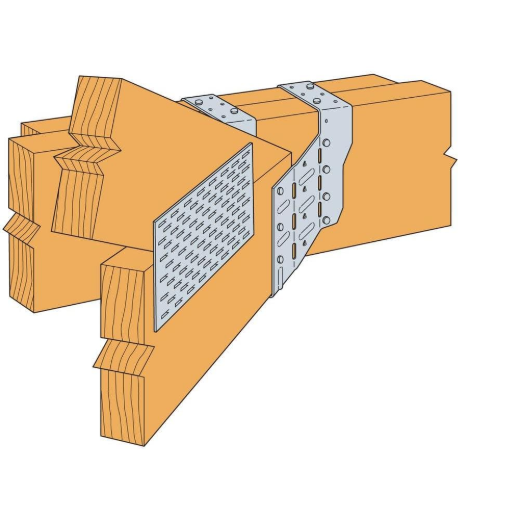

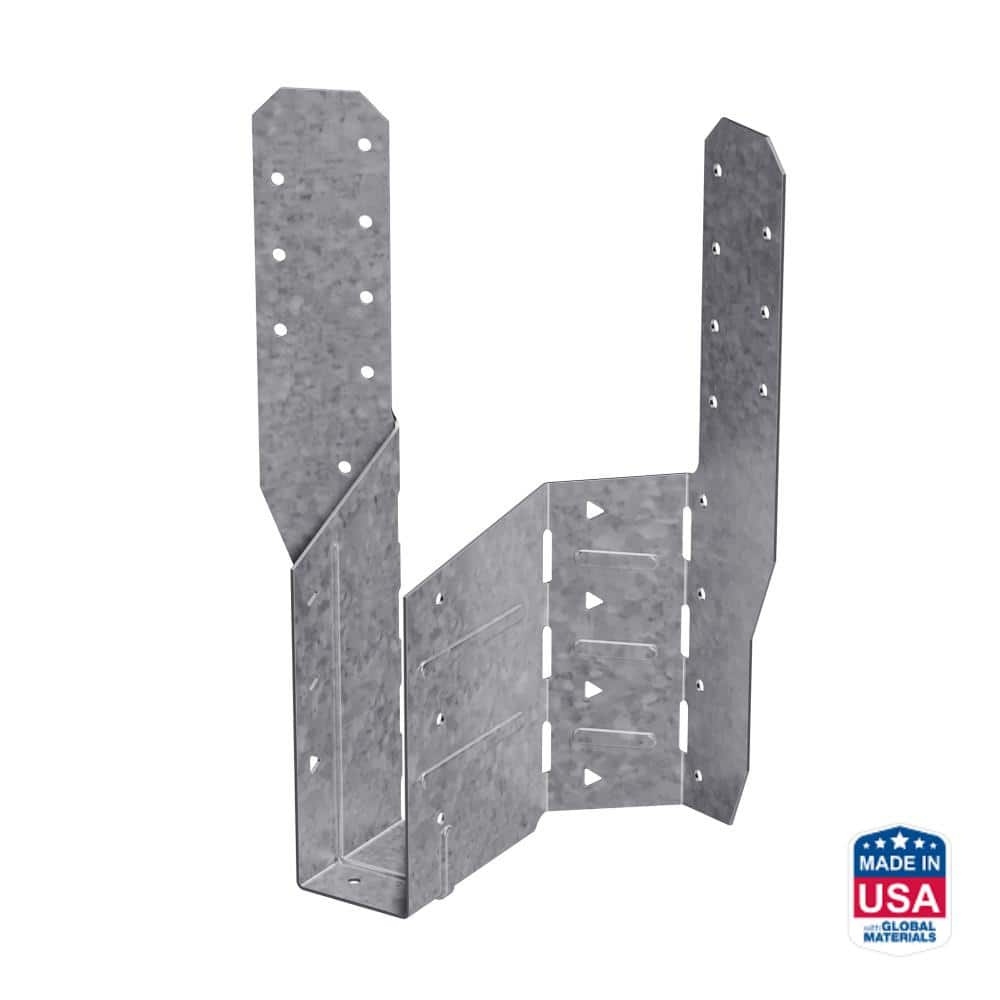

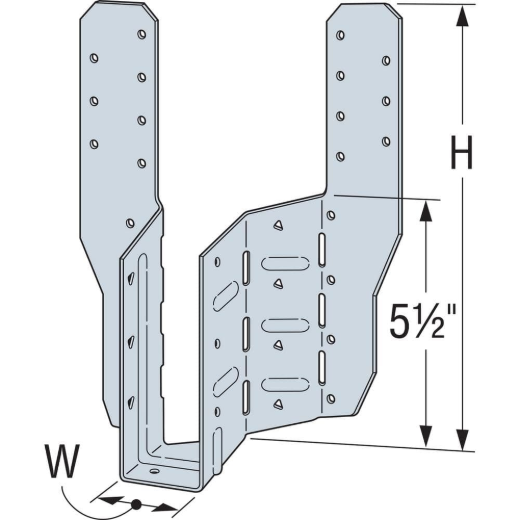

The Simpson THASL29 is a versatile adjustable truss hanger designed to support trusses and beams in wood-framed construction. It combines the height adjustability of the THA series with field skewability, providing maximum flexibility for installers and eliminating the need for special orders. The hanger is factory-shipped at a 22 1/2 degree left skew and can be field-adjusted from 22 1/2 degrees up to 75 degrees.
  • Height adjustability
  • Field skewable from 22 1/2 to 75

Features

  • G90 Galvanized coating for corrosion resistance
  • Rated for installation with nails or Strong-Drive SD Connector screws
  • Single acute side bend line to ease installation
  • Eliminates need for special orders

Includes

  • (1) THASL29 Adjustable Truss Hanger
Products specifications
Connector Type Top-Flange Joist Hanger
Country of Origin USA (subject to change)
Finish / Coating Galvanized (G90)
Joist / Lumber Size 2 in x 9 in
Manufacturer's Warranty Limited Lifetime
Material Galvanized Steel
Mount Style Top-Flange Skewed Left
Series THASL
Steel Gauge Refer to Manufacturer
*
*
*
