  • Simpson 20-Gauge 250-Foot Coiled Strap

Simpson 20-Gauge 250-Foot Coiled Strap

Mfr.: Simpson Strong-Tie
Item #: I090728
Mfr. #: CS20
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $274.46
i h h

Description

The Simpson Strong-Tie CS20 is a versatile, high-performance continuous utility strap designed to provide robust wood-to-wood fastening for a variety of framing applications. This coiled strap can be easily cut to custom lengths on the job site, offering a highly adaptable solution for resisting tension and uplift loads. It is specifically engineered for use in floor-to-floor connections and horizontal applications to enhance structural stability.
  • 20-Gauge Galvanized Steel
  • 250-Foot Continuous Coil

Features

  • Provides a cost-effective alternative to pre-cut straps by allowing for custom lengths.
  • Gauge is clearly stamped on the part for easy identification and inspection.

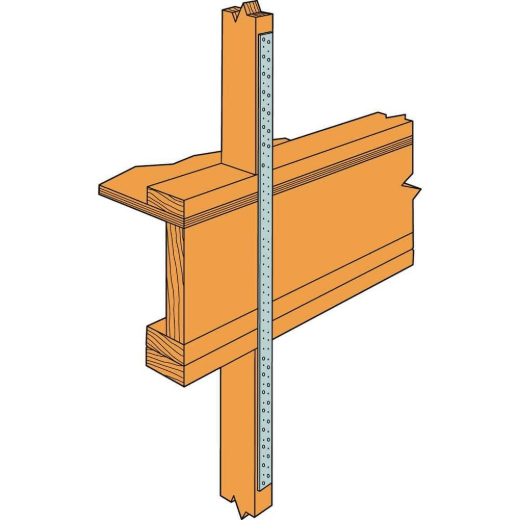

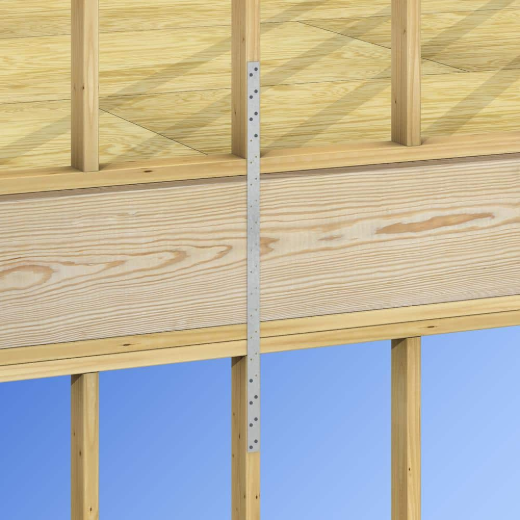

  • Effectively resists roof uplift and shear wall overturning forces in light-frame construction.

Includes

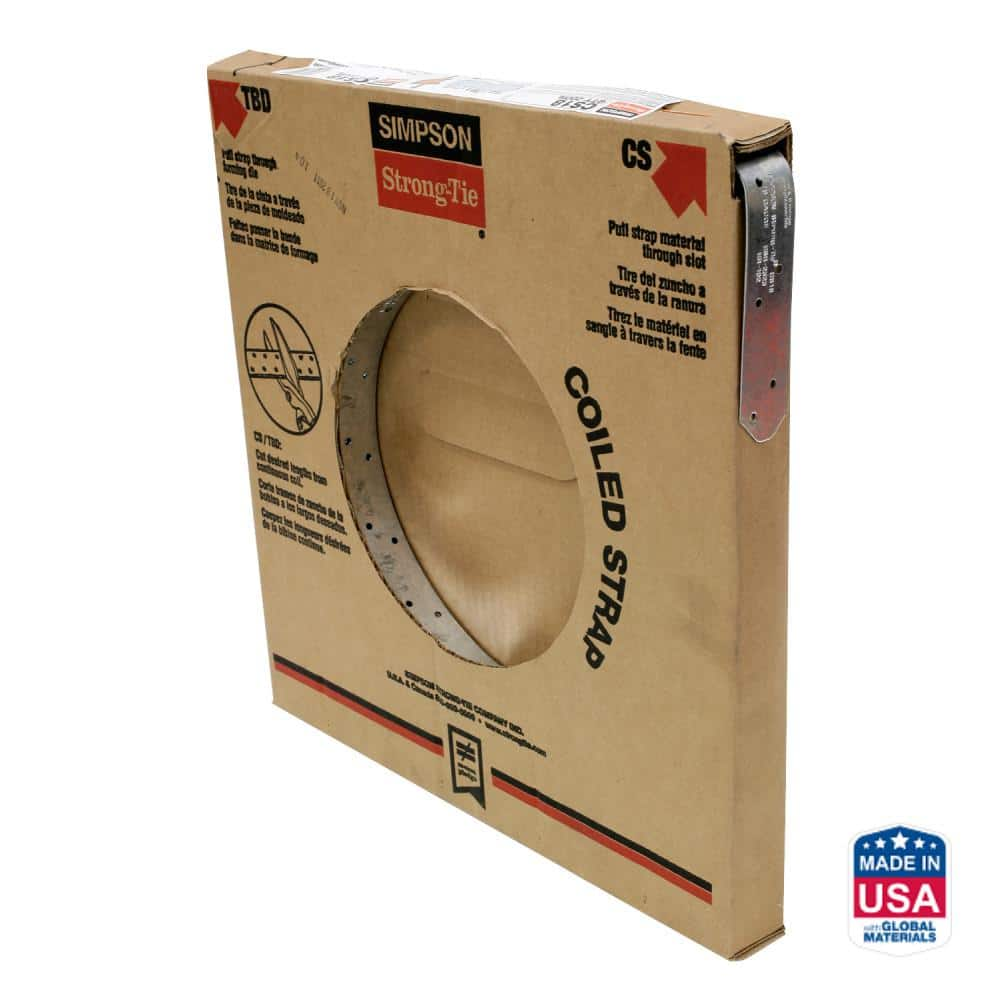

  • (1) 250 ft. Coiled Utility Strap
Products specifications
Material Carbon Steel
Finish Galvanized (G90)
Gauge 20
Width 1-1/4 inch
Length 250 ft.
Series CS Coiled Straps
Product Weight 39 lbs
Fasteners Required 10d or 8d common nails
*
*
*
