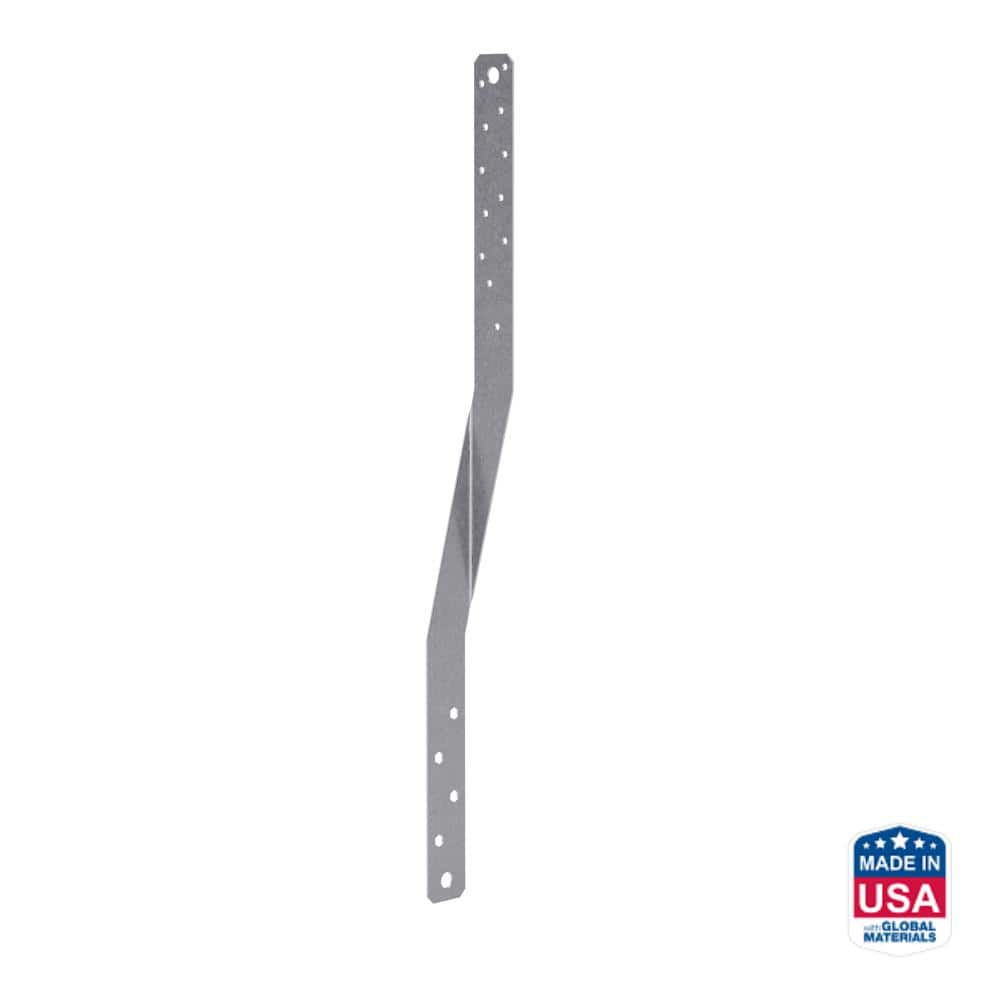

Simpson 20-Inch Heavy Twist Strap For Masonry

Mfr.: Simpson Strong-Tie
Item #: I090765
Mfr. #: HTSM20
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $4.13
i h h

Description

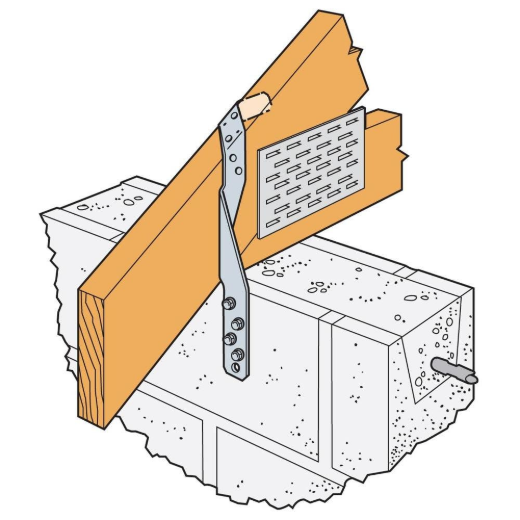

The Simpson Strong-Tie HTSM20 is a heavy-duty twist strap designed to provide high-strength truss-to-masonry connections. This versatile connector is engineered to resist both uplift and lateral forces, making it an economical choice for securing truss heels in demanding environments. It is load-rated for installation on both grout-filled concrete masonry units (GFCMU) and concrete, offering flexibility for various structural projects.
  • G90 Galvanized Coating
  • 14-Gauge Galvanized Steel

Features

  • Eliminates the need to wrap the strap over the truss to achieve allowable loads.
  • Can be field bent once to a 45-degree angle to accommodate specific installation requirements.
  • Provides reliable resistance against both uplift and lateral forces.
  • Attaches to either side of grouted concrete block with minimum one #5 rebar horizontal.

Includes

  • HTSM20 Heavy Twist Strap
Products specifications
Model Number HTSM20
Length 20 inch
Width 1-7/16 inch
Thickness 14 Gauge
Finish G90 Galvanized
Connection Type Wood to Masonry
Fasteners (Wood) 10-0.148 inch x 1-1/2 inch Nails
Fasteners (Masonry) 4-1/4 inch Titen Screws
Uplift Load (DFSP) 1,100 lbs
Uplift Load (SPFHF) 955 lbs
*
*
*
