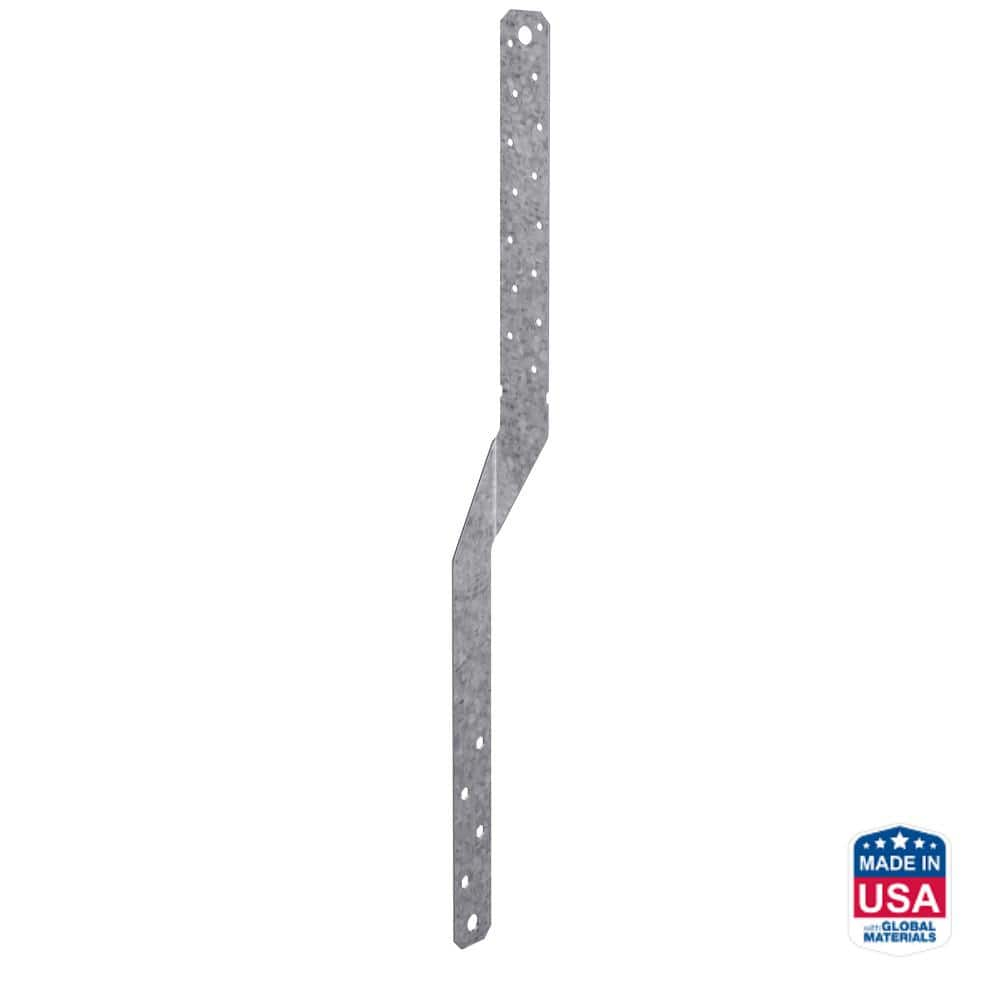

Simpson 20-Inch Medium Twist Strap For Masonry

Mfr.: Simpson Strong-Tie
Item #: I090850
Mfr. #: MTSM20
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $3.23
i h h

Description

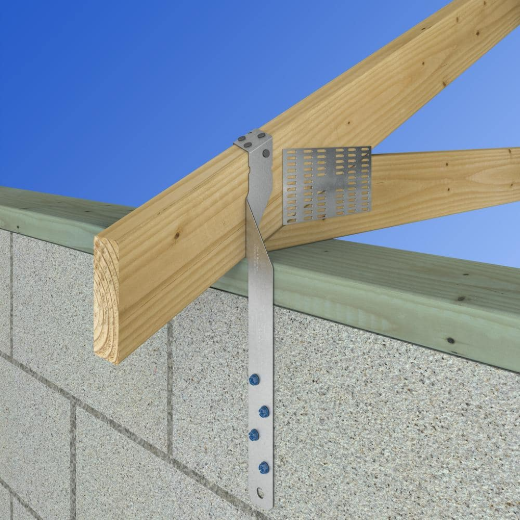

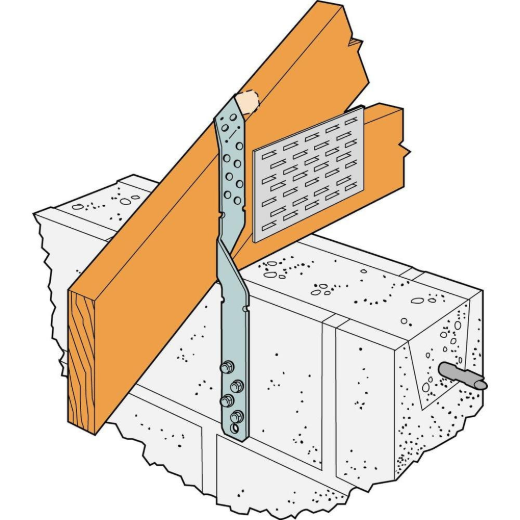

The Simpson Strong-Tie MTSM20 is a medium-duty twist strap designed to provide a reliable, high-strength connection between trusses and masonry walls. As part of the MTSM series, this connector is engineered to resist uplift and lateral forces, providing an economical solution for securing truss heels at the wall intersection. The G90 galvanized finish ensures long-lasting corrosion resistance, making it suitable for installation on both grout-filled concrete masonry units (GFCMU) and concrete.
  • G90 Galvanized Finish
  • 16-Gauge Steel Construction

Features

  • Straps do not need to be wrapped over the truss to achieve the allowable load.
  • Can be field bent once to a 45-degree angle to accommodate specific site conditions.
  • Features a small bend section to reduce interference at member transition points.

Includes

  • (1) MTSM20 Twist Strap
Products specifications
Model Number MTSM20
Material 16-Gauge Steel
Finish G90 Galvanized
Length 20 Inches
Width 1.432 Inches
Connection Type Truss to Masonry
Fastener Required Titen Screws or Nails
*
*
*
