Simpson 22-Gauge 300-Ft. Coiled Strap

Mfr.: Simpson Strong-Tie
Item #: I090729
Mfr. #: CS22
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $273.65
i h h

Description

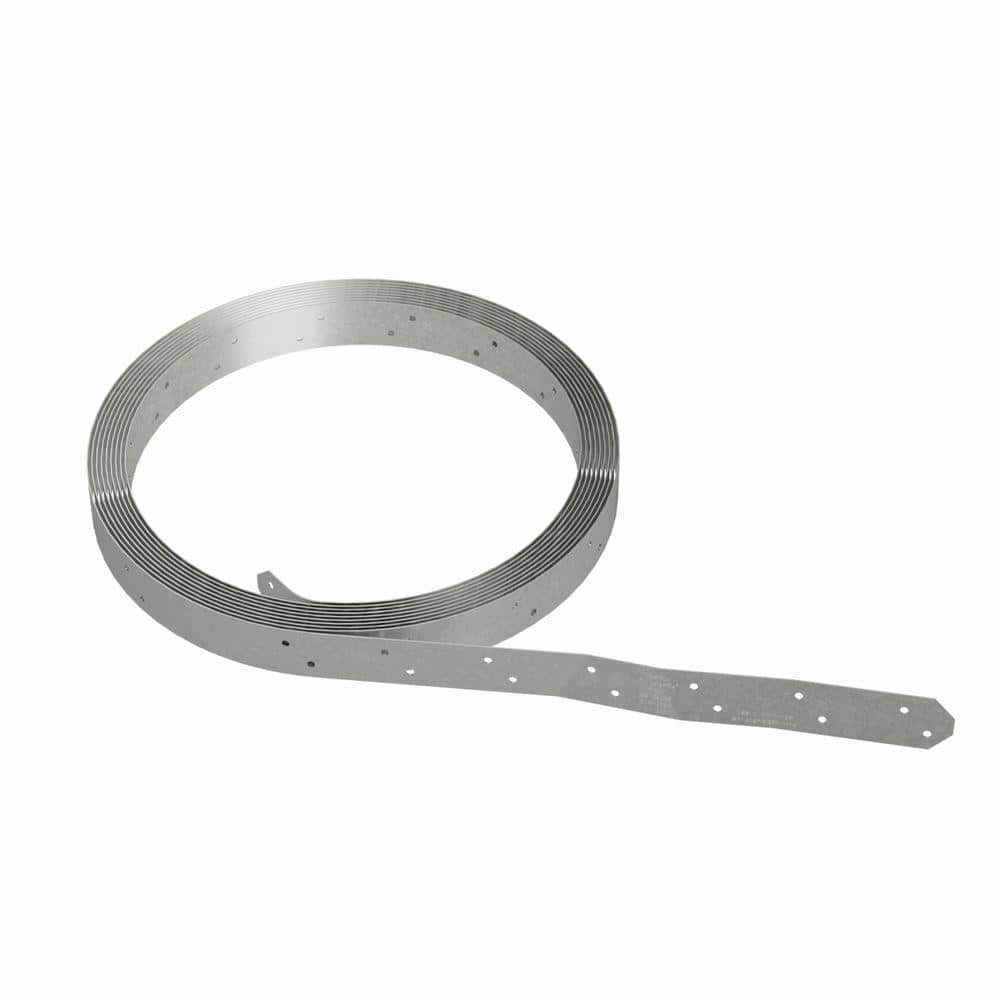

The Simpson Strong-Tie CS22 is a continuous coiled utility strap engineered to provide tension and uplift resistance in various wood-framed construction projects. Its versatile, field-cuttable design allows for custom lengths on the job site, effectively serving as a cost-effective alternative to maintaining stock of multiple pre-cut strap sizes. Constructed from 22-gauge steel with a G90 galvanized finish, it offers dependable strength and corrosion protection for interior applications. This strap is particularly well-suited for roof-to-wall connections, floor-to-floor ties, and general framing reinforcement.
  • G90 Galvanized Finish
  • Field-Cuttable Design

Features

  • Continuous 300-foot length provides maximum flexibility for custom applications and reduces material waste.
  • Fabricated from high-quality 22-gauge steel to deliver up to 845 lbs of allowable tension load capacity.
  • G90 galvanization provides essential corrosion resistance suitable for interior framing and light repairs.

Includes

  • (1) 300-ft. Coil of CS22 Strap
Products specifications
Model No. CS22
Gauge 22
Length 300 ft.
Width 1-1/4 inch
Material Carbon Steel
Finish Galvanized (G90)
Allowable Tension 845 lbs.
Fasteners 10d or 8d Common Nails
*
*
*
