Simpson 23-5/16-In. 16-Gauge Strap Tie

Mfr.: Simpson Strong-Tie
Item #: I090874
Mfr. #: ST6224
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $7.21
i h h

Description

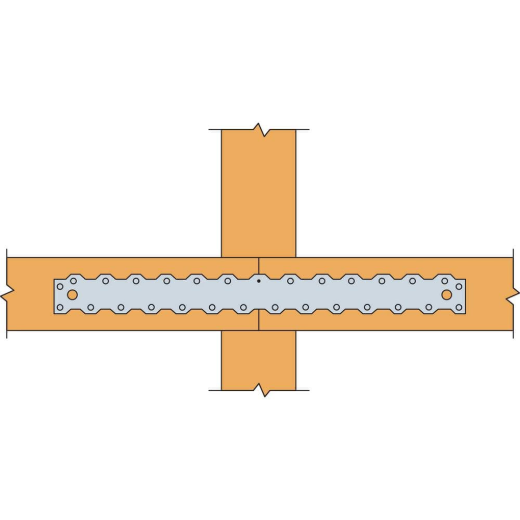

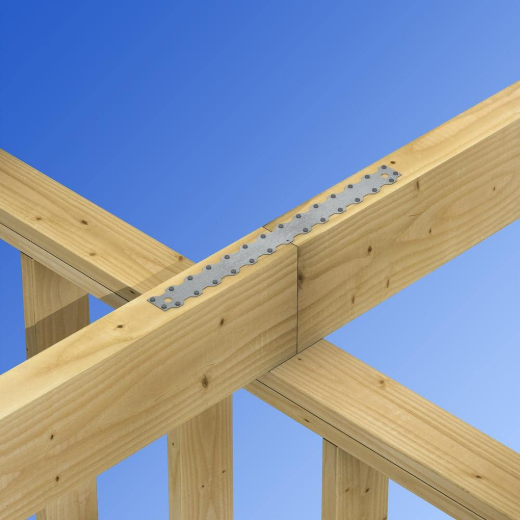

The Simpson Strong-Tie ST6224 is a heavy-duty 16-gauge strap tie engineered to resist tension loads in a variety of wood framing applications. This load-rated, pre-cut strap is an ideal solution for reinforcing wall intersections, ridge ties, and areas where top or bottom plates have been cut. Designed for edge-use on 2x members, it features a specialized nailing pattern that minimizes the potential for wood splitting while ensuring a secure connection.
  • G90 Galvanized Coating
  • 16-Gauge Steel Construction

Features

  • Engineered to resist wind and seismic forces in structural wood-to-wood connections.
  • Pre-punched holes provide quick and accurate fastener placement for efficient installation.
  • The G90 galvanized finish offers excellent corrosion resistance for long-term durability.

Includes

  • (1) ST6224 Strap Tie
Products specifications
Model No. ST6224
Series ST Series
Length 23-5/16 inch
Width 2-1/16 inch
Thickness 16 Gauge
Material Steel
Finish G90 Galvanized
Fasteners Required (28) 0.162 inch x 2-1/2 inch Nails
Load Capacity 2,535 lbs (Tension)
*
*
*
