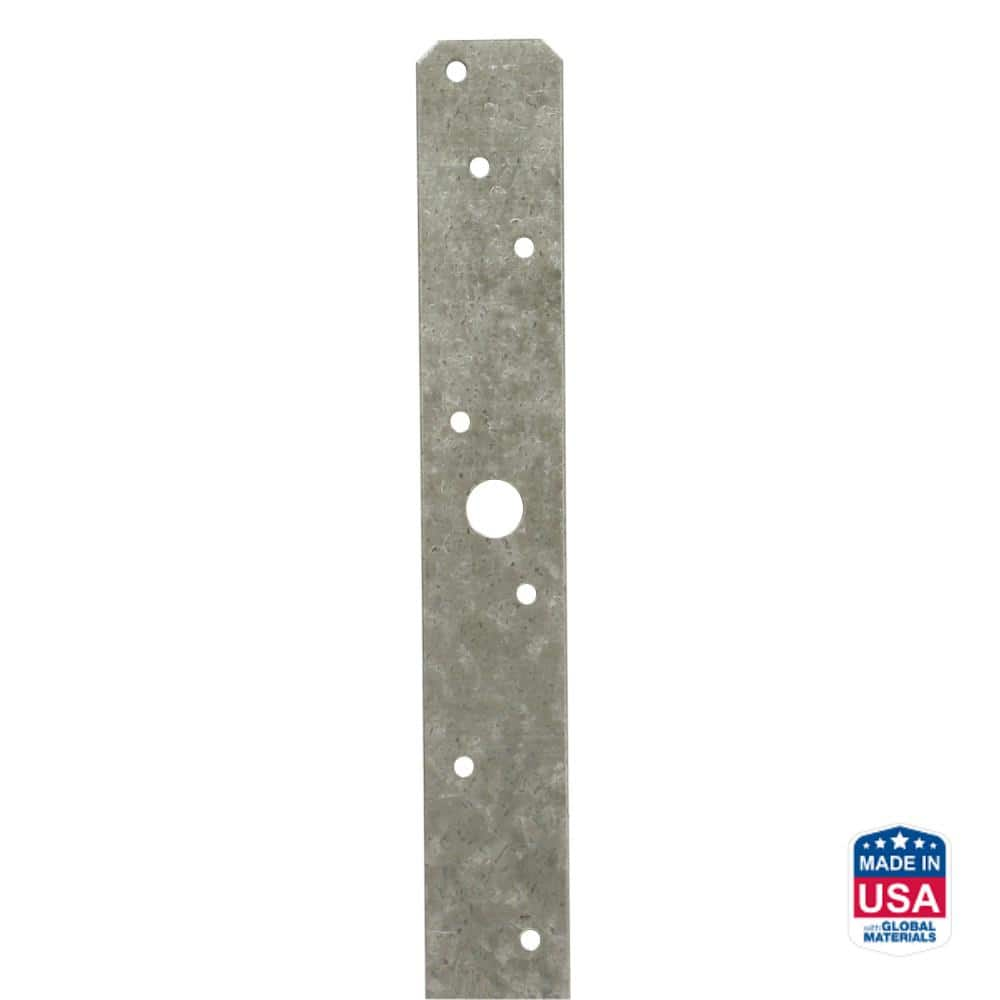

Simpson 24-Inch 18-Gauge Medium Strap Tie

Mfr.: Simpson Strong-Tie
Item #: I090804
Mfr. #: MSTA24
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $2.91
i h h

Description

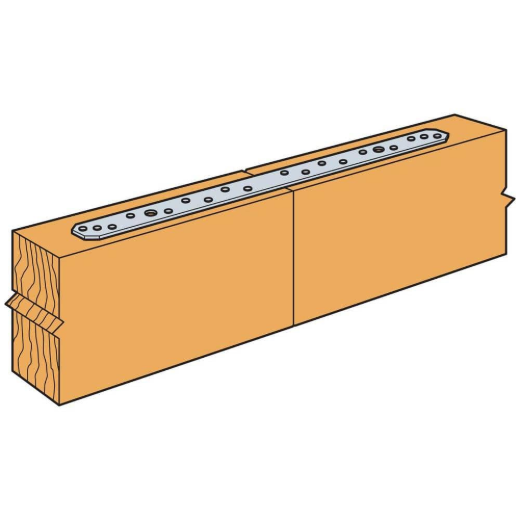

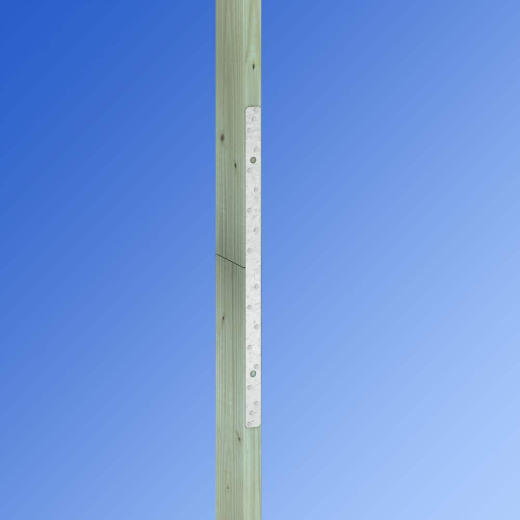

The Simpson Strong-Tie MSTA24 is a medium-duty strap tie designed to resist tension loads in wood-to-wood applications. This versatile connector is ideal for floor-to-floor clear span applications and is engineered to be used on the edge of 2x members. By providing a load-rated solution, it ensures structural integrity against wind and seismic forces while simplifying installation compared to field-fabricated straps.
  • G90 Galvanized Finish
  • 18-Gauge Steel Construction

Features

  • Features a staggered nail pattern designed to minimize wood splitting during installation.
  • Pre-punched holes allow for quick and accurate fastener placement for optimal performance.
  • Load-rated for specific tension values to meet code requirements for wind and seismic uplift.
Products specifications
Material 18-Gauge Steel
Finish G90 Galvanized
Length 24 inch
Width 1-1/4 inch
Thickness 0.046 inch
Fasteners Required 10d Common Nails
Application Wood-to-Wood
Product Type Medium Strap Tie
*
*
*
