Simpson 24In Medium Strap Tie Zmax

Mfr.: Simpson Strong-Tie
Item #: I090805
Mfr. #: MSTA24Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $3.88
i h h

Description

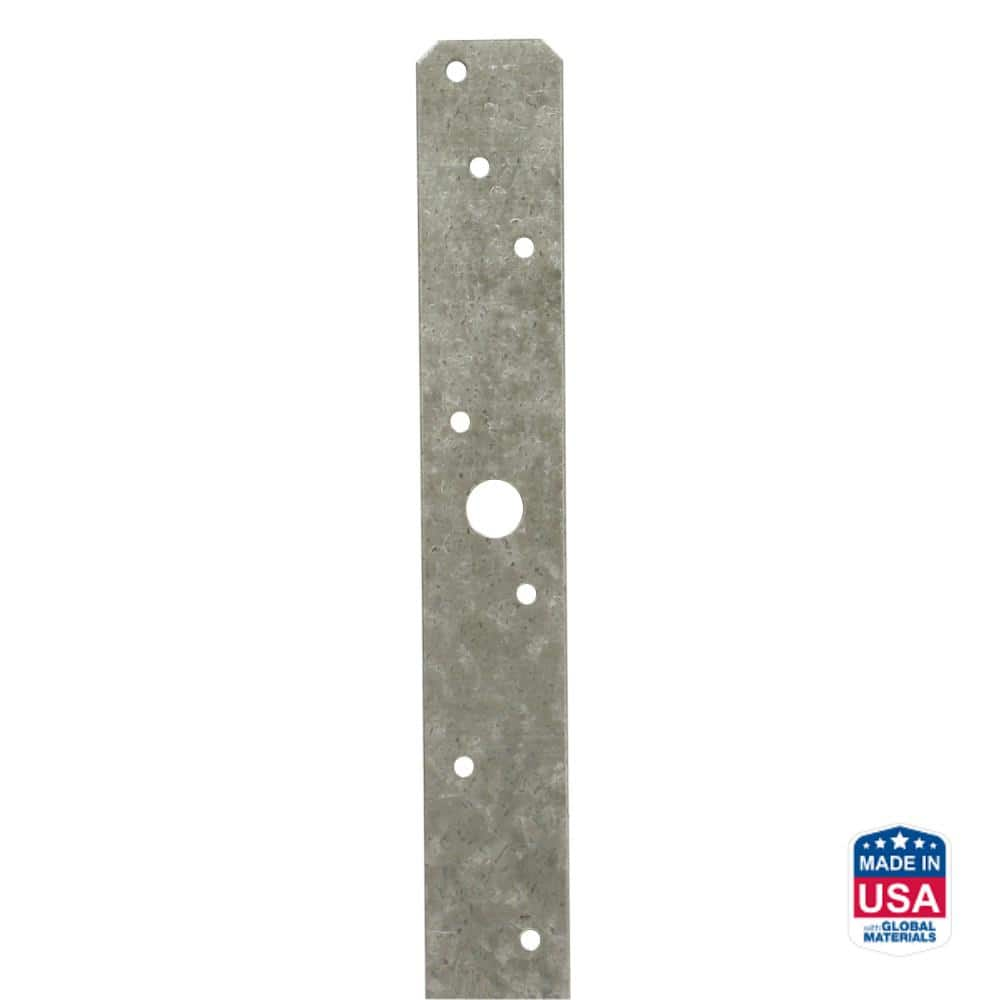

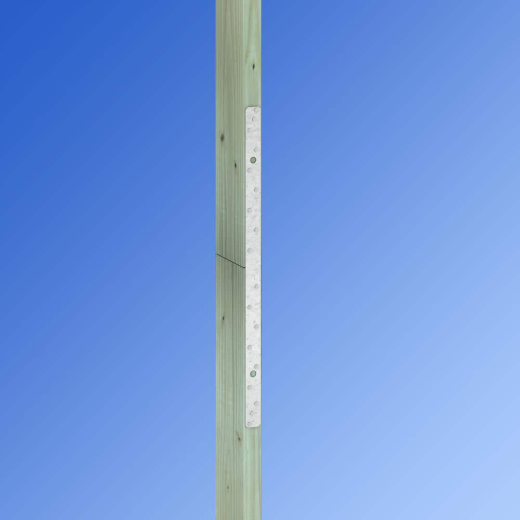

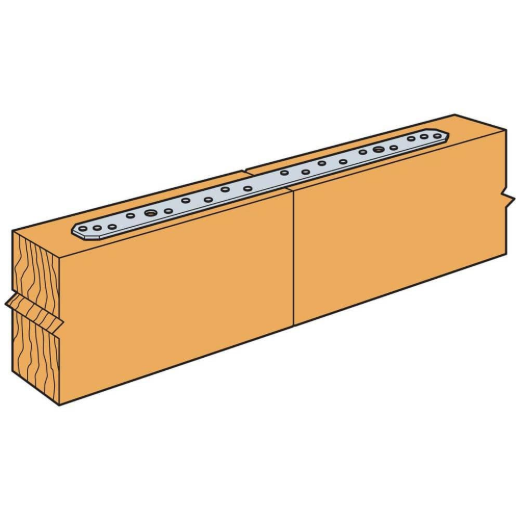

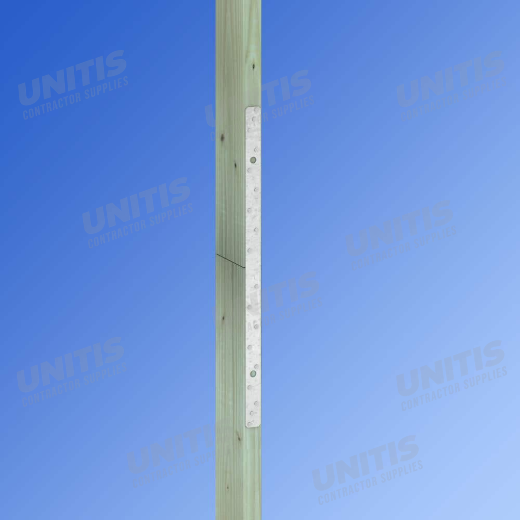

The Simpson Strong-Tie MSTA24Z is a 24-inch medium strap tie designed to resist tension loads in wood-to-wood uplift applications. Engineered for use on the edge of 2x members, it provides a reliable load-rated connection for floor-to-floor clear span framing. The strap's ZMAX galvanization ensures high corrosion resistance, making it suitable for exterior or treated-wood environments.
  • ZMAX Galvanized Finish
  • 18-Gauge Steel Construction

Features

  • Staggered nail pattern helps minimize wood splitting when fastened to framing members.
  • Load-rated for wind and seismic forces to ensure structural integrity during high-stress events.
  • Pre-cut and pre-punched for quick installation compared to field-fabricated straps.

Includes

  • (1) Medium Strap Tie (MSTA24Z)
Products specifications
Brand Simpson Strong-Tie
Model MSTA24Z
Length 24 inch
Width 1-1/4 inch
Material 18-Gauge Steel
Finish ZMAX Galvanized
Fasteners Required (18) 0.148 inch x 2-1/2 inch Nails
Application Wood-to-Wood Uplift
Corrosion Resistance High (G185)
Treated Lumber Approved
*
*
*
