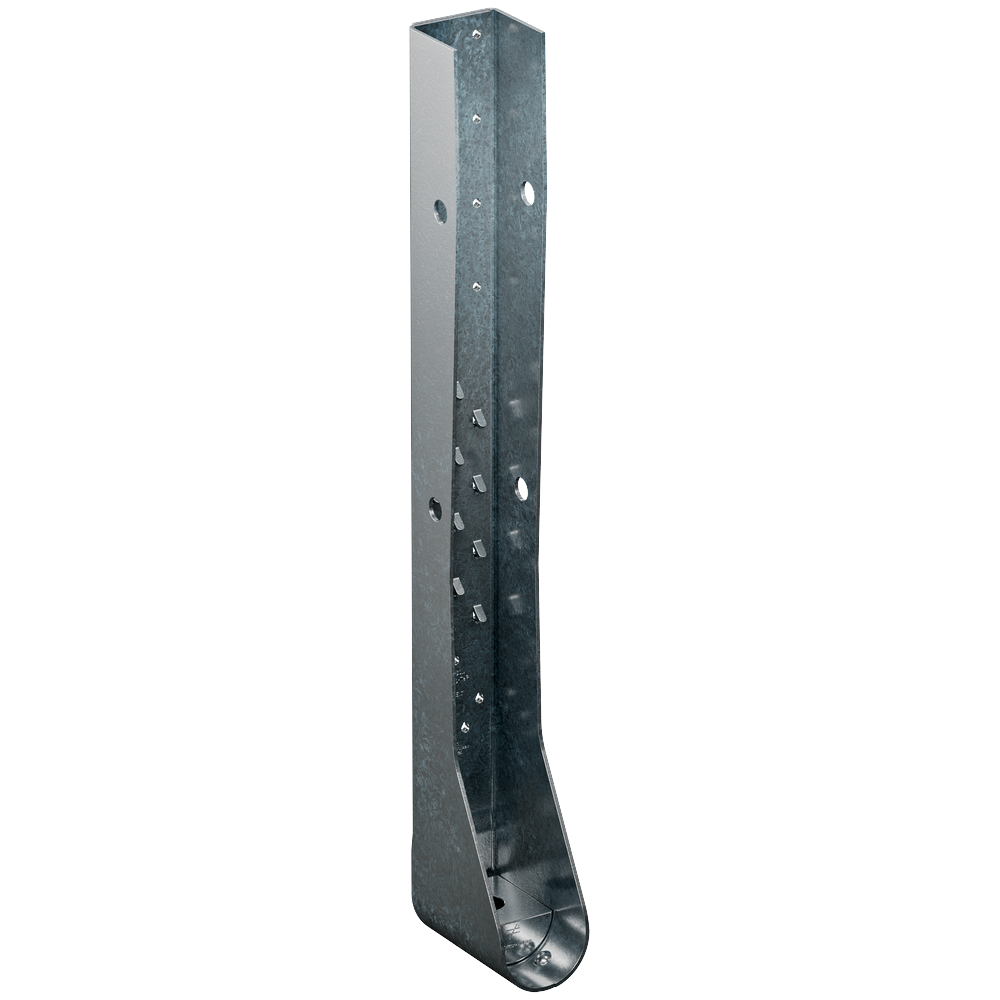

Simpson HDUE 27-7/8" Galvanized Predeflected Holdown with Strong-Drive SDS Screws

Mfr.: Simpson Strong-Tie
Item #: I093088
Mfr. #: HDUE17-SDS4.5
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $183.47
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

Galvanized predeflected holdown designed for high-capacity tension loads. Includes Strong-Drive SDS Heavy-Duty Connector screws and crescent washer.
  • 27-7/8 inch height
  • 10 gauge steel
  • Zinc Galvanized, G90 coating
  • 28 screws included

Features

  • Predeflected for easy installation
  • High allowable tension loads up to 17,685 lbs (DF/SP)
  • Designed for use with 1 inch anchor bolt
  • Includes heavy-hex anchor nut for tabulated loads

Includes

  • (28) 1/4 in. x 4-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws

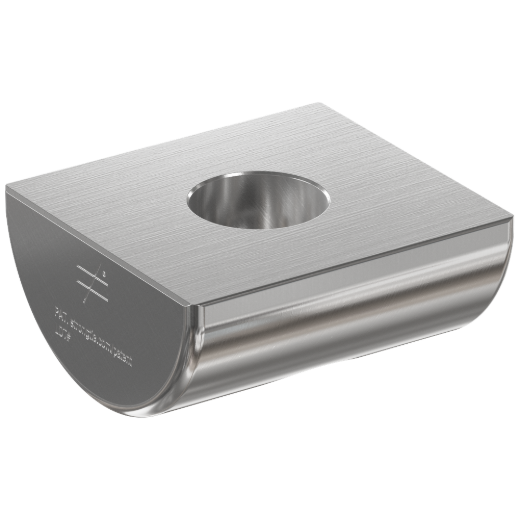

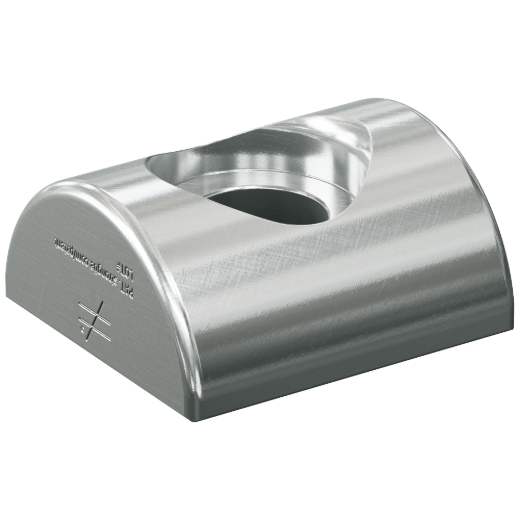

  • (1) crescent washer

Specifications


Model No.HDUE17-SDS4.5Gauge10
Width (W)3 inchHeight (H)27-7/8 inch
Base (B)5-3/16 inchCL1-15/16 inch
SO1-1/2 inchCoatingMaterialZinc Galvanized, G90
Packaging Qty.1
Products specifications
width 3 inch
*
*
*
