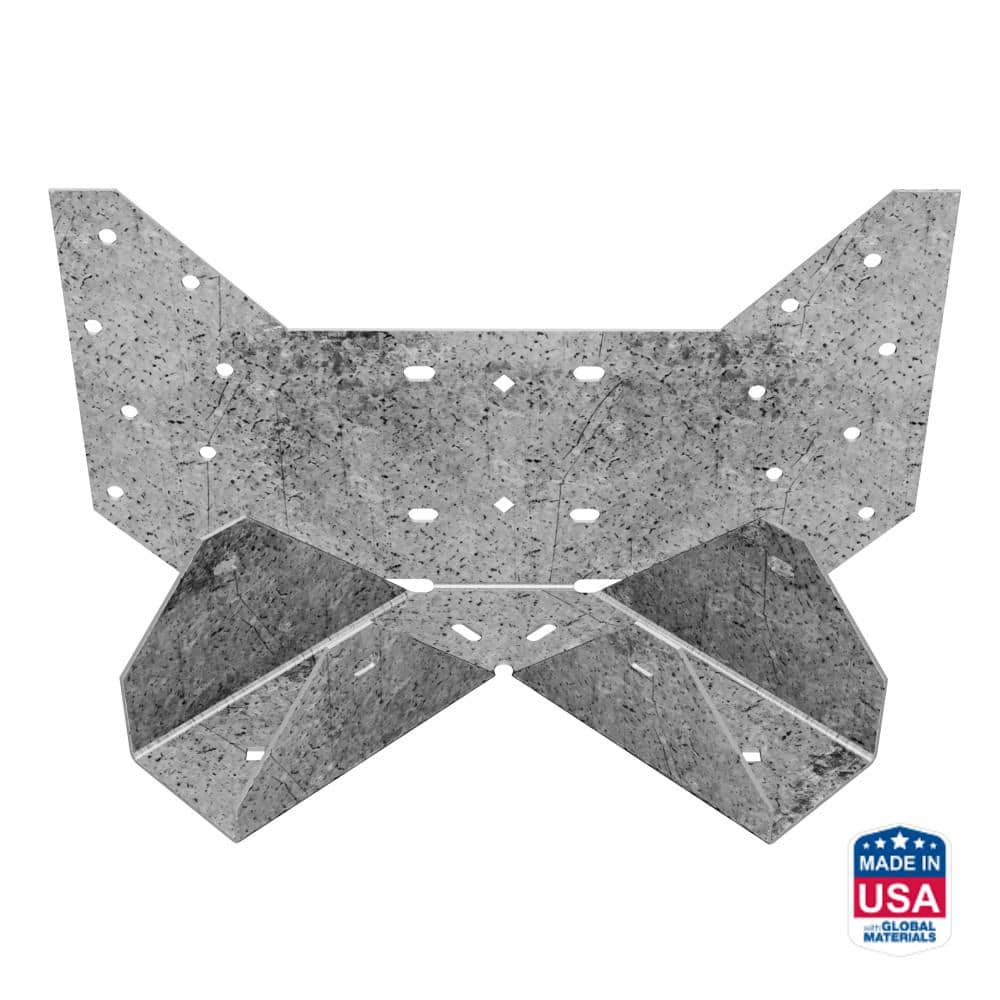

Simpson 2X Hip Ridge Connector

Mfr.: Simpson Strong-Tie
Item #: I093143
Mfr. #: HRC22
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $26.74
i h h

Description

The Simpson Strong-Tie HRC22 is a 2x Hip Ridge Connector designed for secure and efficient hip-to-ridge beam connections, enhancing structural stability in roof framing. This connector is engineered to attach hip rafters to the end of a ridge beam, providing a strong and reliable joint. It is field-slopeable, allowing for downward slopes up to 45 degrees, offering versatility in various construction scenarios. Made from durable galvanized steel, it ensures high load capacity and easy installation, making it a trusted choice for professionals and DIY enthusiasts alike.

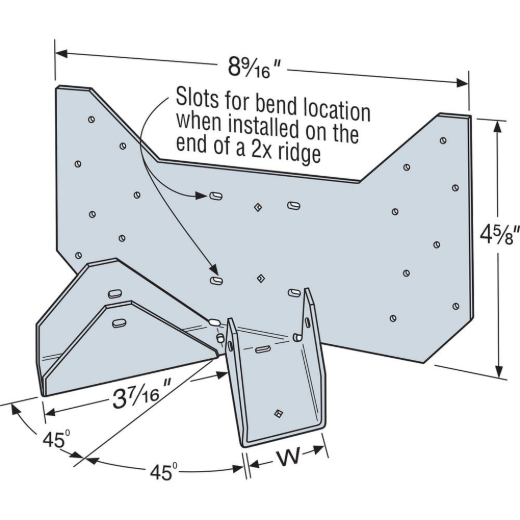

  • Field-Slopeable Design (up to 45)
  • Designed for 2x Nominal Lumber

Features

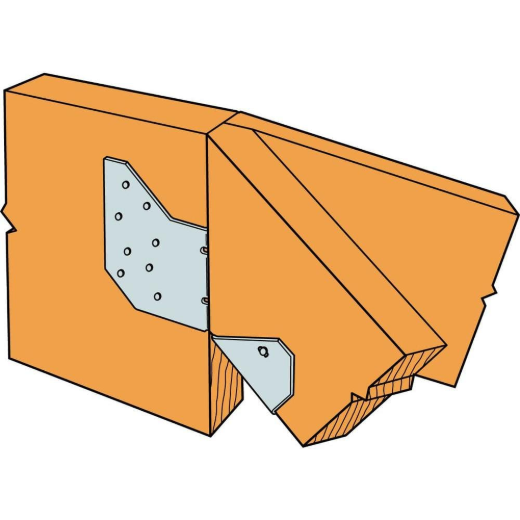

  • Attaches hip roof beams to the end of a ridge beam.
  • Can be sloped downward a maximum of 45 with no reduction in loads.
  • 16-gauge galvanized steel construction for corrosion resistance.
  • Pre-punched holes for quick and precise fastening.

Includes

  • 1x HRC22 Hip-Ridge Connector
Products specifications
Model No. HRC22
Material 16 gauge
Finish Galvanized
Gauge 16
Slope 45 deg max.
*
*
*
