Simpson 2X10 Face Mount Hanger

Mfr.: Simpson Strong-Tie
Item #: I091279
Mfr. #: HGUS210
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $63.05
i h h

Description

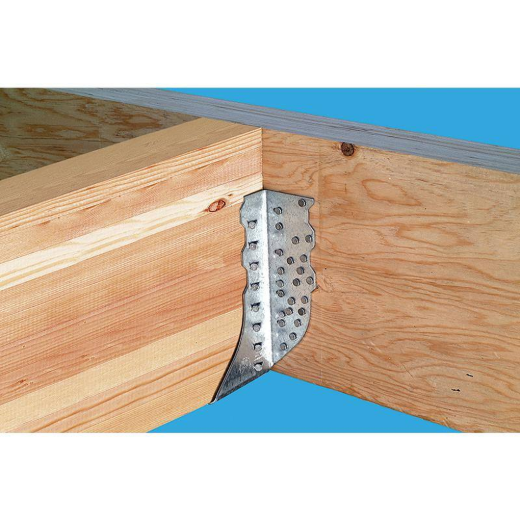

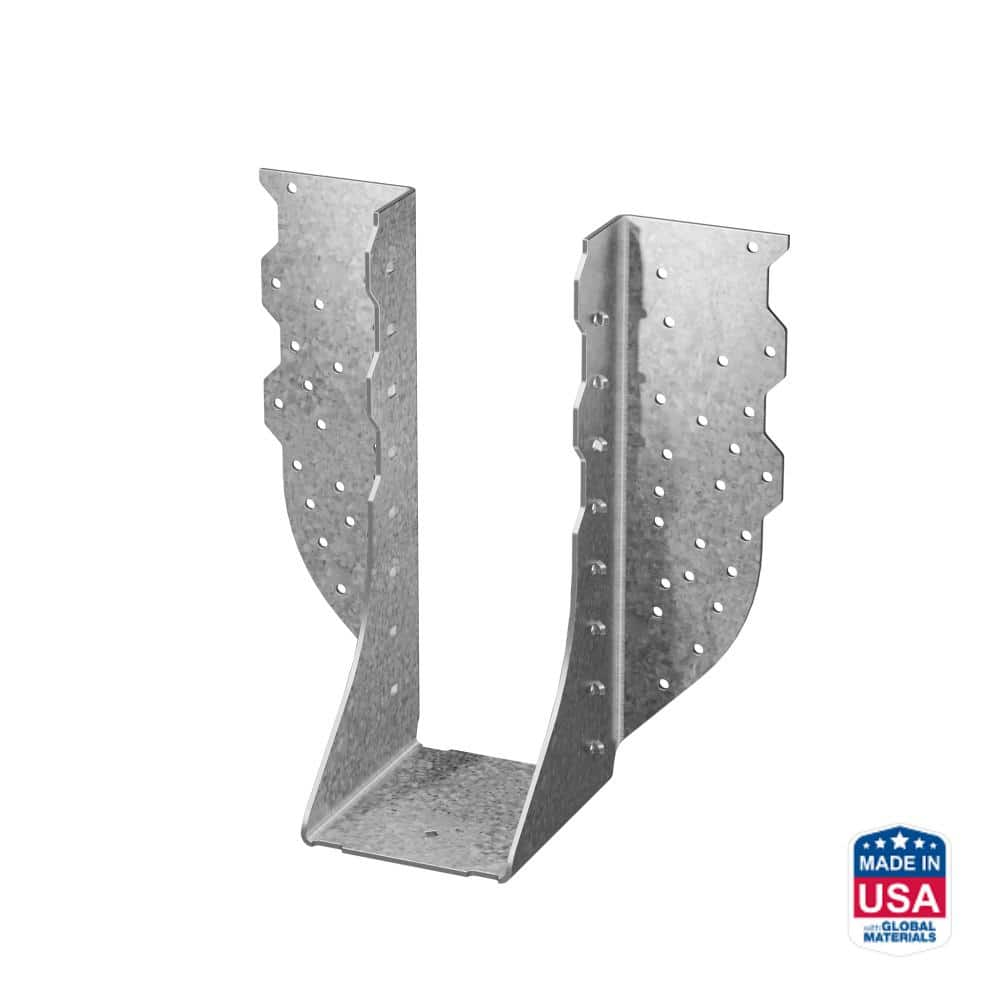

The Simpson Strong-Tie HGUS210 is a high-capacity face-mount joist hanger designed for demanding structural girder and beam applications. It features an innovative double-shear nailing design that distributes loads through two points on each nail for superior strength and stability. Manufactured from heavy-duty 12-gauge galvanized steel, this hanger provides reliable, long-term performance for residential and commercial construction projects.
  • Double-Shear Nailing
  • G90 Galvanized Finish

Features

  • Engineered for extra-heavy load capacity in girder-to-header connections.
  • Double-shear nailing increases strength by allowing fewer nails and standard fastener sizes.
  • Value-engineered design offers high performance at an economical price point.
  • Constructed from 12-gauge steel for maximum durability and structural integrity.

Includes

  • (1) HGUS210 2x10 Face Mount Hanger
Products specifications
Model Number HGUS210
Joist Size 2x10
Material 12-Gauge Steel
Finish G90 Galvanized
Hanger Type Face Mount
Internal Width 1-5/8 inch
Height 9-1/8 inch
Series HGUS Heavy Girder
Fastening Double-Shear Nailing
*
*
*
