Simpson 2X10 Face Mount Joist Hanger Zmax

Mfr.: Simpson Strong-Tie
Item #: I091455
Mfr. #: HU210Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $21.97
i h h

Description

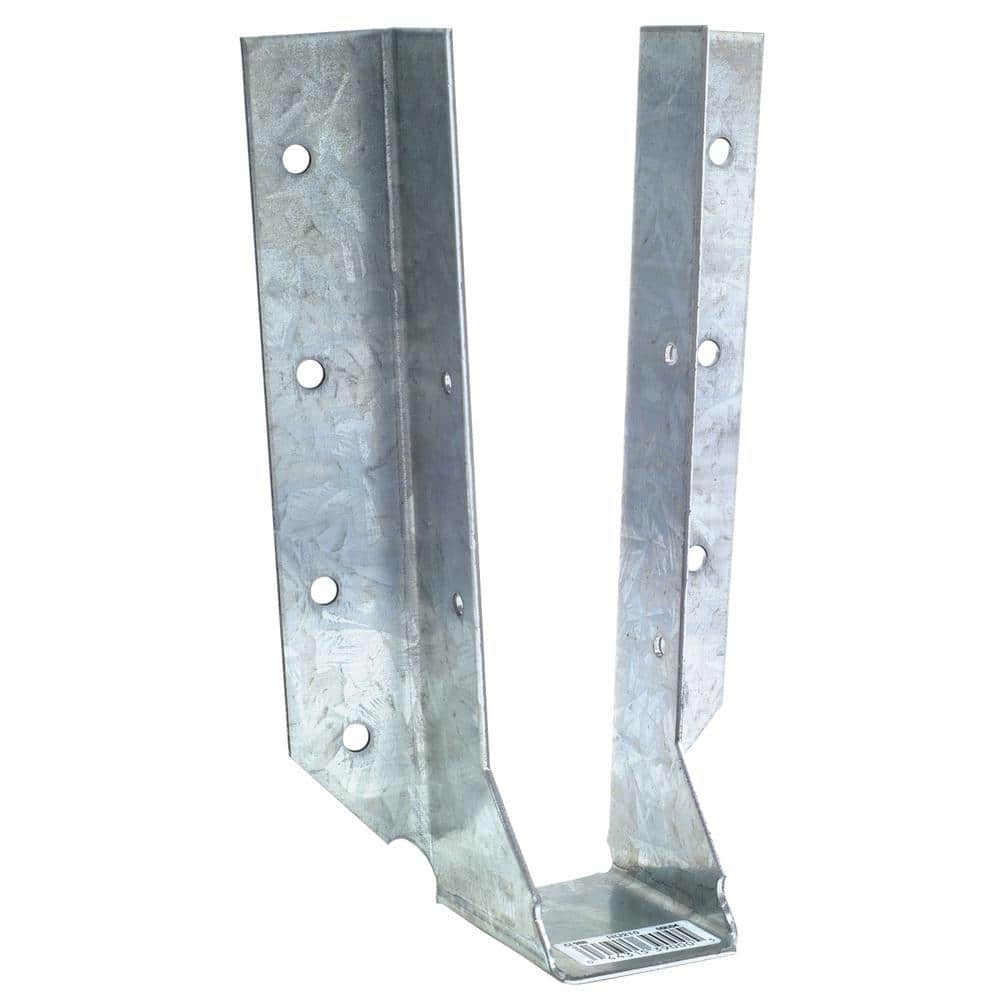

The Simpson Strong-Tie HU210Z is a heavy-duty face-mount joist hanger designed for 2x10 lumber in applications requiring superior strength and safety factors. This high-capacity connector features a ZMAX galvanized finish, providing enhanced corrosion protection for both interior and exterior projects, including those using treated lumber. Its robust 14-gauge steel construction ensures durability and structural integrity for demanding framing needs.
  • Heavy-duty 14-gauge steel construction
  • ZMAX coating for superior corrosion resistance

Features

  • Includes triangular holes that can be filled to achieve maximum load values
  • Tested, load-rated, and code compliant for structural safety
  • Suitable for use with solid sawn lumber and engineered wood products

Includes

  • (1) HU210Z Face-Mount Joist Hanger
Products specifications
Material Carbon Steel
Finish ZMAX Galvanized
Thickness 14 Gauge
Joist Size 2x10
Width (W) 1-9/16 inch
Height (H) 7-1/8 inch
Base (B) 2-1/4 inch
Fasteners (Face) (8) 0.162 inch x 3-1/2 inch Nails
Fasteners (Joist) (4) 0.148 inch x 1-1/2 inch Nails
Code Compliance ICC-ES ESR-2552
*
*
*
