Simpson 2X10 Top Flange Face Mount Hanger HU210TF

Mfr.: Simpson Strong-Tie
Item #: I091454
Mfr. #: HU210TF
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $47.84
i h h

Description

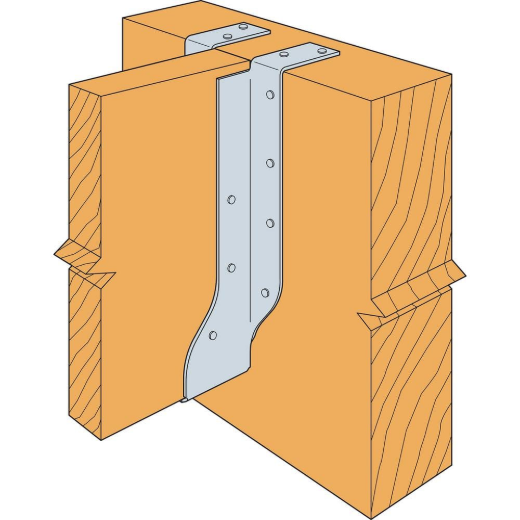

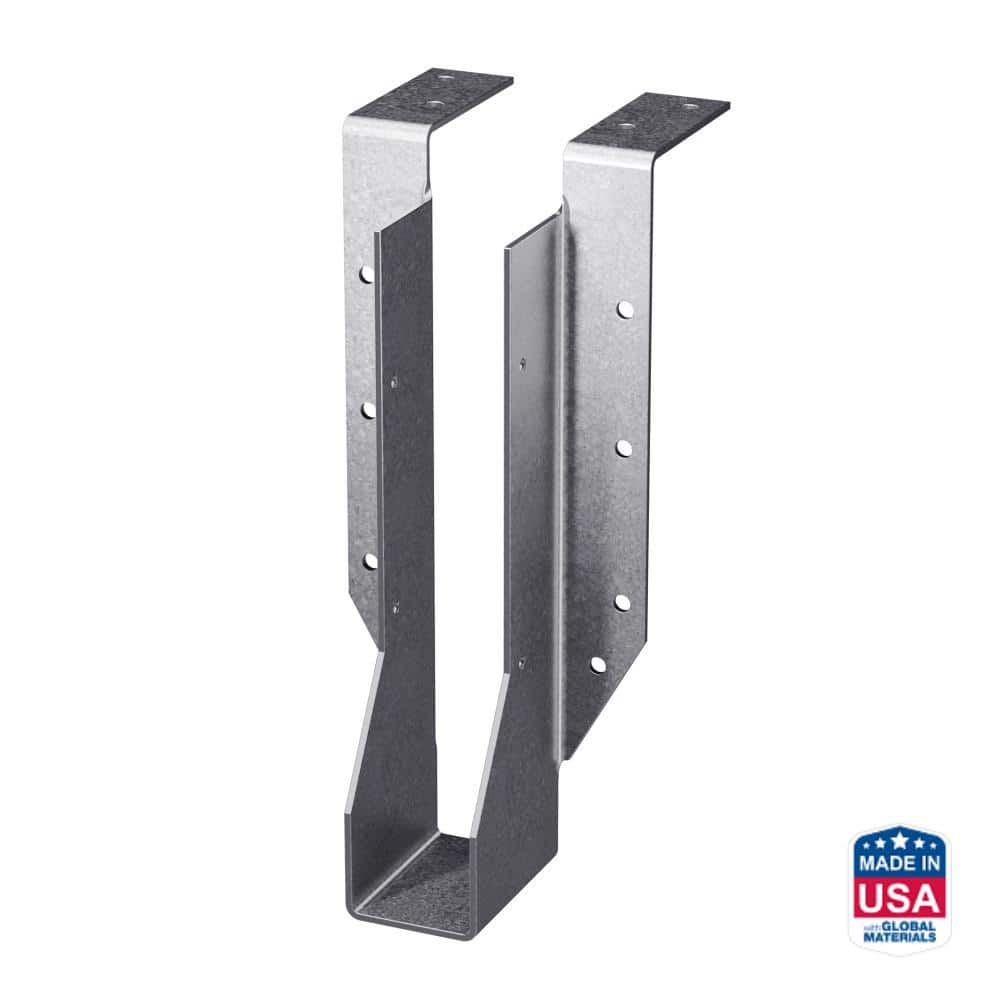

The Simpson Strong-Tie HU210TF is a heavy-duty top-flange joist hanger engineered for robust structural connections in residential and commercial projects. As part of the HUTF series, this hybrid hanger combines the advantages of face-mount and top-mount designs to provide superior support for 2x10 solid sawn lumber. Its 12-gauge galvanized steel construction ensures exceptional strength and resistance to corrosion in various environments. The design features face-nailing capabilities, allowing for a secure and stable attachment to the header or ledger.
  • Hybrid Top-Flange Design
  • 12-Gauge Carbon Steel
  • G90 Galvanized Coating

Features

  • Combines face-mount and top-mount advantages for increased versatility and load capacity.
  • Can be skewed or sloped up to 45 to accommodate complex framing requirements.
  • Tested, load-rated, and code-compliant for reliable structural performance.

Includes

  • (1) HU210TF Top-Flange Hanger
Products specifications
Model Number HU210TF
Joist Size 2x10
Material 12-Gauge Carbon Steel
Finish G90 Galvanized
Height 9-1/8 inch
Width 1-9/16 inch
Face Fasteners (12) 0.162 x 3-1/2 Nails
Joist Fasteners (4) 0.148 x 1-1/2 Nails
Min Header Size 3-1/2 inch
*
*
*
