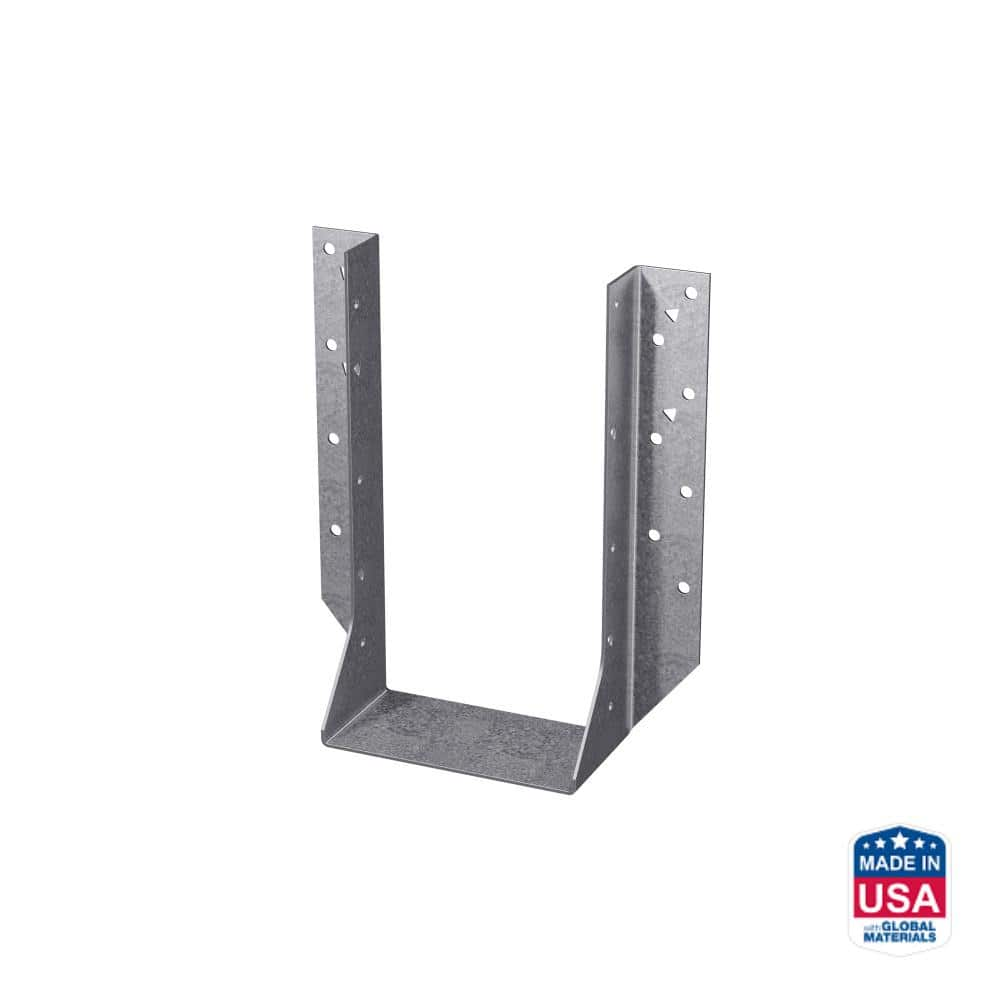

Simpson 2X10 Triple Face-Mount Hanger

Mfr.: Simpson Strong-Tie
Item #: I091450
Mfr. #: HU210-3
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $50.73
i h h

Description

The Simpson Strong-Tie HU210-3 is a heavy-duty face-mount hanger engineered for high-load structural applications. It is specifically designed to support triple 2x10 joists, providing robust and reliable connections in both residential and commercial projects. This 14-gauge steel connector features a G90 galvanized finish for standard corrosion protection in dry environments.
  • G90 Galvanized Finish
  • 14-Gauge Carbon Steel

Features

  • Includes both round and triangular holes; filling triangular holes allows for maximum load capacity.
  • Versatile design suitable for solid sawn lumber, engineered wood, and cold-formed steel.
  • Code compliant and load-tested to meet rigorous building safety and structural standards.

Includes

  • (1) Triple 2x10 Face-Mount Joist Hanger
Products specifications
Joist Size Triple 2x10
Material 14-Gauge Carbon Steel
Finish G90 Galvanized
Hanger Width 4-11/16 inch
Hanger Height 8-9/16 inch
Base Depth 2-1/2 inch
Face Fasteners 18 - 0.162 inch x 3-1/2 inch Nails
Joist Fasteners 10 - 0.148 inch x 3 inch Nails
*
*
*
