Simpson 2X12 Top Flange Face Mount Hanger

Mfr.: Simpson Strong-Tie
Item #: I091461
Mfr. #: HU212TF
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $55.08
i h h

Description

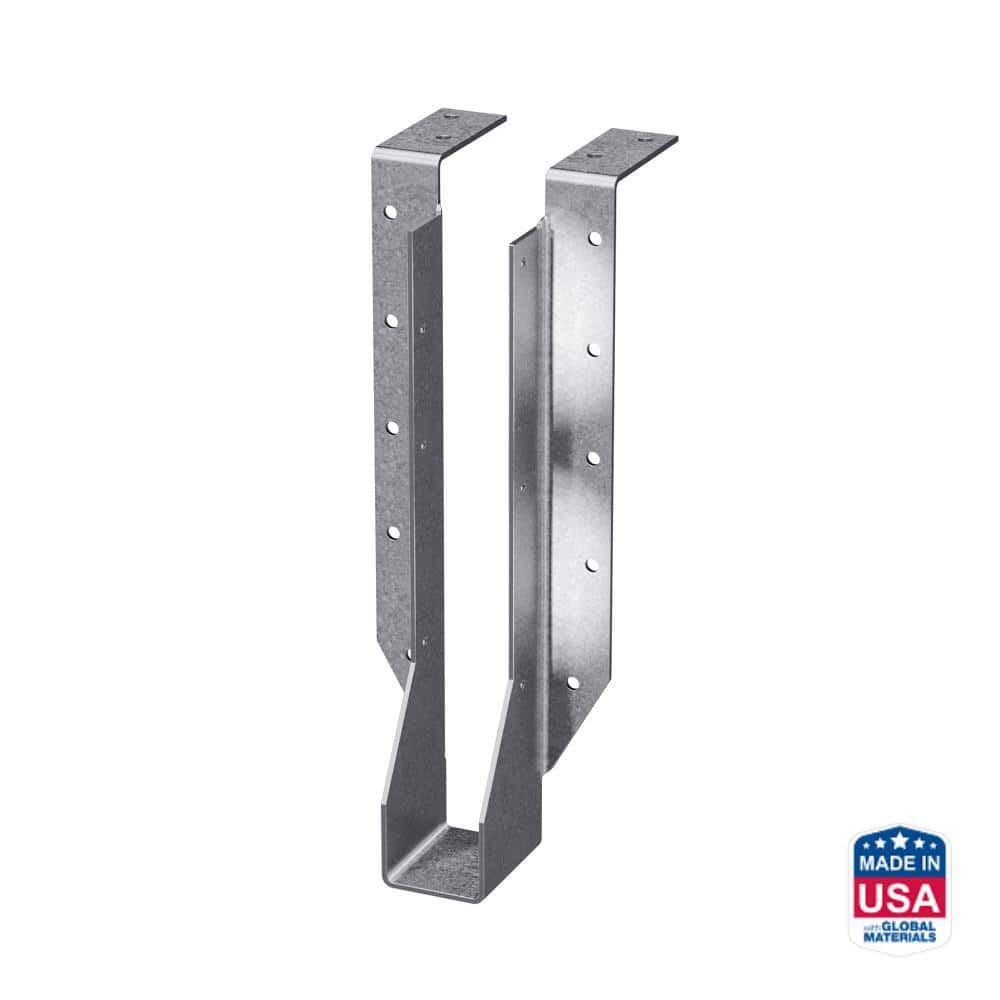

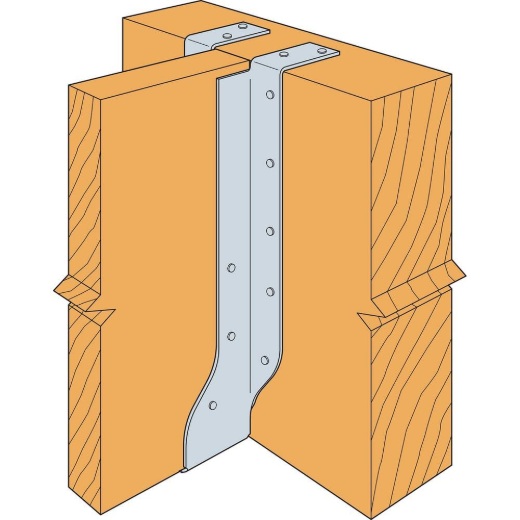

The Simpson Strong-Tie HU212TF is a heavy-duty, 12-gauge galvanized top-flange joist hanger designed for 2x12 lumber. It combines the benefits of face-mount and top-mount hangers, offering robust connections and versatile installation options. This hanger is ideal for a wide range of applications, including residential and commercial floor joists, roof rafter connections, and deck framing, providing strong and lasting support.
  • Hybrid Design
  • Durable Galvanized Steel Construction

Features

  • Integrates face-mount and top-mount hanger advantages for robust connections.
  • Made from 12-gauge galvanized steel for exceptional strength and corrosion resistance.
  • Can be skewed or sloped up to 45 to accommodate various framing requirements.

Includes

  • 1 x Galvanized Top-Flange Joist Hanger for 2x12 lumber.
Products specifications
Joist size 2 inch X 12 inch
Material Carbon Steel
Finish G90 Galvanized
Thickness 12 Gauge
Height 11 inch
Width 1-9/16 inch
For Treated Lumber No
*
*
*
