Simpson 2X12 Top Flange Joist Hanger ZMAX

Mfr.: Simpson Strong-Tie
Item #: I091777
Mfr. #: LB212AZ
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $13.74
i h h

Description

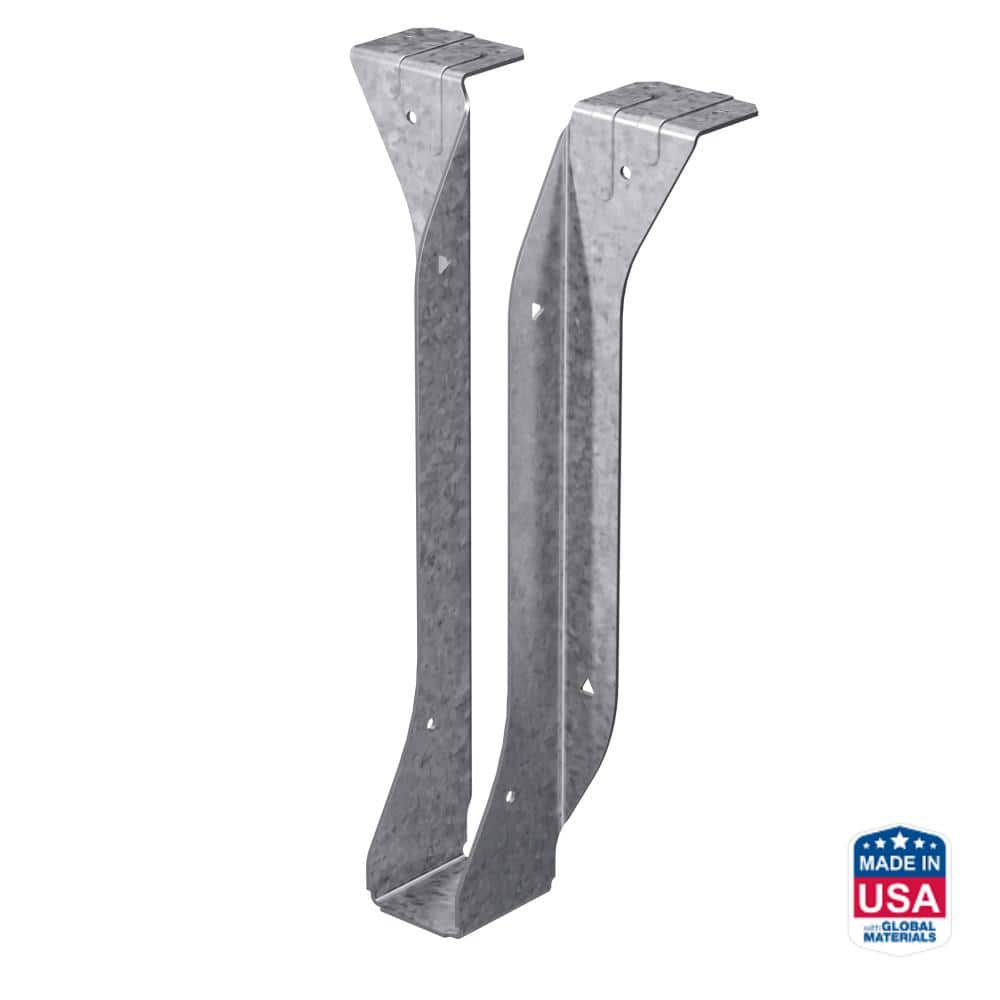

The Simpson Strong-Tie LB212AZ is a light-duty, top-flange joist hanger designed specifically for solid sawn lumber applications. This cost-effective solution provides reliable support for light-to-medium loads while offering essential uplift protection. Featuring a durable ZMAX finish, it is engineered for superior corrosion resistance, making it an excellent choice for various wood framing projects, including floor and roof framing.
  • Durable ZMAX Finish for corrosion resistance

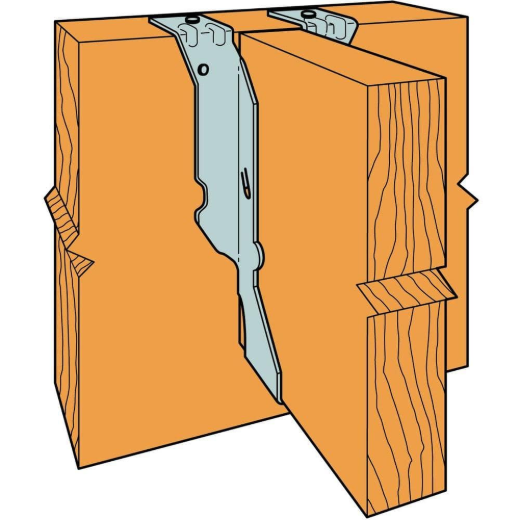

  • Top-flange design for secure joist-to-beam connections

Features

  • Unique two-level embossment for added top flange stiffness
  • Acceptable for weld-on applications

Includes

  • 1 x 2x12 Top Flange Joist Hanger
Products specifications
Manufacturer Simpson Strong-Tie
Model LB212AZ
Joist Size 2x12
Finish ZMAX
Material Carbon Steel
Thickness 14 Gauge
Height 11-1/8 inch
Width 1-9/16 inch
Treated Lumber Compatible Yes
*
*
*
