Simpson THA - 1-5/8" x 13-5/16" Adjustable Truss Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091928
Mfr. #: THA213
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $8.92
i h h

Description

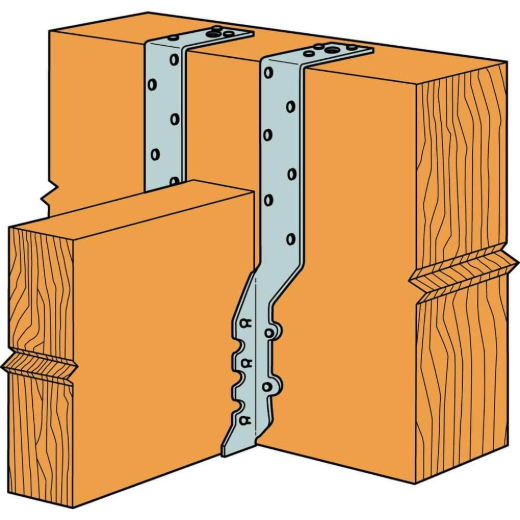

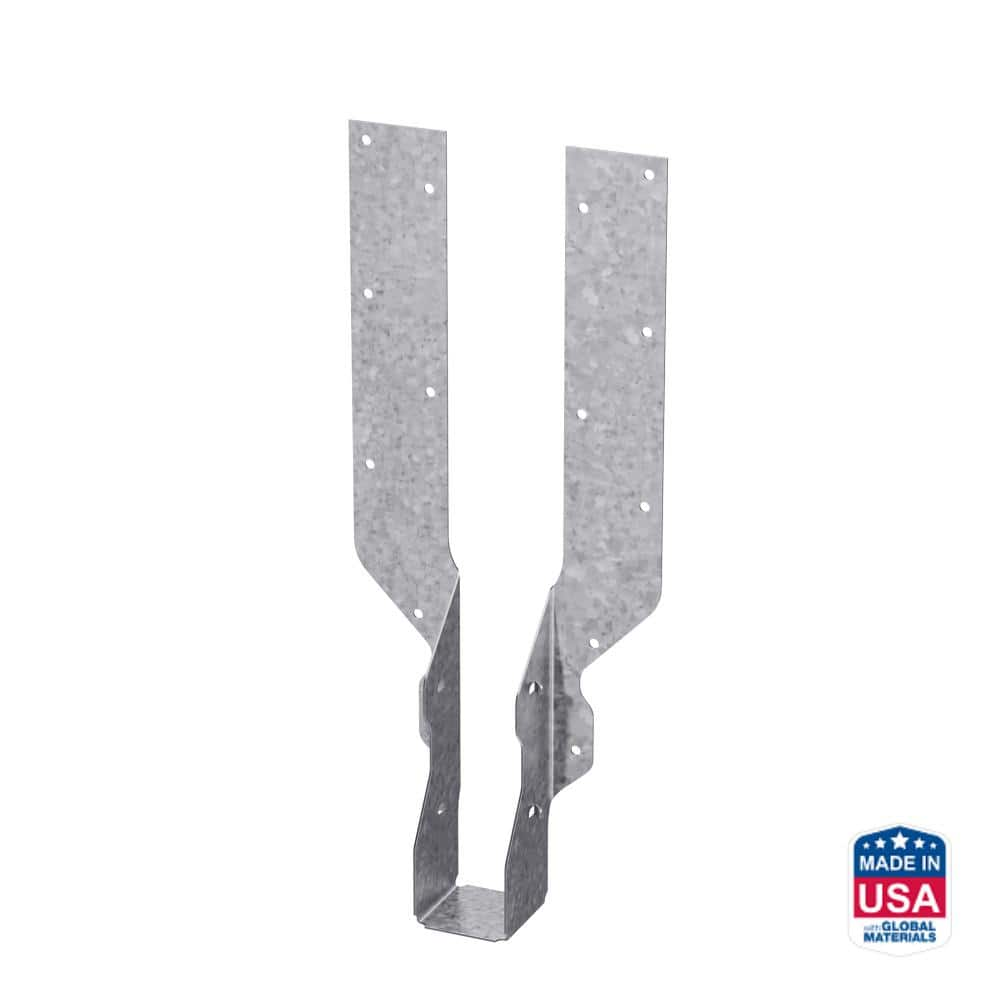

The Simpson Strong-Tie THA213 is a versatile, field-adjustable truss hanger designed to support trusses and beams in wood-framed structures. Featuring extra-long straps that can be field-formed, this hanger provides the convenience of a top-flange installation while allowing for precise height adjustability. Its durable G90 galvanized finish offers enhanced corrosion resistance, and the integrated PAN nailing pattern helps reduce the splitting of truss bottom chords.
  • Extra-long straps for height adjustability
  • G90 Galvanized finish for corrosion resistance

Features

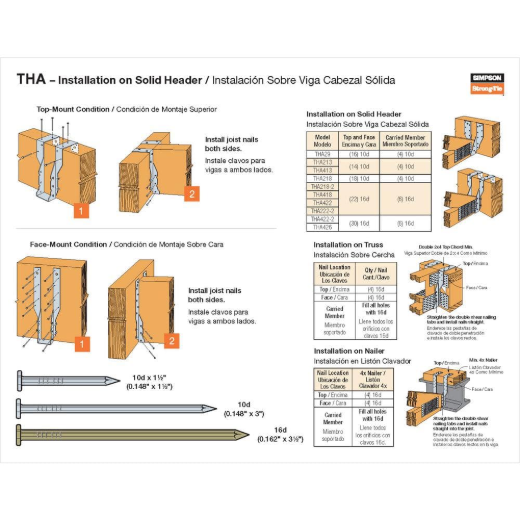

  • Versatile installation options: usable as a top-flange or face-mount hanger
  • PAN nailing pattern minimizes splitting of truss bottom chords

Includes

  • (1) THA213 Adjustable Truss Hanger
Products specifications
Connector Type Top-Flange Joist Hanger
Country of Origin USA (subject to change)
Finish / Coating Galvanized (G90)
Joist / Lumber Size 2 in x 13 in
Manufacturer's Warranty Limited Lifetime
Material Galvanized Steel
Mount Style Top-Flange
Series THA
Steel Gauge Refer to Manufacturer
*
*
*
